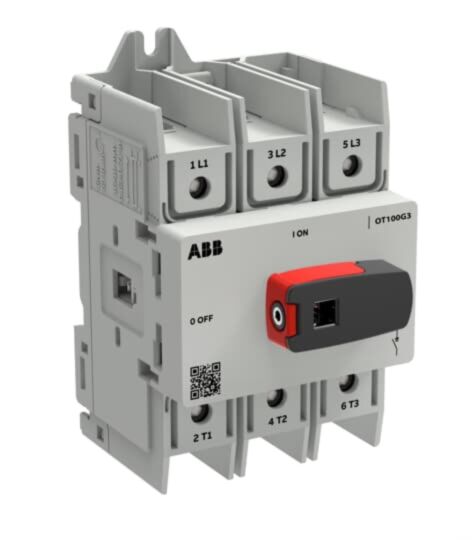

1SCA162507R1001 ABB OT100G3-3BS OT Plus 3 Pole 100A Panel Mounted Switch Disconnector
MPN: 1SCA162507R1001
Alt. SKU: OT100G3-3BS
Special Price
£61.01
£50.84
Regular Price
£93.86
Why Choose the 1SCA162507R1001
The ABB 1SCA162507R1001 is a 3 pole switch disconnector from the OT Plus range, designed for operation up to 800 V AC and rated for 100 A permanent current. Suitable for main or service switching applications, it is engineered to reliably manage demanding distribution board installations.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162507R1001
- Manufacturer part number: 1SCA162507R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 100 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Suitable for distribution board installation: Yes
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Number of switches: Yes
Downloads
- Datasheet for 1SCA162507R1001
- Installation instructions for 1SCA162507R1001
- Enviromental product declaration for 1SCA162507R1001
- EU Declaration of Conformity for 1SCA162507R1001
- REACh declaration for 1SCA162507R1001
Trusted By Customers Worldwide
"Rated for 2.5 kA short-time withstand and 50 kA conditioned short-circuit current." Engineering note
Frequently Asked Questions
Is the ABB 1SCA162507R1001 suitable for use as a main switch?
Yes, it can be used as a main switch or as a maintenance or service switch.
What is the maximum operating voltage of this switch disconnector?
The maximum rated operation voltage is 800 VAC.
Can this switch disconnector be installed in a distribution board?
Yes, it is suitable for distribution board installation.
| Alternative Product SKU | OT100G3-3BS |
|---|---|
| Manufacturer Part Number | 1SCA162507R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925400 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Version as main switch | Yes |
| Version as maintenance-/service switch | Yes |
| Suitable for distribution board installation | Yes |
| Rated permanent current Iu | 100A |
| Amperage | 100A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 70mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
