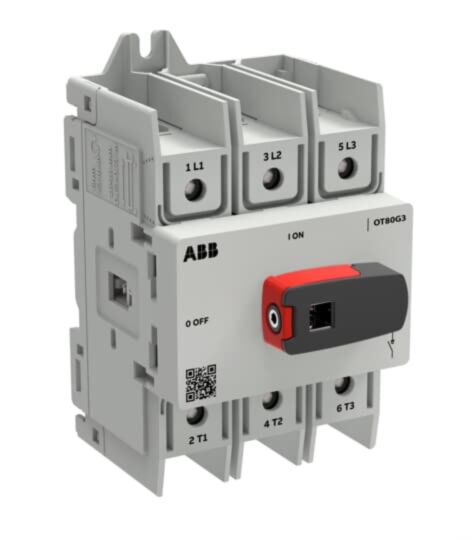

1SCA162509R1001 ABB OT80G3-3BS OT Plus 3 Pole 80A Panel Mounted Switch Disconnector
MPN: 1SCA162509R1001
Alt. SKU: OT80G3-3BS
Special Price
£59.08
£49.23
Regular Price
£90.89
Why Choose the 1SCA162509R1001
The ABB 1SCA162509R1001 is a 3 pole switch disconnector from the OT Plus range, offering 80 A rated current and operation up to 800 V AC.
Suitable for isolating and switching applications, it delivers a 50 kA short-circuit rating and reliable short-time withstand capability at 2.5 kA.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162509R1001
- Manufacturer part number: 1SCA162509R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 80 A
- Rated permanent current at AC-21, 400 V: 80 A
- Rated permanent current at AC-23, 400 V: 80 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 45 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 45 kW
Downloads
- Datasheet for 1SCA162509R1001
- Installation instructions for 1SCA162509R1001
- Enviromental product declaration for 1SCA162509R1001
- EU Declaration of Conformity for 1SCA162509R1001
- REACh declaration for 1SCA162509R1001
Trusted By Customers Worldwide
"Designed for reliable performance in isolation and switching duties at 80 A and 800 V AC." Engineering note
Frequently Asked Questions
What is the rated operating voltage of the 1SCA162509R1001 switch disconnector?
The rated operating voltage is up to 800 V AC.
How many poles does this switch disconnector have?
It is a 3 pole device.
What is the rated permanent current at 400 V AC?
The rated permanent current is 80 A at both AC-21 and AC-23 at 400 V.
What short-circuit capability does this device provide?
It is rated for 50 kA conditioned short-circuit current and 2.5 kA short-time withstand current.
What is the switching power at 400 V?
The switching power is 45 kW at 400 V.
| Alternative Product SKU | OT80G3-3BS |
|---|---|
| Manufacturer Part Number | 1SCA162509R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925424 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 45kW |
| Rated permanent current at AC-21, 400 V | 80A |
| Switching power at 400 V | 45kW |
| Rated permanent current at AC-23, 400 V | 80A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 80A |
| Amperage | 80A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 70mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
