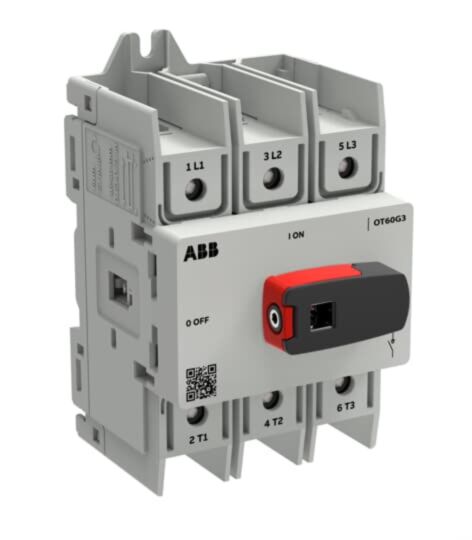

1SCA162540R1001 ABB OT60G3-3BS OT Plus 3 Pole 63A Panel Mounted Switch Disconnector
MPN: 1SCA162540R1001
Alt. SKU: OT60G3-3BS
Special Price
£78.48
£65.40
Regular Price
£120.74
Why Choose the 1SCA162540R1001
The ABB 1SCA162540R1001 is a 3 pole switch disconnector from the OT Plus range, rated for 63 A and capable of handling operating voltages up to 800 V.
Designed for reliable circuit isolation, it features a short-circuit rating of 50 kA and a short-time withstand current of 2.5 kA.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162540R1001
- Manufacturer part number: 1SCA162540R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 63 A
- Rated permanent current at AC-21, 400 V: 63 A
- Rated permanent current at AC-23, 400 V: 63 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 30 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 30 kW
Downloads
- Datasheet for 1SCA162540R1001
- Installation instructions for 1SCA162540R1001
- Enviromental product declaration for 1SCA162540R1001
- EU Declaration of Conformity for 1SCA162540R1001
- REACh declaration for 1SCA162540R1001
Trusted By Customers Worldwide
"Suitable for use in applications where secure isolation and high short-circuit performance are required." Engineering note
Frequently Asked Questions
What is the rated current of the ABB 1SCA162540R1001 switch disconnector?
The switch disconnector is rated for 63 A permanent current.
How many poles does the ABB 1SCA162540R1001 have?
This device is a 3 pole switch disconnector.
What is the maximum operating voltage for this disconnector?
The maximum rated operating voltage is 800 V AC.
What is the short-circuit strength of the 1SCA162540R1001?
It has a conditioned short-circuit rating of 50 kA and a short-time withstand current of 2.5 kA.
| Alternative Product SKU | OT60G3-3BS |
|---|---|
| Manufacturer Part Number | 1SCA162540R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925738 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 30kW |
| Rated permanent current at AC-21, 400 V | 63A |
| Switching power at 400 V | 30kW |
| Rated permanent current at AC-23, 400 V | 63A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 63A |
| Amperage | 63A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 70mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
