Pizzato Position Switches for Heavy Applications at LED Controls
Pizzato Position Switches - also known as limit switches - are designed to detect when a moving machine part reaches a specific position. They are widely used across manufacturing, packaging, materials handling, automotive production, food processing and many other industries, and are available now from LED Controls.
Pizzato is recognised worldwide for producing high-quality Position Switches that perform reliably even in demanding environments. Their heavy-duty offering is made specifically for harsh industrial applications where durability, flexibility and long service life are essential.
Choose the right Position Switch for your Heavy Application:
| Series | Housing Material | Conduit Entries | Typical Use |
|---|---|---|---|
| FD | Metal | 1 x threaded entry | General heavy-duty industrial applications |

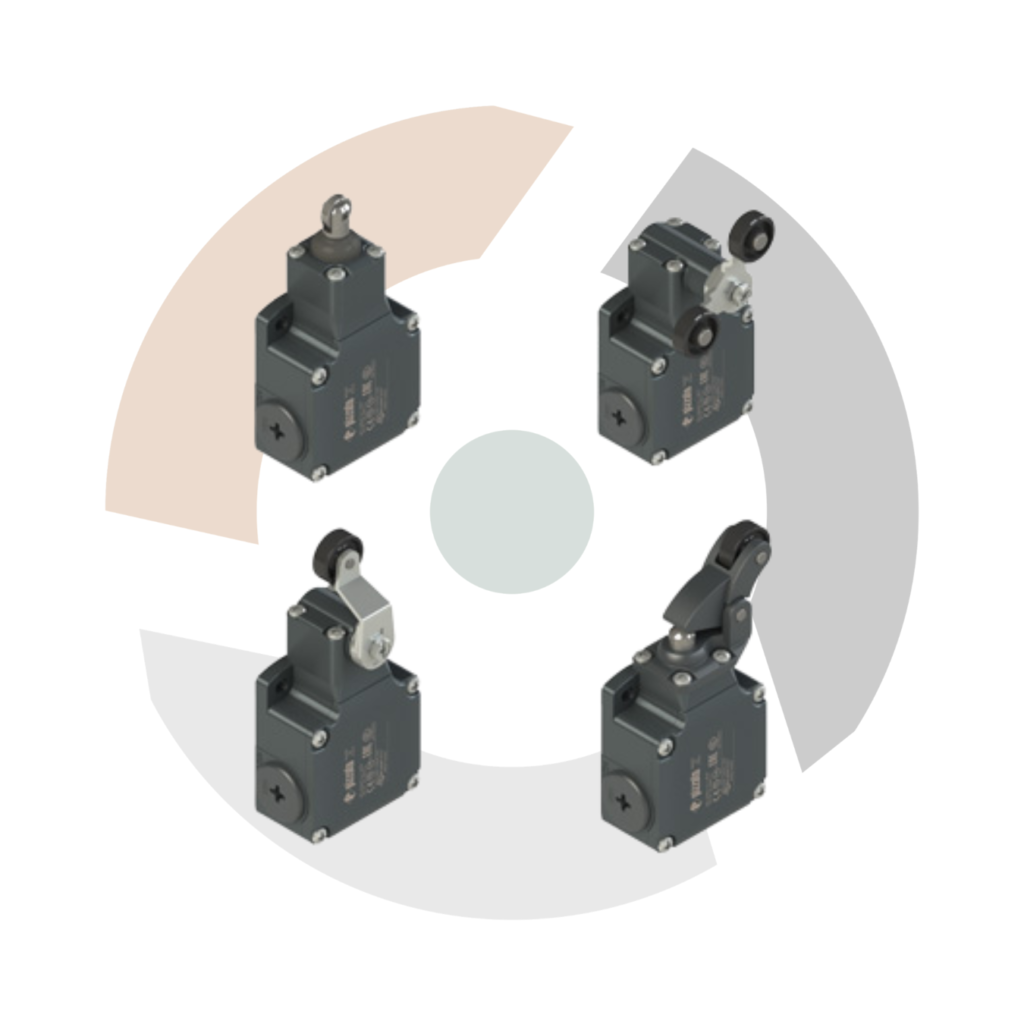

| FL | Metal | 3 x threaded entries | Applications requiring loop-through wiring or multiple cable connections |

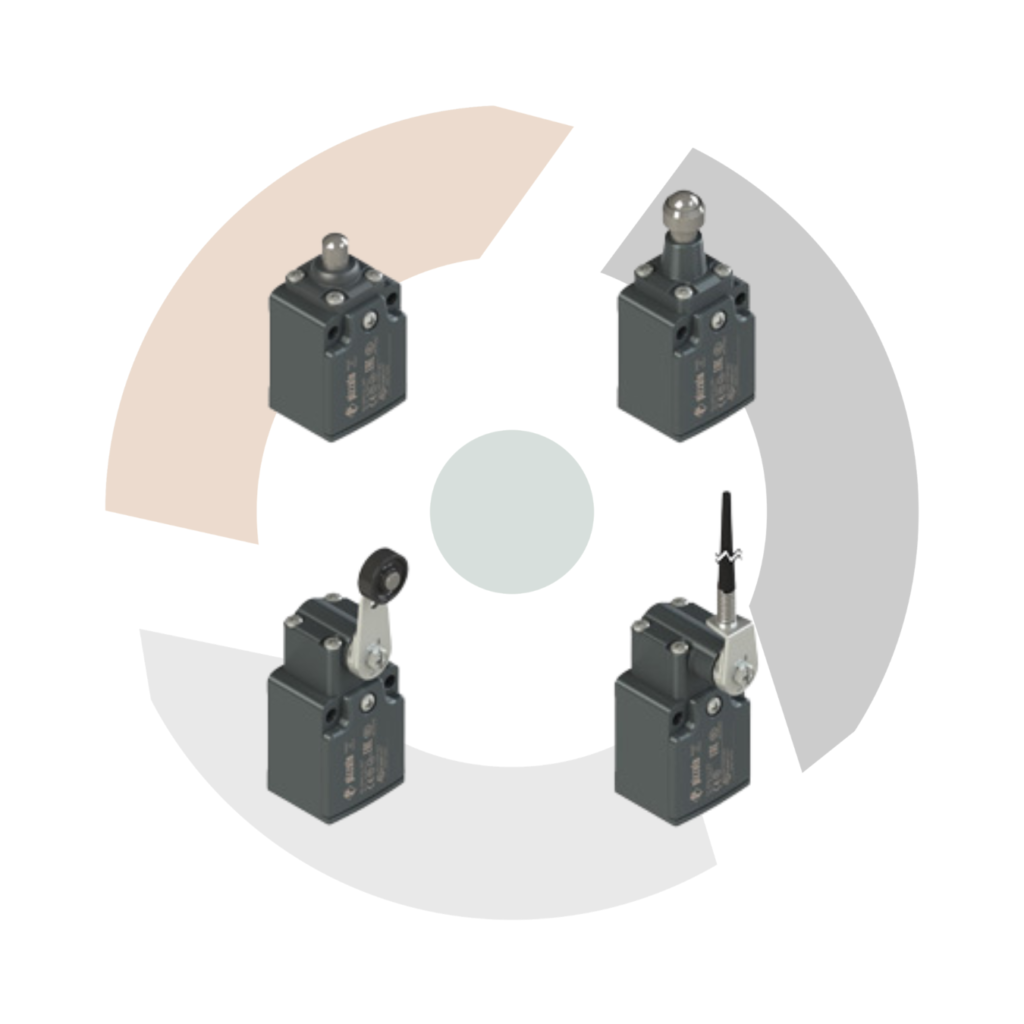

| FC | Metal | 1 x threaded entry | Compact heavy-duty version with a reduced range of contact block options |

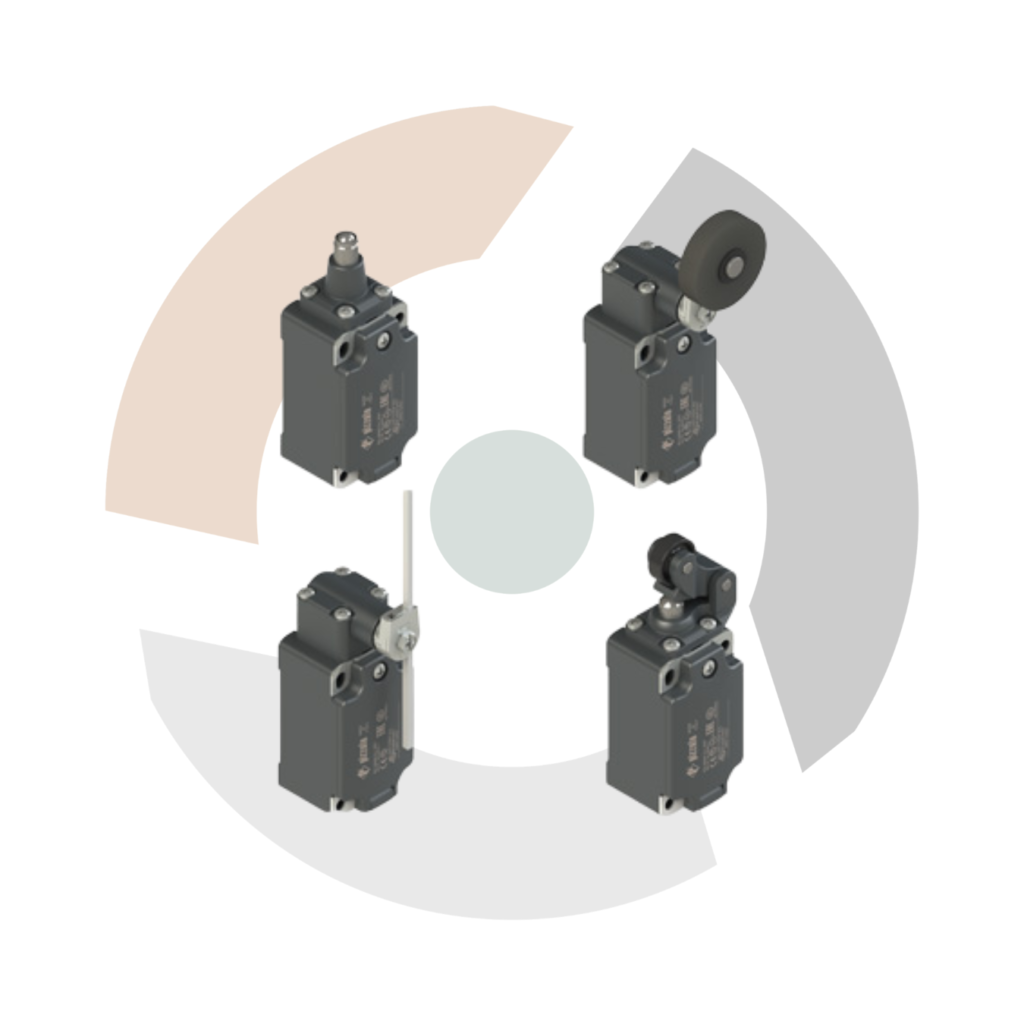

| FP | Technopolymer | 1 x threaded entry | Corrosion-resistant applications and weight-sensitive installations |
Key Features
IP67 Protection
An IP67 rating means the switch is protected against dust ingress and temporary immersion in water. This helps ensure reliable operation in demanding industrial environments.
Adjustable Heads and Levers
Many models allow the operating head to be rotated in 90° increments. Adjustable lever versions can also be set to different angles, making installation easier where space is limited.
Wide Temperature Capability
Special versions can operate in temperatures ranging from -40°C to +80°C, allowing use in cold stores, outdoor installations and other extreme environments.

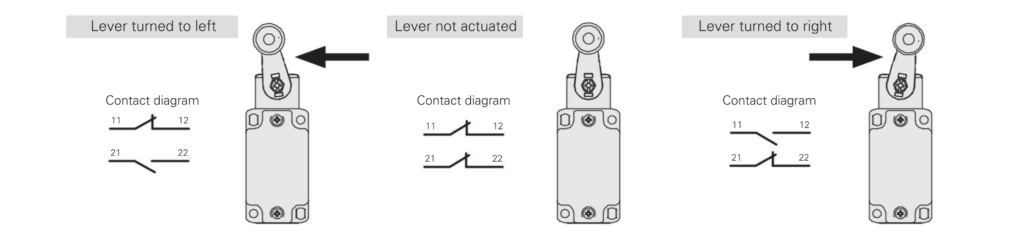

Independent Contacts
The contact block features two NC contacts, both with positive opening, that can be independently switched depending on the lever turning direction.
Corrosion-Resistant Options
Where required, selected models can be supplied with stainless steel external components and stainless steel rollers for increased resistance to aggressive chemicals and saline atmospheres.
Pizzato Position Switches for Heavy Applications from LED Controls
Selecting the correct switch depends largely on the installation environment and wiring requirements.
- FD series for maximum flexibility and configuration options.
- FL series when multiple cable entries simplify wiring.
- FC series when a straightforward heavy-duty solution is required.
- FP series for corrosive, washdown or outdoor environments.
Whatever your system requirements, LED Controls can provide Pizzato Limit switches to suit your needs. Just check the ranges online or get in touch for more information.
