Pizzato CS MP Programmable Safety Modules: Flexible Machine Safety at LED Controls
The Pizzato CS MP Series is a range of programmable multifunction safety modules available from LED Controls. A single CS MP controller can handle several machine safety functions at once, which means reduced wiring, more space in your panels and easier options for future expansion.
Why Choose Pizzato CS MP Programmable Safety Modules?
The CS MP range is designed for machines with low to medium complexity, bridging the gap between traditional safety relays and larger safety PLC systems. Instead of installing multiple individual safety relays, a single CS MP module can perform the equivalent safety functions of up to four conventional electromechanical safety relays, while larger models can manage systems with dozens of safety inputs. Further benefits include:
- Reduced control panel wiring
- Fewer individual safety relays
- Easier commissioning
- Simplified diagnostics
- Greater flexibility when machinery is modified or expanded
- Reduced installation time
- Lower assembly costs
- Simpler long term maintenance
Where are Programmable Safety Modules Used?
Typical applications include:
- Emergency stop circuits

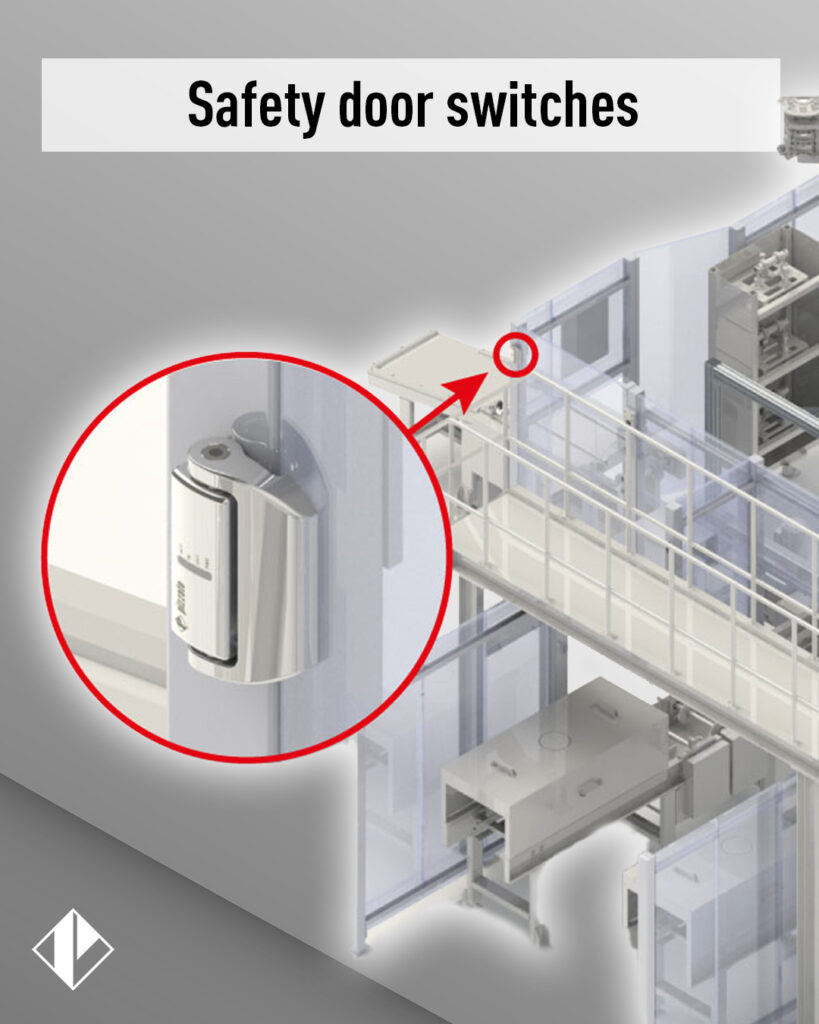

- Guard door monitoring

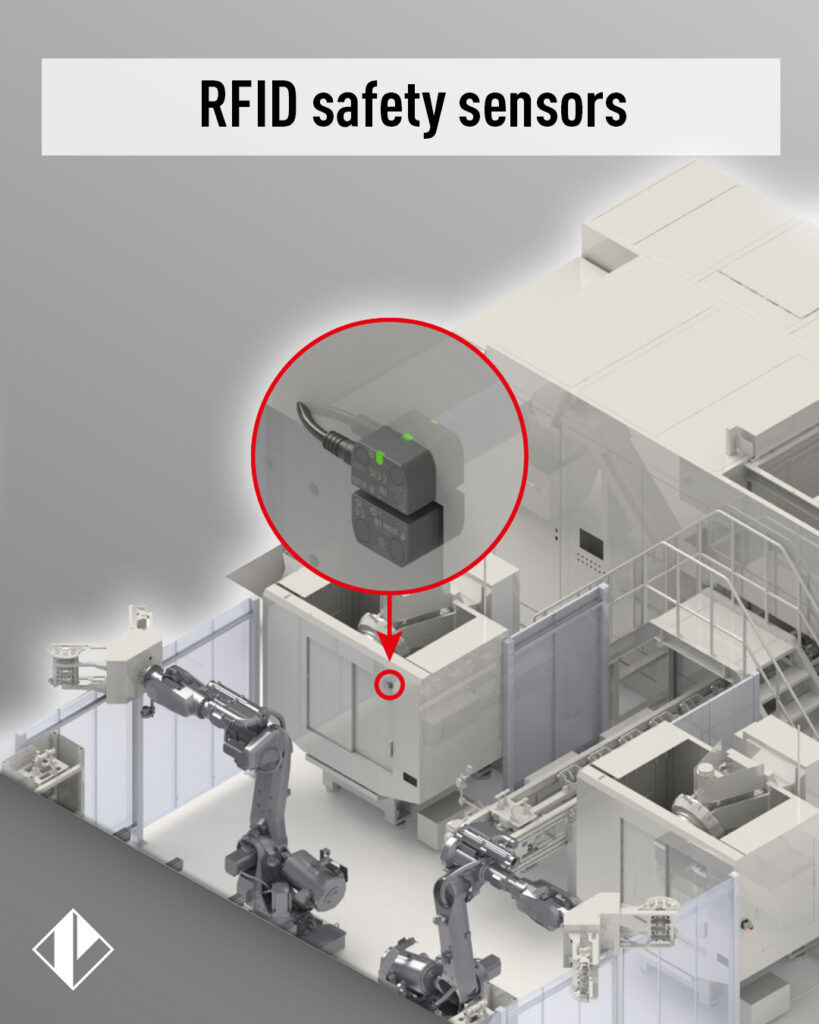

- RFID safety switches
- Safety locking devices
- Light curtains
- Safety mats
- Two-hand control stations
- Speed and frequency monitoring (selected models)
- Analogue safety monitoring (selected models)
The flexibility of the CS MP range makes it suitable for a wide variety of machinery, including:
- Packaging machinery
- Automated production lines
- Conveyor systems
- Robotics
- CNC equipment
- Assembly machinery
- Material handling systems
Because the logic is programmable, future machine upgrades can often be implemented through software changes rather than physical system updates.
Gemnis Studio Makes Configuration Straightforward

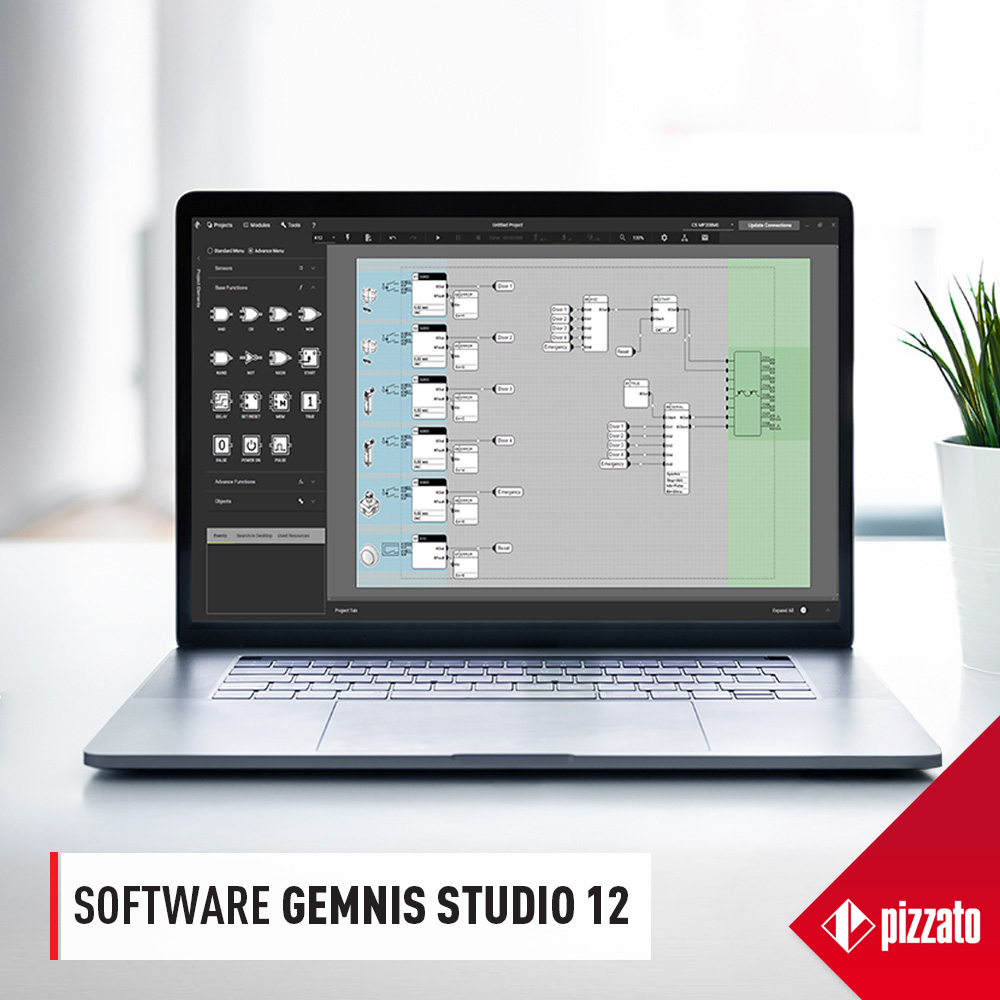

Every CS MP safety module is programmed using Gemnis Studio, Pizzato's graphical programming software. Rather than writing code, you configure safety logic using graphical function blocks before downloading the program directly to the module. Gemnis Studio also provides:
- Offline simulation
- Debugging tools
- USB programming
- Free software licence (registration required)
This makes commissioning quicker while allowing safety logic to be updated as machinery evolves.
Choosing the Right CS MP Module
The CS MP family includes 24 models with different combinations of inputs and outputs. For many applications, the following models provide a useful starting point.
| Model | Best For | Key Features |
|---|---|---|
| CS MP201M0 | Compact machines | 8 safety inputs, relay outputs |
| CS MP202M0 | General automation | 16 safety inputs, 4 PNP safety outputs |
| CS MP205M0 | Motion monitoring | Digital and frequency inputs |
| CS MP207M0 | Process applications | Analogue signal inputs |
| CS MP301M0 | Larger machines | 24 safety inputs and expanded capacity |
| CS MP303M0 | Complex safety systems | 32 safety inputs with programmable logic |
The wider range also includes models offering relay outputs, semiconductor outputs, analogue inputs and frequency monitoring to suit different machine designs.
Why Buy Pizzato from LED Controls?
As an authorised UK-based distributor for Pizzato with 30 years of industry experience, LED Controls can recommend and source the perfect product for your system rapidly and efficiently. We can help you:
- Select the correct CS MP module
- Choose compatible Pizzato safety devices
- Source the complete Gemnis safety solution
- Supply official documentation and technical information
- Support new machine builds and retrofit projects
Browse our Pizzato CS MP range online or contact our technical team for advice on selecting the best module for your application.
