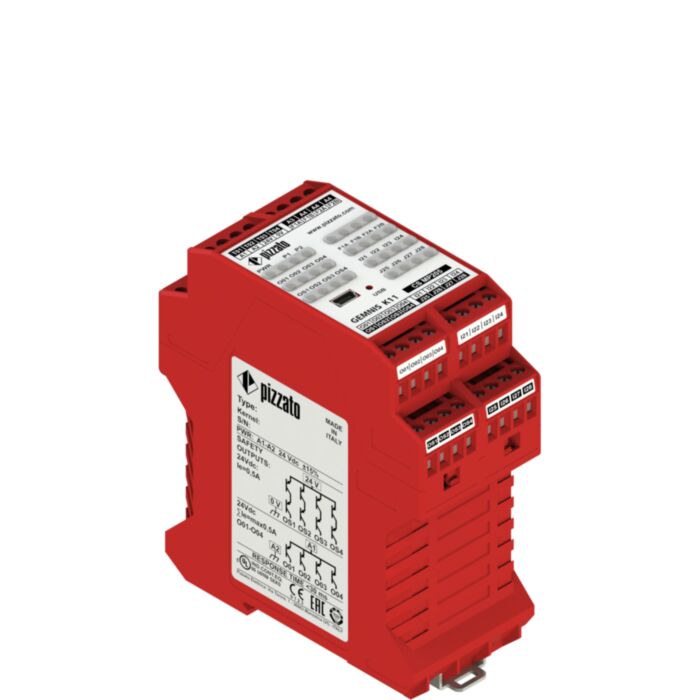

CS MP205M0 Pizzato Programmable multifunction safety module, up to SIL 3, PLe, Category 4 - Gemnis series

Why Choose the Pizzato CS MP205M0 Safety Controller Module?

The Pizzato CS MP205M0 is a high-performance programmable multifunction safety controller from the Gemnis CS MP series, designed for advanced industrial machines requiring flexible and centralized safety logic management. It enables multiple safety functions to be configured within a single device, reducing wiring complexity and improving diagnostic efficiency in modern automation systems.

This safety controller is widely used by machine builders and system integrators to manage devices such as emergency stop circuits, safety gates, interlocked guards, light curtains, and sensors. It is designed for complex safety architectures where high flexibility and reliability are required.

With 24 V DC supply voltage, multiple configurable safety inputs, 4 PNP safety outputs, and integrated diagnostic functions, the CS MP205M0 supports applications up to SIL 3 / PL e / Category 4. ([pizzato.su](https://pizzato.su/csmp205m0.html)) ([pizzato.com](https://www.pizzato.com/en/catalog/CSMP205M0.html)) ([turn0search9])

Key Advantages

• Advanced programmable safety logic controller for complex machinery.
• Compliant with SIL 3 / PL e / Category 4 safety standards. ([turn0search9])
• Flexible configuration of multiple safety input types (digital, frequency, and test signals). ([turn0search9])
• 4 PNP safety outputs for direct machine control. ([turn0search9])
• 4 signalling outputs for diagnostics and system status monitoring. ([turn0search9])
• Reduces wiring and replaces multiple traditional safety relays.

Key Features

• Pizzato Gemnis CS MP programmable safety series.
• Model: CS MP205M0.
• Programmable multifunction safety controller.
• 24 V DC supply voltage. ([turn0search9])
• 4 safety inputs (I). ([turn0search9])
• 4 decoupled inputs (J). ([turn0search9])
• 4 frequency inputs (F up to 4 kHz). ([turn0search9])
• 4 test outputs (T). ([turn0search9])
• 4 PNP safety outputs (OS). ([turn0search9])
• 4 signalling outputs (O). ([turn0search9])
• Programming via Gemnis Studio software.

Technical Specifications

• Manufacturer: Pizzato Elettrica
• Series: CS MP Gemnis Safety Controllers
• Model: CS MP205M0
• Product type: Programmable safety controller
• Supply voltage: 24 V DC
• Safety inputs: 4 digital + 4 decoupled inputs
• Frequency inputs: 4 (up to 4 kHz)
• Test outputs: 4
• Safety outputs: 4 PNP semiconductor outputs
• Signalling outputs: 4
• Safety level: SIL 3 / PL e / Category 4
• Response time: < 30–40 ms (typical series value)
• Mounting: DIN rail
• Programming software: Gemnis Studio

Safety Control Function

The CS MP205M0 executes programmable safety logic internally, allowing multiple safety functions to be combined into a single controller. This includes monitoring of emergency stops, interlocks, and sensor-based inputs with real-time diagnostics.

It is particularly suitable for advanced machinery requiring mixed input types (digital and frequency) and high-speed safety response in automated systems.

Typical Applications

• Advanced automated production systems.
• High-speed packaging machinery.
• Robotics safety control systems.
• Multi-zone machine guarding systems.
• Industrial automation with mixed sensor inputs.
• OEM machine safety integration.

Trusted in Advanced Industrial Safety Systems

Pizzato CS MP programmable safety controllers are widely used in industrial automation to simplify complex safety architectures while maintaining high levels of functional safety and diagnostic capability.
