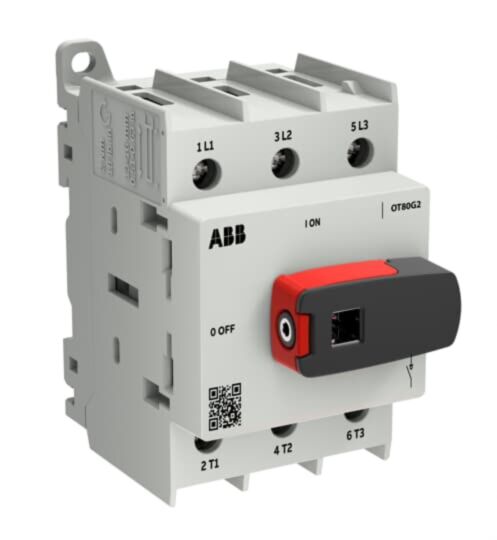

1SCA162549R1001 ABB OT80G2-3BS OT Plus 3 Pole 80A Panel Mounted Switch Disconnector
MPN: 1SCA162549R1001
Alt. SKU: OT80G2-3BS
Special Price
£35.56
£29.63
Regular Price
£54.70
Why Choose the 1SCA162549R1001
The ABB 1SCA162549R1001 is a three-pole OT Plus switch disconnector with an 80 A rated current and a maximum operating voltage of 800 V, designed for effective isolation in industrial applications.
This unit is suitable for circuits requiring reliable disconnection and offers a short-circuit rating of 50 kA, with a short-time withstand of 1.5 kA.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162549R1001
- Manufacturer part number: 1SCA162549R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 80 A
- Rated permanent current at AC-21, 400 V: 80 A
- Rated permanent current at AC-23, 400 V: 80 A
- Rated short-time withstand current lcw: 1.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 45 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 45 kW
Downloads
- Datasheet for 1SCA162549R1001
- Installation instructions for 1SCA162549R1001
- Enviromental product declaration for 1SCA162549R1001
- EU Declaration of Conformity for 1SCA162549R1001
- REACh declaration for 1SCA162549R1001
Trusted By Customers Worldwide
"Ensure correct sizing for 80 A continuous load at up to 800 V AC in three-phase applications." Engineering note
Frequently Asked Questions
What is the maximum rated operating voltage for the ABB 1SCA162549R1001 OT Plus switch disconnector?
The maximum rated operating voltage is 800 V AC.
What is the short-circuit rating of this switch disconnector?
The short-circuit rating is 50 kA.
Can this switch disconnector be used for three-phase applications?
Yes, it is a three-pole device suitable for three-phase applications.
| Alternative Product SKU | OT80G2-3BS |
|---|---|
| Manufacturer Part Number | 1SCA162549R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925844 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 45kW |
| Rated permanent current at AC-21, 400 V | 80A |
| Switching power at 400 V | 45kW |
| Rated permanent current at AC-23, 400 V | 80A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 80A |
| Amperage | 80A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 91.5mm |
| Width | 52.5mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
