Turck Banner SD50 Status Display: Now Available at LED Controls!

We are thrilled to announce that the Turck Banner SD50 Pro Status Display is now available on the LED Controls website. If you want clearer, more accurate and efficient communication in your industrial applications, this display has you covered.

Why Choose the Turck Banner SD50

Whether you're monitoring equipment status, tracking sensor data, or simply displaying instructions on the factory floor, by combining text with multicolour LEDs, the SD50 delivers clear and instant information where it matters most.

Key Benefits

1. Simple and Flexible Configuration

The SD50 comes in Discrete, IO-Link, and Modbus models, so it integrates easily whatever your system requires. It works especially well with Banner’s sensing, safety, and monitoring solutions.

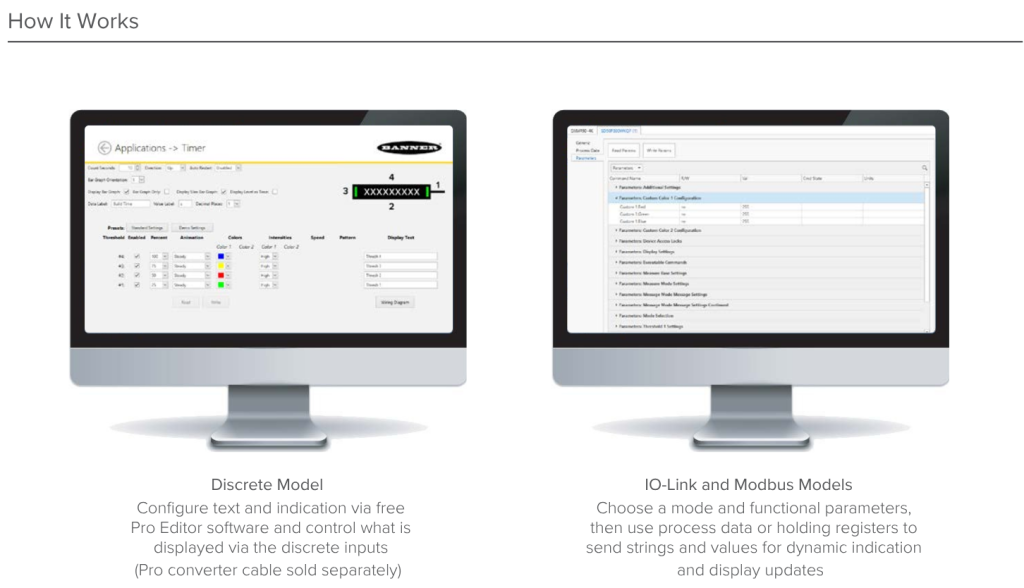

• Discrete model: Configure colours, animations, and text in minutes with Banner’s Pro Editor software. No coding or PLC is required.
• IO-Link & Modbus models: Use parameter data to access advanced functions. Then, send strings and values through process data for dynamic indication and display updates.

2. Clear and Readable Communication

The SD50 ensures information is always visible and easy to understand:

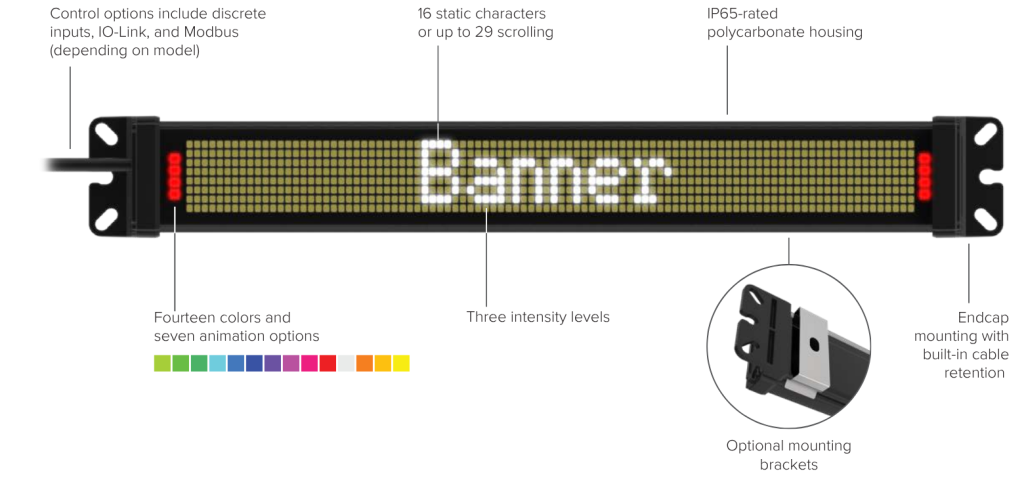

• A bright 16-character LED display (up to 32 characters with scrolling)
• 28 mm characters visible from up to 10 meters away
• Two sets of four RGB LEDs with seven colours and multiple animations for extra emphasis

These ingenious features mean no more squinting across the factory floor or fumbling for your reading glasses, just fast and clear communication!

3. Built for Any Environment

The SD50 has a rugged, vented, IP65-rated polycarbonate housing, so it performs well in both indoor and outdoor applications. Its built-in vent prevents condensation from temperature changes, which is perfect if your process is always on the move.

In addition, endcap mounting and brackets allow for quick and secure installation, and the M12 5-pin pigtail and cable retention grooves keep wiring neat and organized.

4. Boost Efficiency in Every Application

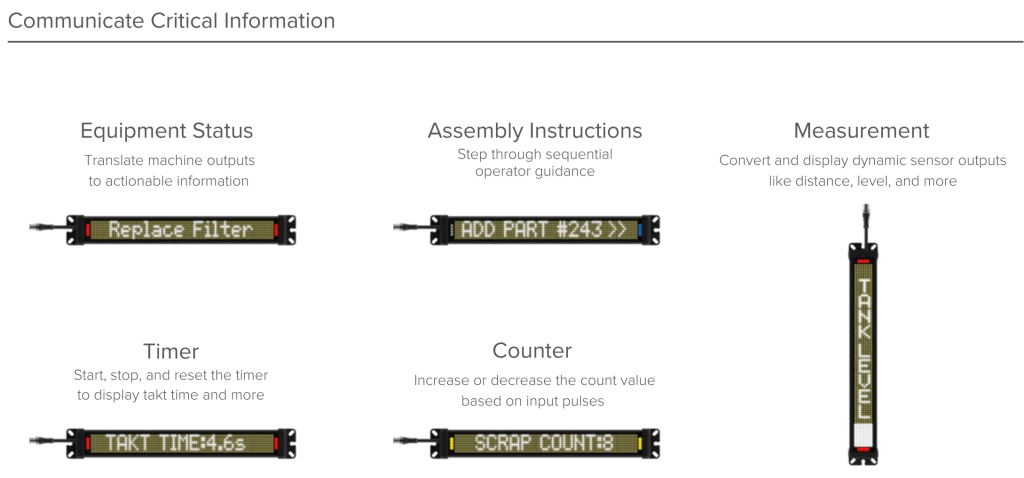

The SD50 offers multiple operating modes to fit your needs:

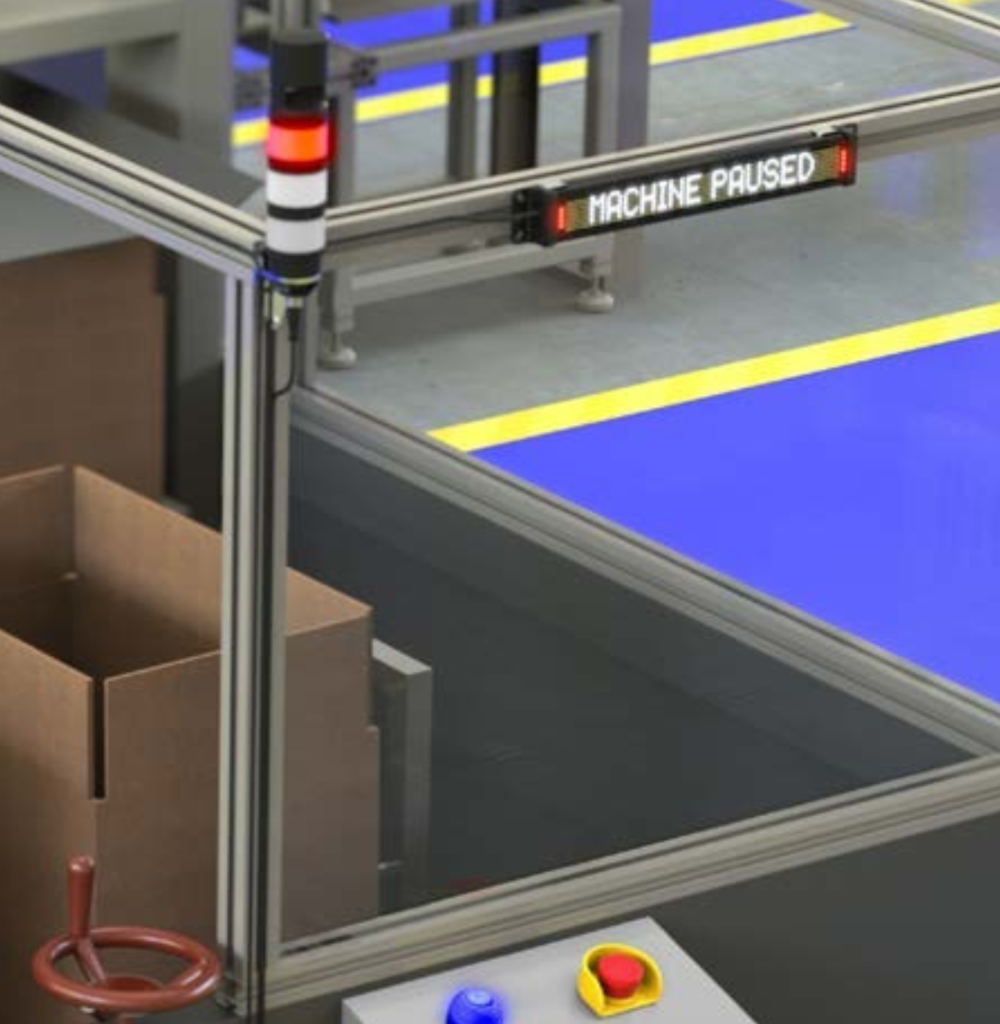

• Run Mode: Display machine status, instructions, and operator prompts.
• Measurement Mode: Show real-time sensor outputs such as distance, fill levels, and temperature.
• Timer Mode: Start, stop, and reset timers with ease.

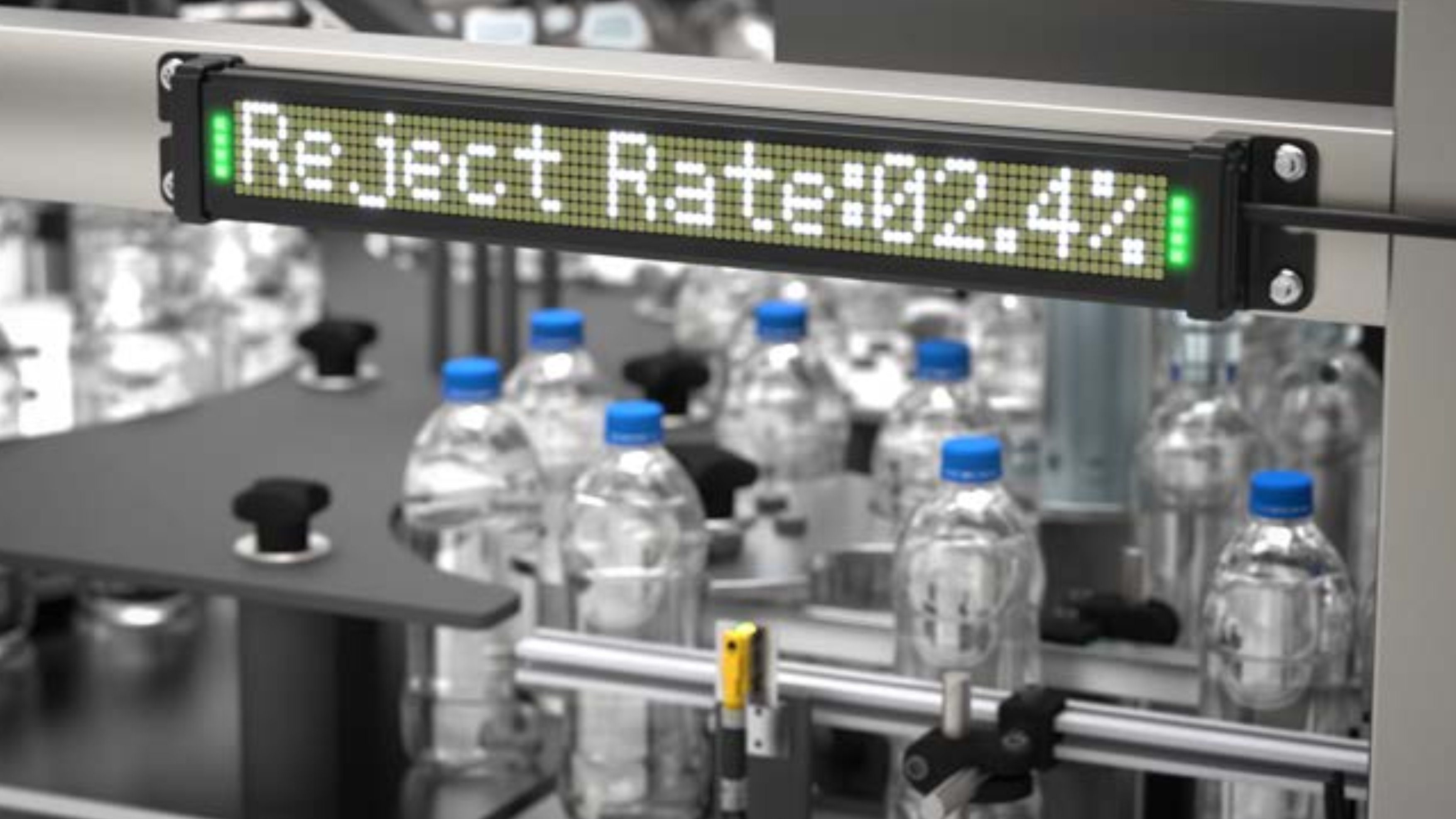

• Counter Mode: Track production counts or scrap rates in real time.

Thanks to its user-friendly setup, the SD50 also reduces training time and helps operators get up to speed quickly. So you can keep your system running

Ready to Upgrade?

The Turck Banner SD50 Status Display is available right here on our website. So order yours to simplify communication, increase efficiency, and keep your operations running at their best.

👉 Shop the Turck Banner SD50 Now

Or contact us today:

01706 242050
[email protected]
www.ledcontrols.co.uk

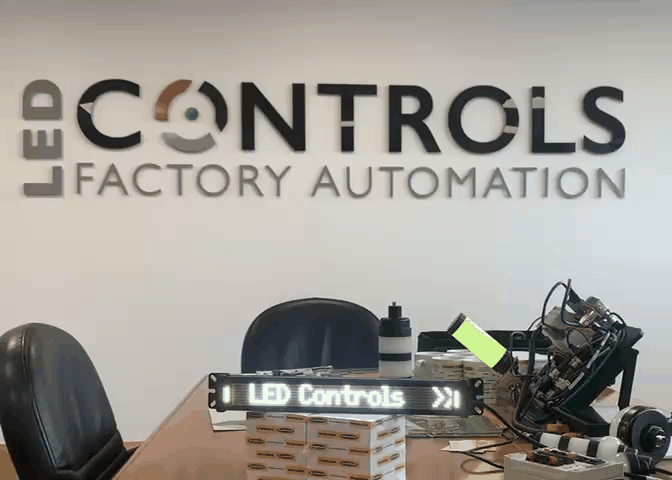

And bring the power of clear communication to your production floor. Or boardroom.
