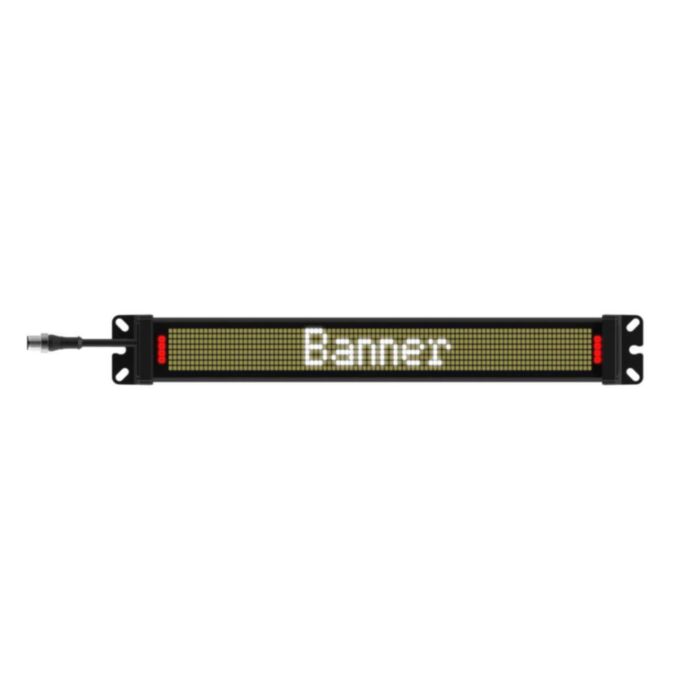

SD50P300WKQP SD50 Status Display with IO-Link; 8 x 96 pixels
MPN: SD50P300WKQP
Alt. SKU: 817045
£333.56
£277.97
Why Choose the Banner SD50P300WKQP 300 mm IO‑Link LED Status Display?
The Banner SD50P300WKQP is a smart 300 mm LED status display designed for seamless integration into Industry 4.0 systems using IO‑Link communication. It features a white 8 × 96 pixel LED matrix combined with RGB status indicators, delivering up to 14 customisable colours and animated signal patterns. With its slimline IP65 polycarbonate housing and simple 4‑pin M12 quick‑disconnect interface, this display offers advanced visual status indication for industrial equipment, automated workcells, and control panels. Powered by 18–30 V DC, it excels in smart factories, AGVs, robotics, and environments requiring fast, visible process feedback and diagnostics.
Technical Specifications
- Product Code: SD50P300WKQP
- Display: 8 × 96 white LED matrix with RGB indicator LEDs
- Colour Output: Up to 14 user-defined colours
- Interface: IO‑Link (bi-directional communication)
- Supply Voltage: 18–30 V DC
- Cable: 150 mm 4‑pin M12 PVC pigtail quick‑disconnect
- Enclosure Material: Polycarbonate
- Ingress Protection: IP65
- Dimensions: Approx. 325 × 50 × 28 mm (L × H × D)
- Operating Temperature: −20 °C to +50 °C
- Mounting Style: Panel or chassis mount
- Certifications: CE, RoHS compliant
Key Features
- IO‑Link enabled: Supports full remote control, diagnostics, and parameter configuration
- Multi-colour messaging: Up to 14 programmable colours with dynamic animation capabilities
- Compact and low-profile design: Ideal for installation in space-constrained machine panels
- Fully sealed IP65 housing: Withstands dust, moisture, and light washdown environments
- Quick integration: Standard M12 QD simplifies connection to industrial controllers
Compatibility & Accessories
Fully compatible with Banner Engineering’s SD50 mounting accessories, including:
- LMBSD50 – Standard stainless-steel bracket
- LMBSD50-180S – Adjustable 180° swivel bracket
- LMBSD50-180SMAG – Magnetic swivel mounting kit (pair)
The SD50P300WKQP is supported by Banner’s IO‑Link configuration tools, Siemens-compatible function blocks, and downloadable CAD files (PDF, STP, IGS) for integration into system designs. Setup is simplified using IO‑Link commissioning software or your PLC’s engineering environment.
Frequently Asked Questions
- How do I install the SD50P300WKQP in a control panel?
- How is the display configured using IO‑Link?
- How many colours and animations can it display?
- Is the SD50P300WKQP suitable for dusty or wet areas?
- Where is this display typically used?
- Is the SD50P300WKQP certified for industrial use?
Trusted by Customers Worldwide
“We standardised on the SD50P300WKQP for all our smart panels. IO‑Link gives us fast diagnostics and visual status control from the PLC with no re-wiring.” – Senior Controls Engineer, Automotive Supplier
The device mounts directly to panels or frames using Banner’s bracket kits. A single 4‑pin M12 QD cable connects power and IO‑Link signals, enabling fast, tool-free deployment.
Parameters, colours, and states are configured via your IO‑Link master using PLC software or Banner’s free IO‑Link commissioning tools. You can assign messages, animations, and patterns remotely.
The display supports up to 14 programmable colours using RGB LEDs, with multiple animation types such as solid, blinking, chasing, or pulsing states.
Yes, it is rated IP65, meaning it is dust-tight and protected against low-pressure water jets, making it suitable for most industrial environments.
Common applications include smart factories, machine diagnostics, robotic workcells, material flow indication, and automated assembly stations.
Yes, it is CE and RoHS compliant and meets requirements for deployment in Category 2 industrial environments.
| Alternative Product SKU | 817045 |
|---|---|
| Manufacturer Part Number | SD50P300WKQP |
| Manufacturer | Turck Banner |
| Degree of protection (IP) | IP65 |
| Material | Polycarbonate |
| Display | Graphical Led Display |
| Connections | Integral QD M12 |
| Number of Input Pins/Conductors | 5 |
| Communication | MODBUS RTU |
| PICK-IQ (Modbus RTU) | Yes |
| Storage Temperature | -40...+70C |
| Min Operating Temperature(Deg. C) | -20 |
| High Temperature | 60 |
| Packed Quantity | 1 |
| Height | 28mm |
| Width | 325mm |
| Depth | 50mm |
| Colour | Black |
