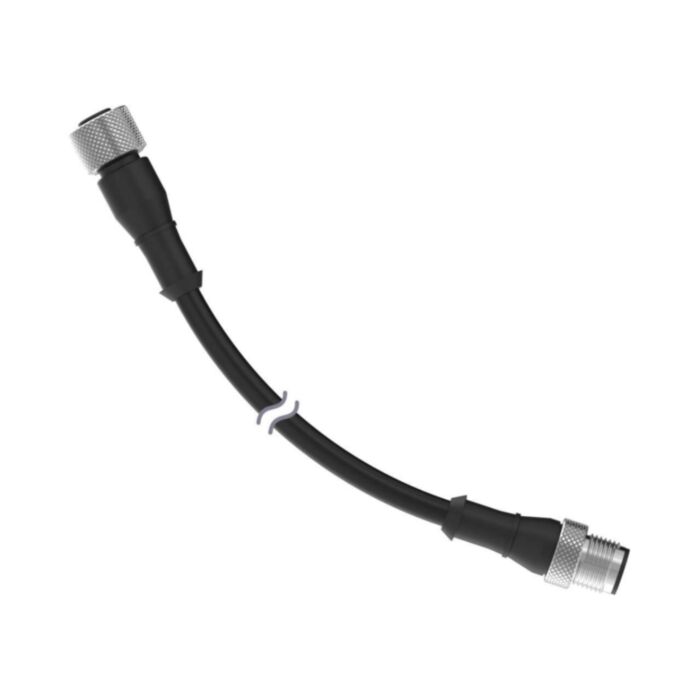

BC-M12F5-M12M5-22-5 Cordset: 5m Double-Ended M12 connections
MPN: BC-M12F5-M12M5-22-5
Alt. SKU: 815150
Why Choose the Banner BC‑M12F5‑M12M5‑22‑5 5 m Double‑Ended M12 Cordset?
The Banner BC‑M12F5‑M12M5‑22‑5 delivers a robust, industrial-grade 5 m M12 quick-disconnect cable featuring 5‑pin A‑coded female-to-male connectors. Engineered for factory automation, control panels, and sensor networks, it ensures durable connectivity with a resilient black PVC jacket, nickel-plated brass coupling nuts, and comprehensive IP66/IP67/IP68 sealing, making it perfect for long-distance runs without compromising signal integrity.
Technical Specifications
- Product Code: BC‑M12F5‑M12M5‑22‑5
- Connector A: M12 female, 5‑pin, A‑coded
- Connector B: M12 male, 5‑pin, A‑coded
- Cable Length: 5 m (16.4 ft)
- Jacket Material: Black PVC, round
- Coupling Nuts: Nickel‑plated brass
- Current Rating: 4 A
- Voltage Rating: 60 V AC/DC
- Ingress Protection: IP66 / IP67 / IP68 (dust‑tight, water‑jet and submersion sealed)
- Certifications: RoHS compliant; CE via system compatibility
Key Features
- 5 m cable length: Supports extensive runs without using extension connectors
- Fast quick-disconnect: A‑coded M12 connectors ensure solid, tool‑free connections
- Industrial sealing: IP68-rated protection against dust, water, and harsh conditions
- Robust construction: Built to resist vibration and industrial wear
Compatibility & Accessories
Part of Banner’s BC-series cordsets, this model pairs seamlessly with SD50 displays, Banner sensors, lighting modules, and automation controllers. Additional length options—1 m, 2 m, 8 m, 10 m, and beyond—are available, including shielded or angled variants for flexible system designs.
Used by Professionals Worldwide
“This 5 m M12 cable dramatically simplifies our installations—no junction boxes, just plug‑and‑play from panel to sensor.” – Maintenance Engineer
Frequently Asked Questions
- What environments can this cordset withstand?
- Is it resistant to vibration?
- Are other lengths available?
- What connectors are used?
Rated IP66/67/68, it offers protection against dust, water jets, and submersion—ideal for challenging or wash-down industrial environments.
Yes—the cable meets IEC standards for vibration and shock, offering strong durability in mobile and high-motion deployments.
Yes, lengths include 1 m, 2 m, 5 m, 8 m, 10 m and up to 15 m, with shielded and angled connector variants also available.
The cordset features A‑coded 5‑pin M12 connectors—female on one end and male on the other—for reliable industrial connectivity.
| Manufacturer Part Number | BC-M12F5-M12M5-22-5 |
|---|---|
| Alternative Product SKU | 815150 |
| Manufacturer | Turck Banner |
| Packed Quantity | 1 |
| Colour | Black |
