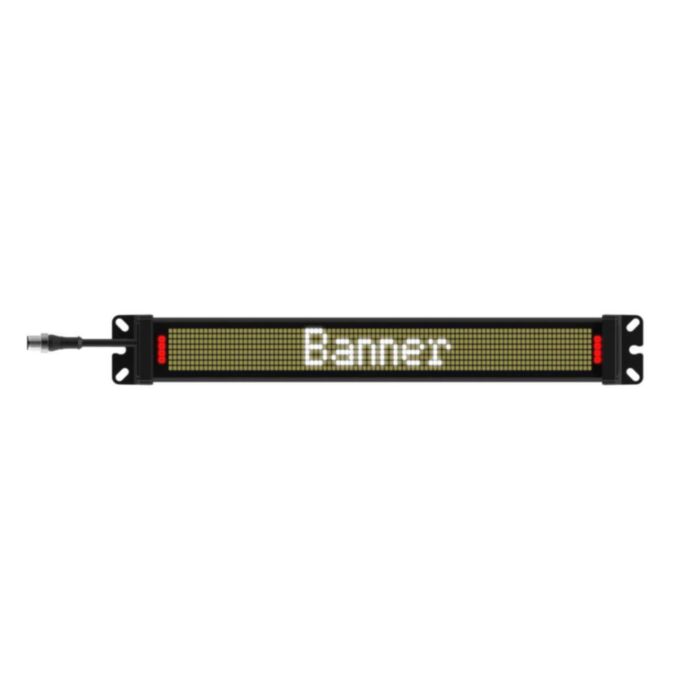

SD50P300WSQP SD50 Status Display with Modbus; 8 x 96 pixels; White Display LEDs
MPN: SD50P300WSQP
Alt. SKU: 817047
£333.56
£277.97
Why Choose the Banner SD50P300WSQP 300â¯mm Modbus RTU LED Status Display?
The Banner SD50P300WSQP is a smart, rugged LED status display with Modbus RTU communication, designed for modern industrial and IIoT environments. It features a white 8â¯Ãâ¯96 pixel LED matrix paired with multicolour RGB indicators, capable of displaying up to 14 colours and animated alerts. Powered by a broad 12â30â¯Vâ¯DC range and housed within a durable IP65-rated polycarbonate body, this 300â¯mm display connects via a user-friendly 150â¯mm 4âpin M12 quickâdisconnect cable. Ideal for smart factories, machine panels, HMI replacements, and any system requiring real-time display of takt time, equipment status, counts, or machine health via Modbus RTU.
Technical Specifications
- Product Code: SD50P300WSQP
- Display: 8â¯Ãâ¯96 white LED pixel matrix with RGB indicators
- Communication: Modbus RTU (PICKâIQ friendly)
- Supply Voltage: 12â30â¯Vâ¯DC (Modbus/discrete models)
- Cable: 150â¯mm 4âpin M12 PVC pigtail QD
- Enclosure: IP65-rated polycarbonate
- Dimensions: Approx. 325â¯Ãâ¯50â¯Ãâ¯28â¯mm (L à H à D)
- Temperature Range: â20â¯Â°C to +50â¯Â°C
- Mounting: Panel or chassis
- Certifications: CE, RoHS compliant
Key Features
- Modbus RTU integration: Seamlessly connect with PLCs, SCADA, or condition monitoring systems using standard Modbus networks
- Colour-coded messaging: Up to 14 custom colours and animations to enhance visibility and provide clear status alerts
- Smart factory ready: Displays real-time production dataâsuch as counts, machine state, or takt timeâwithout requiring an HMI
- Compact, robust design: IP65-rated body resists dust and low-pressure water, ideal for wash-down or harsh environments
Compatibility & Accessories

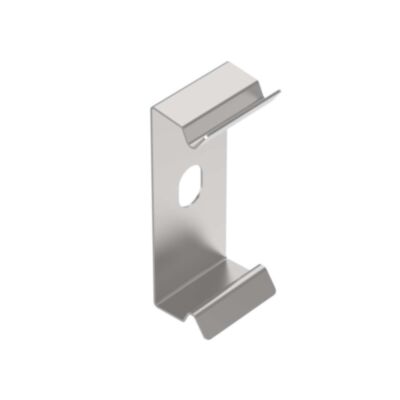

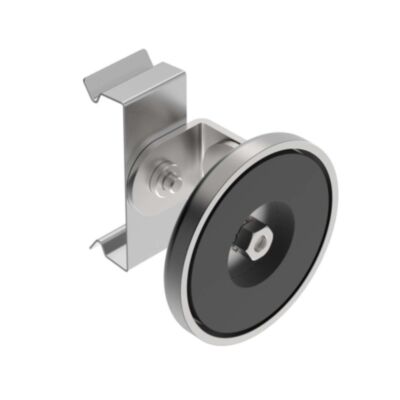

This Modbus-enabled display integrates seamlessly with Banner's ecosystem, including the Snap Signal® sensors and condition monitors for live data display. Fully compatible with SD50 brackets like LMBSD50, LMBSD50â180S, and LMBSD50â180SMAG. Includes access to CAD downloads (PDF, STP, DXF) and complete product manuals. :contentReference[oaicite:8]{index=8}
Frequently Asked Questions
- How is the SD50P300WSQP configured with Modbus?
- What data types can it display?
- How many colours are available?
- Can it be used in dusty or wet environments?
- What typical applications does it work in?
- Is it compliant with industrial standards?
Trusted by Customers Worldwide
âThe SD50P300WSQP has become our go-to display on conveyor systemsâModbus RTU gives us live uptime data, and the multiâcolour feedback improves operator response time.â â Automation Specialist
It utilizes Modbus RTU (including Bannerâs PICKâIQ), allowing you to send text or numeric values via holding registers. Ideal for direct connection to PLCs or SCADA setups for realâtime operational feedback. :contentReference[oaicite:9]{index=9}
The display can show machine status, counts, takt time, alarms, and measurements directly from sensors or PLC logic. It updates continuously without needing a human-machine interface. :contentReference[oaicite:10]{index=10}
It offers up to 14 selectable colours via RGB LEDs, with configurable animations like steady, blinking, or pulsing effects. :contentReference[oaicite:11]{index=11}
Yes. The unit is enclosed in an IP65 polycarbonate case, offering protection against dust and light water jetsâideal for factory floor or light wash-down zones. :contentReference[oaicite:12]{index=12}
Commonly used in assembly lines, pick-to-light systems, AGV bays, packaging machines, and process stationsâwhere operators benefit from direct, real-time visual feedback. :contentReference[oaicite:13]{index=13}
Yes. It is both CE and RoHS complaint and designed for reliable use in industrial applications. :contentReference[oaicite:14]{index=14}
| Alternative Product SKU | 817047 |
|---|---|
| Manufacturer Part Number | SD50P300WSQP |
| Manufacturer | Turck Banner |
| Degree of protection (IP) | IP65 |
| Material | Polycarbonate |
| Display | Graphical Led Display |
| Connections | Integral QD M12 |
| Number of Input Pins/Conductors | 4 |
| Communication | MODBUS RTU |
| PICK-IQ (Modbus RTU) | Yes |
| Packed Quantity | 1 |
| Height | 28mm |
| Width | 325mm |
| Depth | 50mm |
| Colour | Black |
