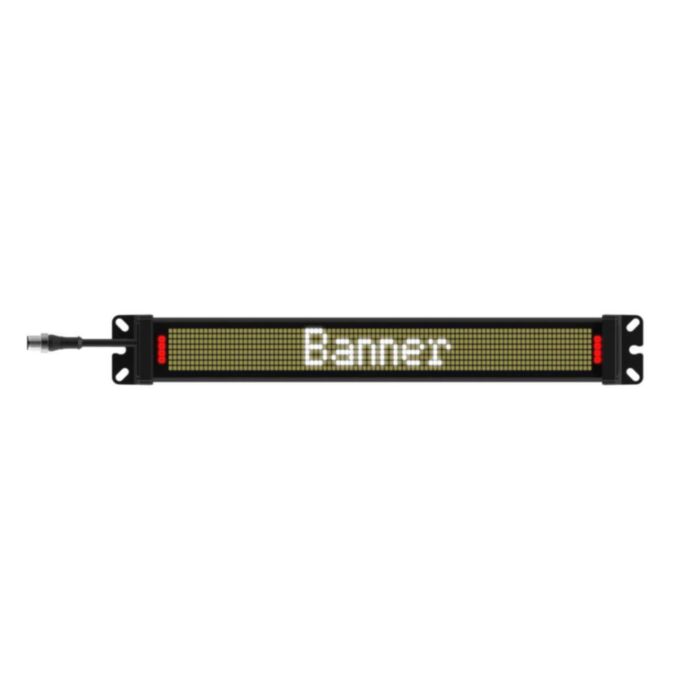

SD50P300WD15QP SD50 Status Display with 15 State Discrete; 8 x 96 pixels

Why Choose the Banner SD50P300WD15QP Status Display?

The Banner SD50P300WD15QP is an industrial LED machine status display designed to show production messages, alarms and process information directly on automated equipment. The display combines an 8 × 96 pixel white LED matrix with integrated RGB indicator lighting, providing highly visible machine communication in PLC-controlled automation systems.

Part of the reliable Turck Banner product range, the SD50 series allows machines to communicate operating states, warnings and production information to operators across busy factory environments. With support for 15 discrete control states, PLC signals can trigger predefined messages or visual indicators that clearly show machine conditions.

Configuration is performed using Banner Pro Editor software, allowing engineers to customise messages, colours and animations without complex programming. This makes the SD50 ideal for machine builders and automation engineers who need a flexible operator messaging solution.

The display is housed in a durable polycarbonate enclosure with an IP65 protection rating, ensuring reliable operation in harsh industrial environments. A compact 300 mm display length and M12 quick-disconnect connection simplify installation on machines, control cabinets and automation systems.

Key Advantages of the SD50 Status Display

• Improves operator awareness of machine conditions and alarms.
• Displays production counters, takt time and machine messages.
• Simpler and more cost-effective than installing a full HMI panel.
• Highly visible LED display suitable for factory environments.
• Quick configuration using Banner Pro Editor software.
• Easy integration with PLC outputs and automation controllers.

Key Features

• Industrial LED status display for machine communication.
• 8 × 96 pixel LED matrix display for text messages and process data.
• 15 discrete PLC-controlled states for automation signalling.
• Integrated RGB indicator LEDs for colour-coded machine status.
• Configurable messages and animations via Banner Pro Editor.
• 12–30 V DC power supply compatible with industrial control systems.
• IP65-rated polycarbonate housing for industrial environments.
• M12 connector enabling quick installation and wiring.

Technical Specifications

• Manufacturer: Banner Engineering
• Series: SD50 Status Display
• Model: SD50P300WD15QP
• Display type: LED matrix
• Display resolution: 8 × 96 pixels
• Display colour: White LED matrix
• Status indication: Integrated RGB LEDs
• Discrete states: 15
• Supply voltage: 12–30 V DC
• Connection: M12 quick-disconnect connector
• Display length: 300 mm
• Approx. height: 50 mm
• Approx. depth: 30 mm
• Housing material: Polycarbonate
• Protection rating: IP65
• Operating temperature: approximately −20 °C to +50 °C
• Mounting: Machine or panel mounting

Industrial Machine Status Displays

Modern manufacturing equipment requires clear visual communication of machine conditions, alarms and production information. Industrial devices such as industrial status displays provide a practical alternative to complex HMI systems by presenting machine messages and operating states directly on equipment using bright LED indicators.

When connected to PLC outputs or automation controllers, the display allows operators and maintenance personnel to immediately identify machine status, production progress or fault conditions. This improves visibility across the production floor and helps reduce downtime by making system information easier to interpret.

PLC and Control System Integration

The SD50P300WD15QP integrates easily with PLC digital outputs and automation controllers. Each discrete input can trigger a specific message or display state, enabling machines to communicate information such as run status, idle mode, maintenance alerts or system faults.

Using Banner Pro Editor, engineers can configure display messages, colour indicators and animations to match machine operation. The display connects via a standard M12 connector, simplifying wiring and making the device suitable for new machine builds or retrofit automation projects.

Typical Applications

• Machine status indication in automated production lines.
• Display of takt time, counters and production metrics.
• Operator instruction and assembly guidance systems.
• Process monitoring and machine alarm indication.
• PLC-controlled industrial automation systems.

Machines Commonly Using This Display

• Packaging and labelling machines
• Automated assembly systems
• Conveyor and material handling equipment
• CNC machines and machining centres
• Automated inspection and testing systems

Trusted by Automation Engineers

Banner SD50 status displays are widely used by machine builders and automation engineers to communicate machine conditions, alarms and production data clearly on industrial equipment.
