9.B1D23 Cembre EWO IP66 Grey 1 hole 23 - 24mm cable clamp Grommet For Split Cable Entry Systems

Why Choose the Cembre EWO 9.B1D23 IP66 Grey 1 Hole 23 - 24 mm Cable Clamp Grommet

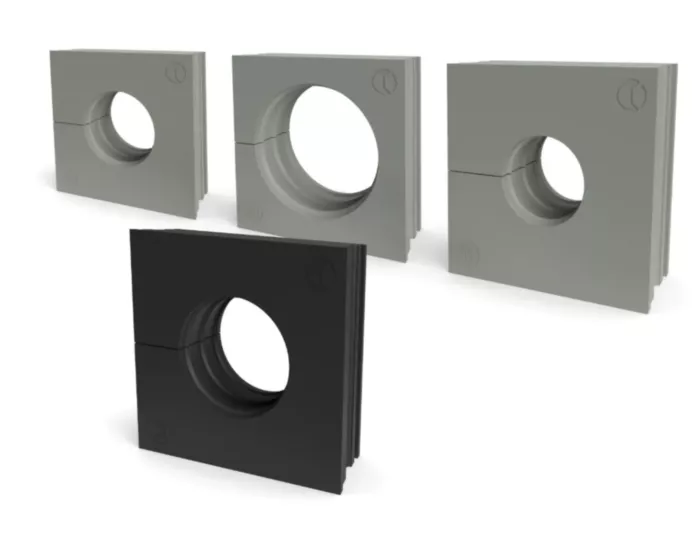

The Cembre 9.B1D23 is a grey single hole grommet for the EWO split cable entry system. It routes and seals one 23 - 24 mm cable, providing secure strain relief while maintaining an enclosure’s IP66 ingress protection in control panels, machinery, and OEM builds.

Using the Type B medium module format, the 9.B1D23 clips into compatible EWO frames from above for quick installation. It is interchangeable with other Type B blanks and drilled grommets, allowing future changes without reworking the panel cut out.

Key Features

• 1 hole sized for a 23 - 24 mm cable.
• Clamp geometry delivers dependable strain relief and sealing.
• Type B module footprint: 20 × 41.2 mm.
• Maintains IP66 when used with EWO frames with integrated seal.
• Fast clip in assembly, suitable for pre terminated leads.
• Grey finish; black variants are available elsewhere in the range.

Technical Specifications

• Manufacturer: Cembre
• Series: EWO split cable entry system
• Model: 9.B1D23
• Function: Type B single hole cable clamp grommet
• Cable diameter range: 23 - 24 mm
• Module size: 20 × 41.2 mm (Type B)
• Material: Thermoplastic elastomer (TPE)
• Colour: Grey
• Ingress protection: IP66 with compliant EWO frame
• Operating temperature (system): −40 to +140 °C
• Certifications: CE, UKCA, UL (cURus), RINA at system level
• Notes: Interchangeable with Type B blanks and multi hole grommets for layout flexibility.

Certifications

As part of the EWO platform, the 9.B1D23 contributes to an assembly rated to IP66 when installed in an approved frame. The wider system carries CE, UKCA, UL (cURus), and RINA approvals for industrial and marine environments.

Comparison and Selection Notes

Choose 9.B1D23 for a single 23 - 24 mm cable in the Type B footprint. For smaller single cables, select other 9.B1D* sizes. To blank unused positions, use 9.BD0. For multiple cables in Type B, consider 9.B2D* variants. For compact modules, use Type A grommets.

Frequently Asked Questions

• What is the 9.B1D23 used for
• Which frames does it fit
• Does it maintain IP66
• Can it be swapped with other grommets

Applications

• Sealed entry for a single 23 - 24 mm power or control cable.
• Automation and process control cabinets.
• OEM machinery requiring modular, sealed cable management.

Trusted By Installers

"Great fit for larger single cables in Type B frames. Keeps the cabinet sealed and is easy to reconfigure later." Control Panel Builder, UK
