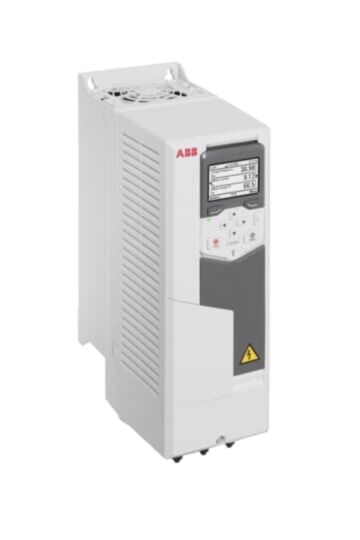

ACS580-01-12A7-4 ABB 5.5kW Three Phase ABB ACS580 Variable Speed Drive

Why Choose the ABB ACS580-01-12A7-4 General Purpose Drive?

The ABB 3AXD50000038953, designated as ACS580-01-12A7-4, is a powerful and versatile AC variable frequency drive (VFD) designed for general-purpose industrial applications. As part of the ABB ACS580 drive series, it provides a complete, plug-in ready solution with all essential features built in, simplifying installation, commissioning and operation.

Engineered for reliability and ease of use, the ACS580 series is ideal for both variable and constant torque applications. Its intuitive control panel, built-in assistants and robust design make it a preferred choice for engineers seeking efficient motor control with minimal setup time.

With a rated output of 5.5 kW, 12.6 A nominal current and a three-phase 380–480 V AC supply, the ACS580-01-12A7-4 is well suited for industrial processes including pumps, fans, conveyors and compressors. :contentReference[oaicite:0]{index=0}

Key Advantages

• General-purpose variable speed drive for a wide range of applications.
• 5.5 kW output power suitable for industrial motor control.
• Three-phase 380–480 V AC input for industrial environments.
• All essential features built-in, reducing external components.
• Fast commissioning with intuitive setup assistants.
• Robust construction for reliable long-term operation.

Key Features

• ABB ACS580 general purpose drive series.
• 5.5 kW rated output power.
• 12.6 A nominal output current.
• Supports both variable and constant torque applications.
• Safe Torque Off (STO) safety functionality.
• Built-in EMC filter (C2 category) for reduced interference.
• Integrated control panel with commissioning assistants.
• Communication support including Modbus RTU and optional fieldbus modules.

Technical Specifications

• Manufacturer: ABB
• Series: ACS580 General Purpose Drives
• Model: ACS580-01-12A7-4
• Product ID: 3AXD50000038953
• Product type: AC variable frequency drive
• Rated output power (Pn): 5.5 kW
• Rated output current (In): 12.6 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output frequency: 0–500+ Hz
• Protection rating: IP21
• Mounting type: Wall-mounted
• Frame size: R1
• Dimensions (H × W × D): approx. 373 × 125 × 223 mm
• Weight: approx. 4.6 kg

Efficient Motor Control for Industrial Processes

The ABB ACS580 regulates motor speed by adjusting output voltage and frequency, improving process control while reducing energy consumption and mechanical wear. It is designed as a complete solution, eliminating the need for additional hardware and simplifying system design. :contentReference[oaicite:1]{index=1}

Its robust construction and flexible functionality make it suitable for a wide range of industries including food and beverage, plastics, textiles and material handling. :contentReference[oaicite:2]{index=2}

Typical Applications

• Pumps and fan systems.
• Compressors and HVAC equipment.
• Conveyors and material handling systems.
• Mixers, centrifuges and extruders.
• Food and beverage processing.
• General industrial automation.

Trusted by Industrial Engineers Worldwide

ABB ACS580 drives are trusted globally for delivering reliable, efficient and easy-to-use motor control solutions across a wide range of industrial applications.
