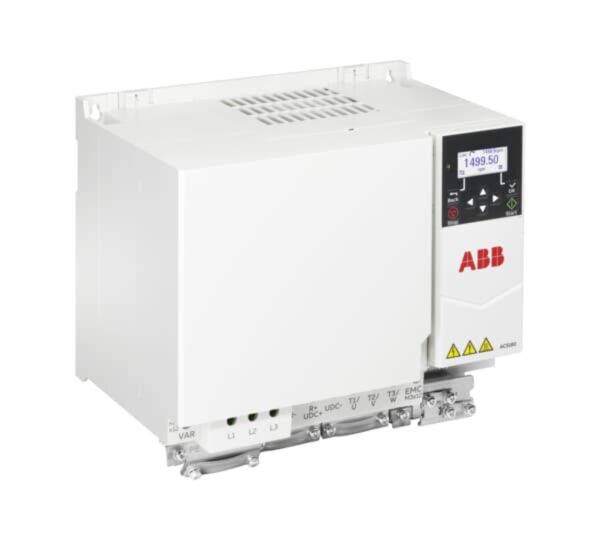

ACS180-04S-050A-4 ABB 22kW Three Phase ABB ACS180 Variable Speed Drive

Why Choose the ABB ACS180-04S-050A-4 Machinery Drive?

The ABB ACS180-04S-050A-4 is a compact and reliable AC variable frequency drive (VFD) designed for straightforward motor control in machinery and light industrial automation applications. As part of the ABB ACS180 machinery drive series, it delivers efficient speed control for three-phase motors while offering the simplicity required by machine builders, installers and maintenance teams.

This drive provides dependable performance for applications where compact size, easy commissioning and robust motor control are essential. With integrated safety and braking functionality, the ACS180 helps reduce panel complexity while supporting efficient operation across variable speed machinery.

With a rated output power of 22 kW and a nominal output current of 50 A, the ACS180-04S-050A-4 is ideal for medium-sized industrial motors used in conveyors, pumps, fans, mixers and production machinery. The drive operates from a three-phase 380–480 V AC supply and is designed for cabinet or panel installation.

Key Advantages

• Compact machinery variable frequency drive for industrial motor control.
• 22 kW rated output power suitable for medium machinery applications.
• 50 A nominal output current for dependable motor performance.
• Three-phase 380–480 V AC input compatible with industrial supplies.
• Integrated Safe Torque Off (STO) functionality.
• Built-in brake chopper supports dynamic braking applications.
• Simple commissioning and reliable operation for machine builders.

Key Features

• ABB ACS180 machinery drive series.
• ACS180-04S standard variant.
• 22 kW rated output power.
• 50 A nominal output current.
• Three-phase 400 V class AC supply.
• Integrated Safe Torque Off (STO) safety function.
• Built-in brake chopper for controlled stopping.
• Compact IP20 drive for cabinet installation.

Technical Specifications

• Manufacturer: ABB
• Series: ACS180 Machinery Drives
• Model: ACS180-04S-050A-4
• Product ID: 3AXD50000814558
• Product type: AC variable frequency drive
• Rated output power: 22 kW
• Rated output current: 50 A
• Heavy-duty output current: 45 A
• Fan / pump output current: 48 A
• UL power rating: 30 Hp
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output voltage: 3-phase 400 V AC
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Frame size: R4
• Mounting type: Cabinet / panel mounting
• Dimensions (H × W × D): approx. 205 × 260 × 179 mm

Simple and Reliable Machinery Motor Control

Variable frequency drives such as the ABB ACS180 regulate motor speed by adjusting the voltage and frequency supplied to the motor. This enables machinery to operate more efficiently, reduces mechanical stress and provides smoother acceleration and deceleration.

The ACS180 series is designed for machine builders and general automation users who need compact, practical and reliable motor control. Its integrated safety function, brake chopper and straightforward setup make it suitable for everyday industrial machinery and panel-building projects.

Typical Applications

• Industrial conveyors and material handling equipment.
• Pumps and fan systems.
• Mixers and processing machinery.
• Packaging and production equipment.
• Textile and manufacturing machinery.
• General OEM automation and machine building.

Trusted by Machine Builders Worldwide

ABB ACS180 machinery drives are widely used by machine builders, installers and industrial engineers to deliver compact, dependable and energy-efficient motor control for everyday automation applications.
