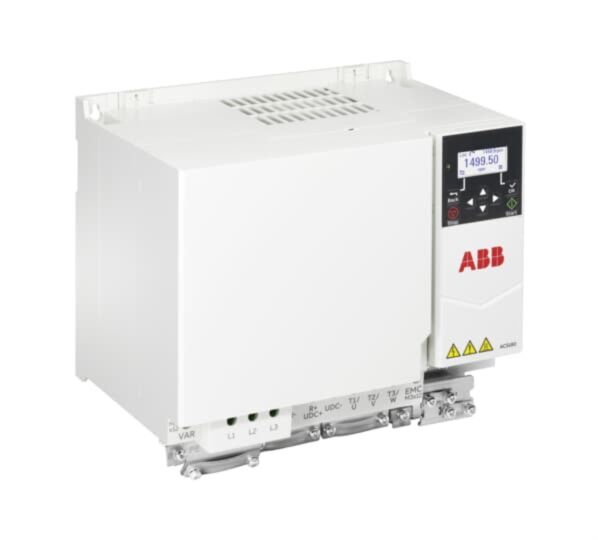

ACS180-04S-038A-4 ABB 18.5kW Three Phase ABB ACS180 Variable Speed Drive

Why Choose the ABB ACS180-04S-038A-4 Machinery Drive?

The ABB ACS180-04S-038A-4 is a compact and robust AC variable frequency drive (VFD) designed for efficient speed and torque control of three-phase motors in machinery and industrial automation applications. As part of the reliable ABB ACS180 machinery drive series, it provides essential motor control functionality in a simple, adaptable and cost-effective format.

This drive is engineered for machine builders and industrial users who need dependable performance, straightforward commissioning and compact installation. The ACS180 series includes built-in features that support reliable operation in pumps, fans, compressors, conveyors, winders and mixers.

With a rated output power of 18.5 kW and a three-phase 380–480 V AC supply, the ACS180-04S-038A-4 is ideal for medium-power industrial motor applications. Its IP20 open-type design is suitable for cabinet and panel mounting in machinery control systems.

Key Advantages

• Compact variable frequency drive designed for machinery applications.
• 18.5 kW motor power rating for industrial equipment.
• Three-phase 380–480 V AC input compatible with standard industrial power systems.
• Integrated Safe Torque Off (STO) safety function.
• Built-in EMC filter and braking chopper for simplified installation.
• Easy-to-use drive platform for machine builders and panel builders.
• Efficient motor control helps reduce energy consumption and mechanical stress.

Key Features

• ABB ACS180 machinery drive series.
• 18.5 kW rated output power.
• 38 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Integrated Safe Torque Off (STO) functionality.
• Built-in EMC filter.
• Integrated braking chopper.
• Modbus RTU communication capability.
• Compact IP20 open-type enclosure for cabinet installation.

Technical Specifications

• Manufacturer: ABB
• Series: ACS180 Machinery Drives
• Model: ACS180-04S-038A-4
• Product ID: 3AXD50000814497
• Product type: AC variable frequency drive
• Rated output power: 18.5 kW
• Rated output current: 38 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Mounting type: Cabinet / panel mounting
• Frame size: R4
• Output frequency: 0–500 Hz
• Weight: approx. 5.3 kg

Reliable Motor Control for Compact Machinery

Variable frequency drives such as the ABB ACS180 regulate motor speed by adjusting output voltage and frequency. This allows machinery to operate more efficiently while improving process control and reducing wear on motors, belts, gearboxes and driven equipment.

The ACS180 series is designed for compact machines and standard industrial applications where ease of use, dependable performance and essential built-in functionality are important. Its integrated safety function, communication capability and compact design make it suitable for modern machinery control panels.

Typical Applications

• Pumps and water handling systems.
• Fans and ventilation equipment.
• Compressors and air systems.
• Conveyors and material handling equipment.
• Winders and textile machinery.
• Mixers and processing equipment.
• OEM machinery and compact automation systems.

Trusted by Machine Builders Worldwide

ABB ACS180 machinery drives are widely used by machine builders, panel builders and automation engineers to deliver compact, reliable and efficient motor control for everyday industrial applications.
