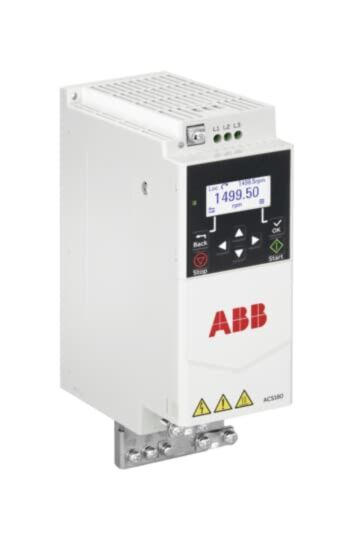

ACS180-04S-05A6-4 ABB 2.2kW Three Phase ABB ACS180 Variable Speed Drive

Why Choose the ABB ACS180-04S-05A6-4 Machinery Drive?

The ABB ACS180-04S-05A6-4 is a compact and reliable AC variable frequency drive (VFD) designed for efficient speed and torque control in machinery applications. As part of the ABB ACS180 machinery drive series, it provides essential motor control features in a simple, cost-effective package for machine builders, OEMs and industrial automation users.

This drive is engineered to deliver dependable performance for compact machines while supporting straightforward installation and commissioning. With built-in control functions, integrated safety and flexible motor control capabilities, the ACS180 range helps improve machine productivity, reduce energy consumption and simplify automation system design.

With a nominal output current of 5.6 A and a three-phase 380–480 V AC supply, the ACS180-04S-05A6-4 is suitable for small industrial motors used in conveyors, pumps, fans, mixers and compact production equipment. Its slim IP20 frame R1 design supports wall or DIN rail mounting inside electrical control panels.

Key Advantages

• Compact machinery variable frequency drive for industrial automation.
• 5.6 A nominal output current for reliable motor control.
• Three-phase 380–480 V AC input compatible with industrial power systems.
• Suitable for 2.2 kW light-duty or 1.5 kW heavy-duty motor applications.
• Integrated Safe Torque Off (STO) safety function.
• Built-in C3 EMC filter for industrial installations.
• Compact IP20 design for control cabinet installation.

Key Features

• ABB ACS180 machinery drive series.
• 5.6 A nominal output current.
• 2.2 kW nominal / light-duty power rating.
• 1.5 kW heavy-duty power rating.
• Three-phase 380–480 V AC input supply.
• Integrated Safe Torque Off (STO) functionality.
• Modbus RTU communication support.
• Built-in C3 EMC filter.
• Wall or DIN rail mounting options.

Technical Specifications

• Manufacturer: ABB
• Series: ACS180 Machinery Drives
• Model: ACS180-04S-05A6-4
• Product ID: 3AXD50000716661
• Product type: AC variable frequency drive
• Rated output power: 2.2 kW nominal / light duty
• Heavy-duty motor rating: 1.5 kW
• Rated output current: 5.6 A
• Heavy-duty output current: 4.0 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 47–63 Hz
• Protection rating: IP20
• Mounting type: Wall / DIN rail mounting
• Frame size: R1
• Dimensions (H × W × D): approx. 190 × 70 × 143 mm

Compact Motor Control for Machinery Applications

Variable frequency drives such as the ABB ACS180 regulate motor speed by adjusting output voltage and frequency. This helps machinery run more efficiently, improves process control and reduces mechanical stress on motors, belts, pumps and other driven equipment.

The ACS180 series is designed for machine builders who need essential drive functionality in a compact and reliable format. With integrated safety, communication support and flexible mounting options, it is well suited to both new machine designs and retrofit automation projects.

Typical Applications

• Compact machinery and OEM automation systems.
• Conveyors and material handling equipment.
• Pumps, fans and blowers.
• Mixers, dryers and processing machinery.
• Packaging and production equipment.
• Textile and light manufacturing machinery.
• Automatic gates, treadmills and auxiliary machine systems.

Trusted by Machine Builders Worldwide

ABB ACS180 machinery drives are widely used by machine builders and automation engineers to deliver compact, efficient and reliable motor control for industrial equipment.
