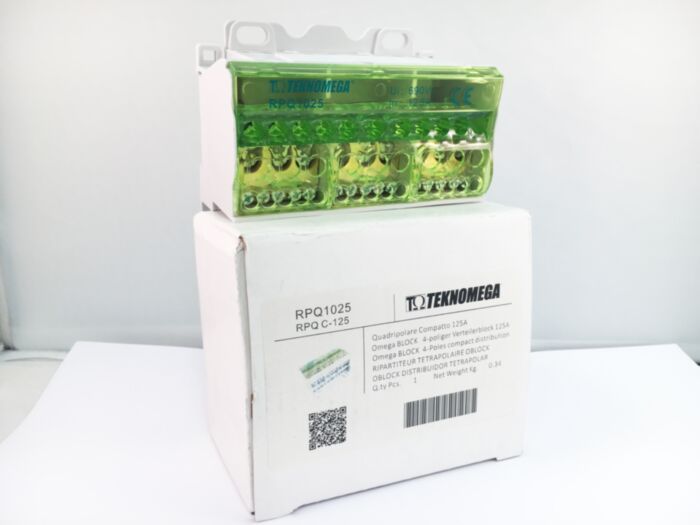

Teknomega RPQ1025 - Omega 4 Pole Compact Distribution Block 125A 7 Outputs
MPN: RPQ1025
Alt. SKU: RPQ C-100
Special Price
£17.34
£14.45
Regular Price
£24.77
Why Choose the Teknomega RPQ1025 Distribution Block?
The Teknomega RPQ1025 is a compact 4 pole DIN rail power distribution block designed for efficient three phase and neutral power distribution inside industrial switchboards and electrical control panels. Rated for 100 to 125 A, it allows a single incoming supply to be safely divided into multiple outgoing circuits while maintaining organised wiring and simplified panel layouts.
The unit features a robust self extinguishing PA6 UL94-V0 insulating body and high conductivity brass conductors to provide reliable electrical performance. A transparent removable protective cover prevents accidental contact with live parts while allowing easy inspection of the wiring connections during maintenance.
Key Features
- 4 pole distribution block for three phase and neutral power systems.
- 100–125 A rated current suitable for industrial switchboards.
- 7 outputs per phase with additional neutral outputs for flexible circuit distribution.
- DIN rail mounting for fast installation in electrical cabinets.
- Self extinguishing PA6 UL94-V0 insulation for improved electrical safety.
- Brass conductive terminals ensuring reliable conductivity.
- Transparent removable protective cover preventing accidental contact.
- Quick hook-up design allowing simplified installation and wiring.
- Halogen free construction suitable for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: RPQ1025
- Reference: RPQ C-125
- Product type: 4 pole DIN rail distribution block
- Rated current (In): 100–125 A
- Outputs: 7 outputs per phase with multiple neutral outputs
- Nominal insulation voltage (Ui): 1000 V
- Short circuit withstand current (Icw): 4.2 kA (1 s)
- Peak short circuit current (Ipk): 24 kA
- Input conductor size: 2.5 to 35 mm² (1.5–25 mm² with ferrule)
- Output conductor sizes: 1.5–16 mm² and 1.5–6 mm² depending on terminal
- Insulating body: PA6 UL94-V0, grey RAL 7035
- Terminal material: Brass with galvanised steel screws
- Protection cover: Transparent PC UL94-V2
- Protection degree: IP20
- Mounting: DIN rail
- Maximum operating temperature: +85 °C
- Dimensions (L × H × P): 98 × 75 × 49 mm
- Weight: approx. 320 g
- Standard compliance: EN / IEC 60947-7-1
Typical Applications
- Three phase power distribution in industrial switchboards.
- Electrical control panels and automation systems.
- Machine building and OEM electrical equipment.
- Main incomer or sub distribution wiring inside electrical cabinets.
- Commercial and industrial electrical installations.
Frequently Asked Questions
What is the Teknomega RPQ1025 used for?
The RPQ1025 distribution block splits a three phase and neutral electrical supply into multiple outgoing circuits inside industrial switchboards and electrical control panels.
How many outputs does the RPQ1025 provide?
This distribution block provides multiple outputs including 7 outputs per phase and additional neutral outputs, allowing flexible circuit distribution.
Is the RPQ1025 suitable for DIN rail mounting?
Yes. The block features quick installation onto standard DIN rails used in electrical cabinets and switchboards.
What cable sizes can be connected?
The main input terminals support conductors up to approximately 35 mm², while output terminals support smaller conductor sizes depending on the connection point.
Which standards does the RPQ1025 comply with?
The RPQ1025 complies with EN / IEC 60947-7-1, covering terminal blocks and auxiliary equipment used in low voltage switchgear.
Trusted by Panel Builders
Teknomega RPQ distribution blocks are widely used by electrical engineers and panel builders for safe, compact and reliable three phase power distribution in modern industrial switchboards.
| Manufacturer Part Number | RPQ1025 |
|---|---|
| Alternative Product SKU | RPQ C-100 |
| Manufacturer | Teknomega |
| Barcode | 8053685372599 |
| HS Code | 85369095 |
| Amperage | 125A |
| Outputs | 7 Outputs |
| Number of Poles | 4 Pole |
| Packed Quantity | 1 |
