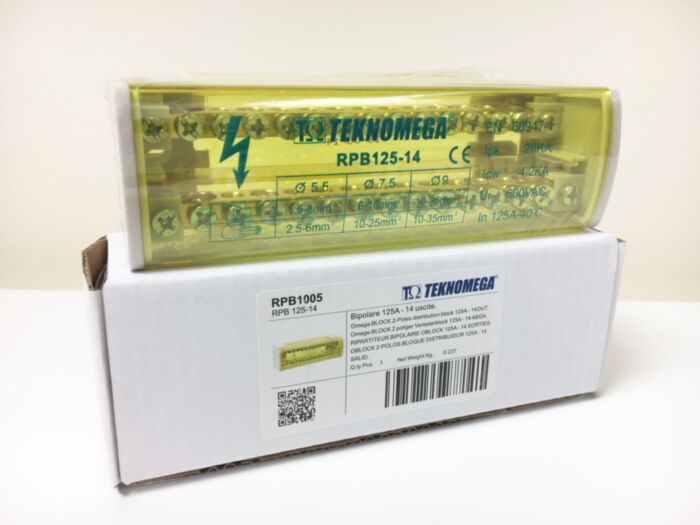

Teknomega RPB1005 - Omega 2 Pole Distribution Block 125A 14 Ouputs
MPN: RPB1005
Alt. SKU: RPB 125-14
Special Price
£9.59
£7.99
Regular Price
£13.69
Why Choose the Teknomega RPB1005 Distribution Block?
The Teknomega RPB1005 is a high-capacity 2-pole DIN rail distribution block designed to simplify power distribution within industrial switchboards and control panels. With a 125 A rated current and 14 output terminals, it allows a single incoming power supply to be efficiently distributed across multiple outgoing circuits, improving panel organisation and reducing wiring complexity.
Constructed with a self-extinguishing PA6 UL94-V0 insulating body and brass conductive terminals, the RPB1005 provides reliable electrical performance and mechanical durability. A removable transparent protective cover prevents accidental contact while still allowing easy inspection of the wiring connections.
Key Features
- 2-pole power distribution block for switchboard and panel installations.
- 125 A rated current suitable for high-load power distribution.
- 14 output terminals enabling efficient multi-circuit power branching.
- DIN rail mounting for quick and secure installation in electrical cabinets.
- Self-extinguishing PA6 UL94-V0 insulation for improved electrical safety.
- Brass conductive block ensuring reliable conductivity.
- Transparent removable protection cover preventing accidental contact.
- Halogen-free construction suitable for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: RPB1005
- Reference: RPB 125-14
- Product type: 2-pole DIN rail distribution block
- Rated current (In): 125 A
- Number of outputs: 14 terminals
- Nominal insulation voltage (Ui): 1000 V
- Short-circuit withstand current (Icw): 4.2 kA (1 s)
- Peak short-circuit current (Ipk): 20 kA
- Conductor material: Brass
- Insulating body: PA6 UL94-V0
- Protection cover: Transparent PC UL94-V2
- Protection degree: IP10
- Mounting: DIN rail
- Maximum operating temperature: +85 °C
- Dimensions (L × H × P): 132 × 46 × 51 mm
- Weight: approx. 200 g
- Standard compliance: EN / IEC 60947-7-1
Typical Applications
- Power distribution within industrial switchboards.
- Electrical control panels and automation systems.
- Machine building and OEM equipment.
- Multi-circuit power branching in electrical cabinets.
- Commercial and industrial electrical installations.
Frequently Asked Questions
What is the Teknomega RPB1005 used for?
The RPB1005 distribution block splits a single incoming electrical supply into multiple outgoing circuits within electrical panels and switchboards.
How many outputs does the RPB1005 provide?
This distribution block provides 14 output terminals, allowing several circuits to be connected from a single incoming supply.
Is the RPB1005 compatible with DIN rail mounting?
Yes. The unit is designed for quick installation on standard DIN rails used in industrial electrical cabinets.
What wire sizes can be connected?
The main input accepts conductors from approximately 10 to 35 mm², with smaller outputs supporting conductor sizes such as 1.5 to 6 mm² or 6 to 16 mm² depending on the terminal position.
Which standards does the RPB1005 comply with?
The distribution block complies with EN / IEC 60947-7-1, covering terminal blocks and auxiliary equipment used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega RPB distribution blocks are widely used by electrical engineers and panel builders for safe, organised and reliable power distribution within modern industrial switchboards.
| Manufacturer Part Number | RPB1005 |
|---|---|
| Alternative Product SKU | RPB 125-14 |
| Manufacturer | Teknomega |
| Barcode | 8053685372421 |
| HS Code | 85369095 |
| Amperage | 125A |
| Outputs | 14 Outputs |
| Number of Poles | 2 Pole |
| Packed Quantity | 1 |
