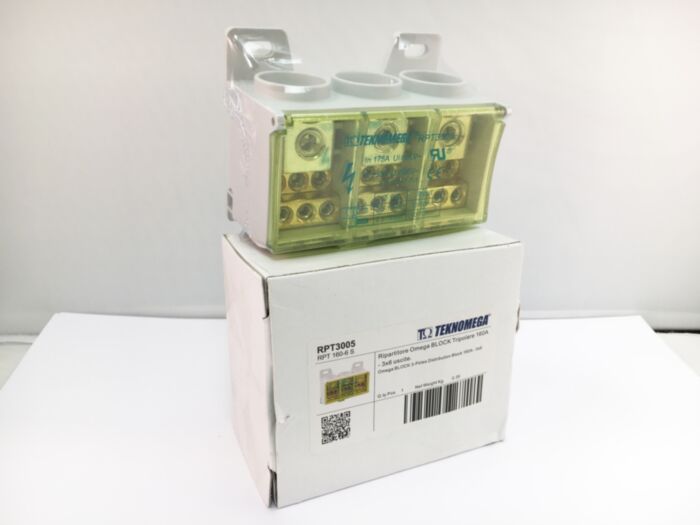

Teknomega RPT3005 - Omega 3 Pole Distribution Block 160A 6 Outputs
MPN: RPT3005
Alt. SKU: RPT 160
Special Price
£44.88
£37.40
Regular Price
£59.84
Why Choose the Teknomega RPT3005 160A Modular Distribution Block?
The Teknomega RPT3005 is a robust and compact modular distribution block rated for 160 ¯A continuous operation. Designed for efficient power distribution in industrial and commercial panels, it features IP20 touch-safe protection, halogen-free PA66 body material, and multiple connection ports for flexible wiring. Ideal for panel builders and OEMs, it offers easy DIN rail or baseplate mounting, and is fully compliant with EN 60947-7-1 standards. Its transparent cover enhances safety while maintaining quick access for inspection or reconfiguration. Whether used in main switchboards or automation cabinets, the RPT3005 ensures safe, space-saving, and high-performance power branching.
Technical Specifications
- Manufacturer: Teknomega
- Product Code: RPT3005
- Current Rating (In): 160 ¯A
- Rated Operational Voltage (Ue): 1000 ¯V AC / DC
- Short-Circuit Withstand: Icw 11 ¯kA (1 ¯s), Ipk 30 ¯kA
- Standards Compliance: EN 60947-7-1
- Housing Material: Self-extinguishing PA66 (halogen-free)
- Protection Rating: IP20 with transparent cover
- Mounting Options: DIN rail or screw-mounted to backplate
- Temperature Range: “25 ¯Â°C to +85 ¯Â°C
- Colour: Blue
- Dimensions (approx): 96 — 51 — 42 ¯mm
Applications
- Low-voltage power distribution panels
- Switchgear assemblies and MCCs
- Automation and machine control panels
- Renewable energy and EV charger boards
Frequently Asked Questions
- What is the current and short-circuit handling capacity?
- What cable sizes and terminals can the RPT3005 accommodate?
- What does IP20 protection mean for this product?
- Is it DIN rail mountable or chassis-mounted?
- Why is halogen-free construction important?
Trusted by Panel Builders Across Europe
œWe use Teknomega ™s RPT series for every automation cabinet. The RPT3005 offers the perfect combination of current capacity, safety, and wiring flexibility.
” Panel Design Lead, Italian OEM
The RPT3005 is rated for 160 ¯A continuous operation, with a short-circuit withstand of 11 ¯kA (1 second) and peak current of 30 ¯kA, per EN 60947-7-1.
It accepts multiple conductors ”typically up to 35 ¯mm² (AWG 2) for outgoing terminals. The input terminal supports up to 70 ¯mm² (AWG 0) copper conductors depending on torque and setup.
IP20 protection guards against accidental contact with fingers or tools, providing safe access in control cabinets. It does not protect against liquids.
The RPT3005 supports both DIN rail (35 ¯mm) and direct screw mounting, giving installers flexibility in tight or modular configurations.
Halogen-free PA66 reduces the release of toxic and corrosive gases in fire situations, improving safety in enclosed electrical environments.
| Manufacturer Part Number | RPT3005 |
|---|---|
| Alternative Product SKU | RPT 160 |
| Manufacturer | Teknomega |
| Amperage | 160A |
| Outputs | 6 Outputs |
| Number of Poles | 3 Pole |
| Packed Quantity | 1 |
| Product Lead Time | In Stock Delivery Next working day |
