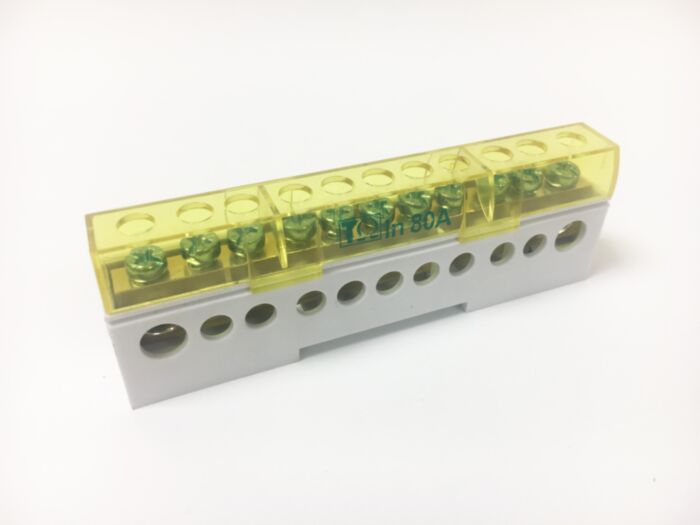

Teknomega ITB1005 - Omega Insulated 1 Pole Distribution Block 80A - 11 Ways
MPN: ITB1005
Alt. SKU: ITB 80-11 W
Special Price
£4.06
£3.38
Regular Price
£5.41
Why Choose the Teknomega ITB1005 Distribution Terminal Block?
The Teknomega ITB1005 is a compact single-pole insulated distribution terminal block designed for safe and organised electrical power distribution in industrial switchboards and control panels. Rated for 80 A with 11 connection terminals, it enables a single incoming conductor to be efficiently distributed to multiple outgoing circuits while maintaining a clean and reliable wiring layout.
The block features a durable PA6 UL94-V0 self-extinguishing insulating body and a brass conduction block to ensure excellent electrical conductivity and mechanical strength. A transparent polycarbonate protective cover helps prevent accidental contact with live terminals while allowing visual inspection of connections during installation and maintenance.
Key Features
- Single-pole insulated distribution terminal block for compact electrical distribution.
- 80 A rated current suitable for industrial switchboards and control panels.
- 11 connection terminals enabling flexible circuit branching.
- DIN rail mounting for quick installation in electrical cabinets.
- Self-extinguishing PA6 UL94-V0 housing for enhanced electrical safety.
- Brass conductor block ensuring reliable electrical conductivity.
- Transparent PC protective cover allowing inspection of connections.
- Halogen-free construction suitable for modern industrial installations.
Technical Specifications
- Manufacturer: Teknomega
- Model: ITB1005
- Reference: ITB 80-11 W
- Product type: 1-pole insulated distribution terminal block
- Rated current (In): 80 A
- Number of connections: 11 terminals
- Nominal insulation voltage (Ui): 1000 V
- Main conductor size: 4 to 16 mm² (2.5–16 mm² with ferrules)
- Secondary conductor size: 1.5 to 6 mm²
- Tightening torque: 2 Nm (main) / 1.5 Nm (secondary)
- Insulating body: PA6 UL94-V0, grey RAL 7035
- Conductor block: Brass
- Cover: Transparent PC UL94-V0
- Protection degree: IP20
- Mounting: DIN rail or ITB2000 support
- Maximum operating temperature: +105 °C
- Length: approx. 95 mm
- Weight: approx. 0.07 kg
- Standard compliance: EN / IEC 60947-7-1
Typical Applications
- Electrical distribution within industrial switchboards.
- Control panels and automation systems.
- Machine building and OEM electrical equipment.
- Phase, neutral or protective conductor distribution points.
- Compact wiring distribution in electrical cabinets.
Frequently Asked Questions
What is the Teknomega ITB1005 used for?
The ITB1005 is a single-pole distribution terminal block used to split one incoming electrical supply into multiple outgoing connections inside control panels or switchboards.
How many connections does the ITB1005 provide?
The terminal block provides 11 connection terminals allowing multiple circuits to be connected from one incoming conductor.
Is the ITB1005 DIN rail mountable?
Yes. The block is designed for direct mounting on standard DIN rails or on the dedicated ITB2000 support accessory.
What cable sizes can be connected?
The main terminals support conductors from approximately 4 to 16 mm², while smaller terminals accept wires from around 1.5 to 6 mm².
Which standards does the ITB1005 comply with?
The terminal block complies with EN / IEC 60947-7-1, covering terminal blocks used in low-voltage switchgear.
Trusted by Panel Builders
Teknomega insulated distribution terminal blocks are widely used by panel builders and electrical engineers to create safe, organised and reliable wiring layouts in industrial electrical cabinets.
| Manufacturer Part Number | ITB1005 |
|---|---|
| Alternative Product SKU | ITB 80-11 W |
| Manufacturer | Teknomega |
| Barcode | 8050503319187 |
| HS Code | 73269098 |
| Amperage | 80A |
| Number of Poles | 1 pole |
| Connections | 11 Way |
| Packed Quantity | 1 |
