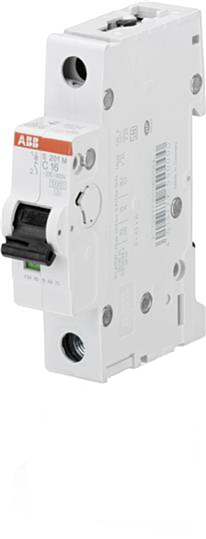

ABB s201m-c63 mcb s200m 1 pole c type 63a

Why Choose the ABB S201M-C63 Miniature Circuit Breaker?

The ABB S201M-C63 is a high quality single pole miniature circuit breaker (MCB) designed to provide reliable overload and short-circuit protection for residential, commercial and industrial electrical installations. Part of the trusted ABB System pro M compact S200M series, this MCB is engineered for dependable circuit protection in demanding low voltage distribution systems.

This miniature circuit breaker uses two tripping mechanisms: a delayed thermal trip for overload protection and an electromechanical trip for short-circuit protection. Its Type C tripping characteristic is suitable for circuits with moderate inrush currents, making it a practical choice for general distribution, lighting, small motors and mixed electrical loads.

With a rated current of 63 A, a 1 pole configuration and a 10 kA breaking capacity at 230/400 V AC, the ABB S201M-C63 provides compact, reliable and standards-compliant circuit protection for electrical panels and distribution boards.

Key Advantages

• Compact single pole miniature circuit breaker for circuit protection.
• 63 A rated current for higher load single pole circuits.
• Type C tripping curve suitable for circuits with moderate inrush currents.
• 10 kA breaking capacity at 230/400 V AC.
• Dual tripping mechanisms for overload and short-circuit protection.
• Complies with IEC/EN 60898-1 and IEC/EN 60947-2.
• DIN rail mounting for fast installation in distribution boards and panels.

Key Features

• ABB System pro M compact S200M series.
• 63 A rated current.
• 1 pole protected configuration.
• Type C tripping characteristic.
• 10 kA rated breaking capacity.
• Current limiting miniature circuit breaker design.
• Thermal magnetic tripping technology.
• Compatible with ABB modular auxiliary contact accessories.

Technical Specifications

• Manufacturer: ABB
• Series: System pro M compact S200M
• Model: S201M-C63
• Product ID: 2CDS271001R0634
• EAN: 4016779543941
• Product type: Miniature circuit breaker
• Rated current: 63 A
• Number of poles: 1
• Tripping characteristic: Type C
• Rated breaking capacity: 10 kA at 230/400 V AC
• Rated operational voltage: 230/400 V AC
• Rated DC voltage: 72 V DC
• Standards: IEC/EN 60898-1, IEC/EN 60947-2
• Mounting type: DIN rail
• Terminal type: Cage screw terminal
• Width: 17.5 mm
• Height: approx. 88 mm
• Depth: approx. 69 mm

Reliable Protection for Low Voltage Circuits

Miniature circuit breakers such as the ABB S201M-C63 help protect electrical wiring and equipment by automatically disconnecting the circuit during overload or short-circuit conditions. This helps reduce the risk of electrical damage while supporting safer operation of low voltage installations.

The Type C characteristic makes this MCB suitable for general distribution circuits and loads where moderate inrush currents may occur. Its compact DIN rail format allows simple integration into control panels, switchboards and distribution boards.

Typical Applications

• Commercial distribution boards.
• Industrial control panels.
• Lighting and power circuits.
• Small motor and transformer circuits.
• Automation and machinery panels.
• Residential, commercial and industrial low voltage installations.

Trusted by Electrical Professionals Worldwide

ABB System pro M compact circuit protection devices are trusted by electricians, panel builders and industrial engineers for reliable protection, compact installation and dependable performance in low voltage electrical systems.
