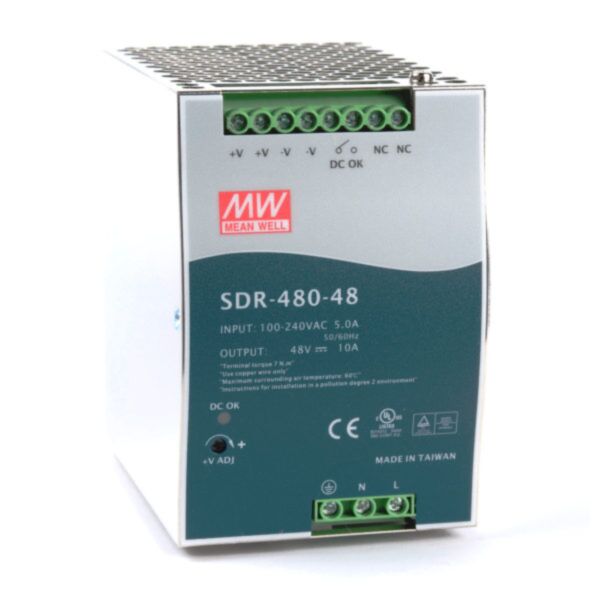

SDR-480-48 Power Supply 90-264VAC 1 phase input, output 48 volts DC 10.0 Amps
MPN: SDR-480-48
Alt. SKU: SDR48048
£237.60
£198.00
Why Choose the Mean Well SDR-480-48?
The Mean Well SDR-480-48 is a heavy-duty industrial-grade 480 W DIN rail power supply engineered to deliver stable 48 V DC output at up to 10 A for larger control panels, automation systems, embedded electronics and auxiliary power circuits. Its robust design and compact DIN rail form factor make it ideal for professional electrical installations where reliable high-current 48 V DC power is essential.
Designed for demanding industrial and commercial environments, the SDR-480-48 features a universal AC input range, efficient fan-free convection cooling and comprehensive protection functions. Whether you are upgrading a control cabinet or replacing an existing supply, this genuine Mean Well model delivers quiet, low-maintenance performance and strong reliability.
Product Code: Mean Well SDR-480-48
Key Benefits
- High-current 48 V DC output: Provides regulated 48 V DC at up to 10 A for industrial and automation loads.
- 480 W rated power: Ideal for larger control panels and high-current systems.
- Wide input range: Accepts a broad AC input for flexible installation across regions.
- Fan-free convection cooling: Quiet, low-maintenance operation without moving parts.
- DIN rail mountable: Designed for secure installation on standard TS-35 rails.
- Comprehensive protections: Built-in safeguards including short circuit, overload and over-voltage protection help protect both the PSU and connected equipment.
Technical Specifications
- Manufacturer: Mean Well
- Model: SDR-480-48
- Product type: DIN rail power supply
- Rated output power: 480 W
- Output voltage: 48 V DC
- Output current: Up to 10 A
- Input voltage range: Universal AC input
- Cooling method: Free air convection (fanless)
- Mounting: DIN rail TS-35
- Protection functions: Short circuit, overload, over-voltage
Compatibility
The Mean Well SDR-480-48 is suitable for industrial control panels, automation systems, embedded systems and electrical circuits that require a dependable 48 V DC supply with high current capability. Always confirm your load’s voltage and current requirements align with this unit’s output before installation.
Applications
- Industrial control panels and automation systems
- PLC auxiliary power distribution
- Machine control and embedded electronics
- Sensors, actuators and signalling circuits
- OEM power distribution and factory automation builds
Supplied as a new, unused genuine Mean Well power supply suitable for professional electrical installations.
Frequently Asked Questions
What output does the Mean Well SDR-480-48 provide?
The SDR-480-48 delivers a regulated 48 V DC output at up to 10 A, providing a total rated power of 480 W suitable for high-current industrial and automation applications.
Where is this power supply typically used?
It’s commonly used in large control panels, automation systems, PLC racks and embedded applications where a reliable, high-current 48 V DC supply is essential.
Does the SDR-480-48 require a fan?
No. The unit uses fan-free convection cooling, enabling quiet operation with reduced maintenance needs.
What protection features are included?
It includes protection against short circuit, overload and over-voltage to help safeguard both the power supply and connected equipment.
Is this suitable for DIN rail control panels?
Yes. The SDR-480-48 is designed for DIN rail mounting and is widely used in professional electrical cabinets and industrial enclosures.
Common Search Terms
SDR-480-48, Mean Well SDR-480-48, 48 V 480 W DIN rail power supply, industrial 48 V DC PSU, high-current DIN rail PSU.
| Manufacturer Part Number | SDR-480-48 |
|---|---|
| Barcode | 4711287422411 |
| Manufacturer | Meanwell |
| Output Voltage | 48VDC |
| Output Current | 10A |
| Input Phases | Single Phase |
| Alternative Product SKU | SDR48048 |
