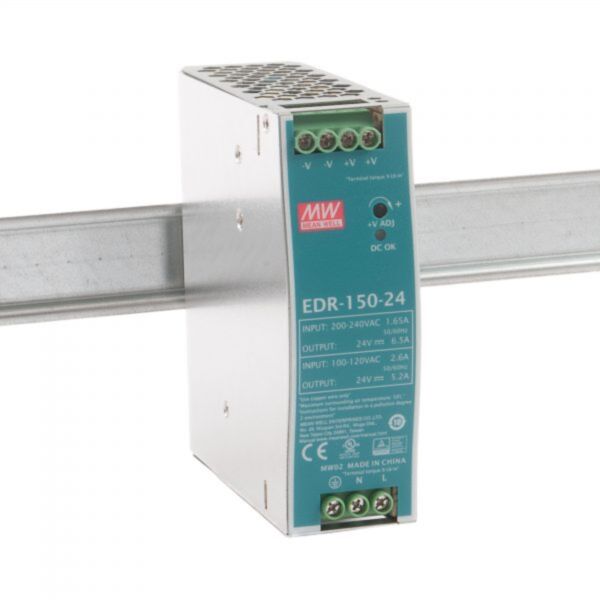

EDR-150-24 Power Supply 90-264VAC 1 phase input, output 24 volts DC 6.5 Amps

Why Choose the Mean Well EDR-150-24 DIN Rail Power Supply?

The Mean Well EDR-150-24 is a robust and efficient 150W single-output power supply designed for industrial applications. Delivering a 24V DC output at up to 6.5A, it offers high efficiency and comprehensive protection features, making it ideal for use in control panels, automation systems, and other demanding environments. Its slim design and DIN rail mounting capability ensure easy integration into various setups.

Key Takeaways

• Output: 24V DC at 6.5A (156W at 230VAC input)
• Input Voltage: 90–264V AC / 127–370V DC
• High efficiency up to 87%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Compact dimensions: 113.5 x 40 x 125.2 mm (L x W x H)
• Operating temperature: -20°C to +60°C
• Compliance: UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1

Frequently Asked Questions About the Mean Well EDR-150-24

• What is the output voltage and current of the EDR-150-24?
• What are the input voltage ranges supported?
• What protection features are included?
• How is the unit cooled?
• What are the mounting options?

Mean Well EDR-150-24 Overview

The EDR-150-24 is part of Mean Well's EDR series of DIN rail power supplies, known for their slim design and cost-effectiveness. This model delivers a stable 24V DC output at up to 6.5A, suitable for a wide range of industrial applications. Its robust construction and comprehensive protection mechanisms ensure reliable performance in challenging environments.

Speed & Safety Benefits

• Quick installation: DIN rail mounting simplifies setup
• Enhanced safety: Built-in protections guard against common electrical issues
• Efficient operation: High efficiency reduces energy consumption and heat generation

Key Features of the Mean Well EDR-150-24

• Output: 24V DC at 6.5A (156W at 230VAC input)
• Input Voltage: 90–264V AC / 127–370V DC
• High efficiency up to 87%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Compact dimensions: 113.5 x 40 x 125.2 mm (L x W x H)
• Operating temperature: -20°C to +60°C
• Compliance: UL508, TUV EN623
