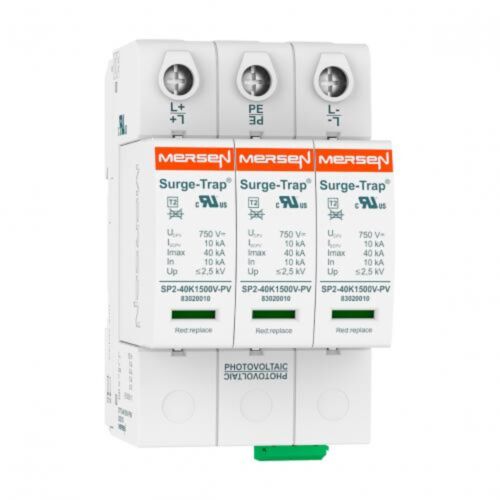

Mersen Surge Protector Type 2 SPD 3 Pole 1000 Volt D/C 20KA Y-PV
MPN: 83020140
Alt. SKU: STPT2-40K1000V-YPV
Special Price
£121.84
£101.53
Regular Price
£162.44
Why Choose the STPT2-40K1000V-YPV Surge Protection Device?
The STPT2-40K1000V-YPV is a Type 2 surge protection device engineered for photovoltaic installations up to 1000V DC. Designed to safeguard sensitive PV systems, it reliably diverts transient overvoltages with a maximum discharge current (Imax) of 40kA (8/20µs), minimising downtime and extending equipment lifespan.
Featuring a 3-pole, pluggable design in just 3 modules, this SPD is compact, ensuring rapid installation and straightforward maintenance. Ideal for modern solar arrays, it protects your assets and maintains operational performance in demanding industrial environments.
Product Code: 83020140
Key Benefits
- High surge current capacity with 40kA maximum discharge current for robust protection.
- Compact 3-module pluggable design allows easy installation and maintenance.
- Reliable indication system with green OK status for quick visual checks.
- Specifically designed for photovoltaic systems up to 1000V DC ensuring optimal compatibility.
- Meets IEC Class II and UL Type 2 standards for assured safety and performance.
Compatibility
This surge protection device is compatible with photovoltaic systems configured in YPV arrangement operating up to 1000V DC. It supports protection modes L+/PE, L-/PE, and L+/L-, making it suitable for a wide range of solar energy installations and energy storage systems requiring Type 2 surge protection.
Applications
- Photovoltaic solar power installations
- Energy storage systems
- Industrial solar arrays
- Renewable energy power plants
- Protection of DC power distribution networks
Technical Specifications
- Item number: 83020140
- Catalogue No: STPT2-40K1000V-YPV
- Description: Surge Protection Device Type 2, 40kA Imax (8/20), Y PV, 1000Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules
- EAN/UPC Code: 8435297850878
- RoHS Compliant: Yes
- IEC SPD Type: Class II
- UL SPD Type: Type 2 Component Assembly
- Format: Pluggable
- AC or DC: DC
- Nominal Discharge Current (In) (8/20): 20 kA
- Max Discharge Current : Imax (8/20): 40 kA
- Protection Modes: L+/PE, L-/PE, L+/L-
- System Configuration: YPV
- Short Circuit Withstand (ISCPV): 10 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace)
- Torque Rating: 3 Nm
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Up at In (L-PE): ≤4 kV
- MCOV DC+ DC-: 1000 V
- MCOV DC+ G: 1000 V
- MCOV DC- G: 1000 V
- VPR DC+ DC-: 3000 V
- VPR DC+ G: 3000 V
- VPR DC- G: 3000 V
- Replacement Plug L1: 83020006
- Product Width: 54 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.356 kg
- Sell Pack Width: 63 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Photovoltaic & Energy Storage SPDs
- Product Weight: 0.316 kg
Frequently Asked Questions
What is the maximum voltage this SPD can handle?
The STPT2-40K1000V-YPV is designed for photovoltaic systems up to 1000V DC.
How does the indication system work?
The device features a green indicator showing OK status; if the indicator is not green, the SPD should be replaced.
Can this SPD be used in AC systems?
No, this model is specifically designed for DC photovoltaic systems.
Is the device compliant with international standards?
Yes, it complies with IEC Class II and UL Type 2 standards.
Common Search Terms
SPD 1000V DC, photovoltaic surge protector, Type 2 surge protection device, solar panel SPD, pluggable surge protector, 40kA surge arrester, YPV system SPD, DC surge protection, photovoltaic system safety device.
| Manufacturer Part Number | 83020140 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297850878 |
| Height | 70mm |
| Width | 54mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 3 Pole |
| Voltage | 1000VDC |
| Maximum Continuous Voltage | 1060V |
| Nominal Discharge Current | 20Ka |
| System Type | Y-PV |
| Alternative Product SKU | STPT2-40K1000V-YPV |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
