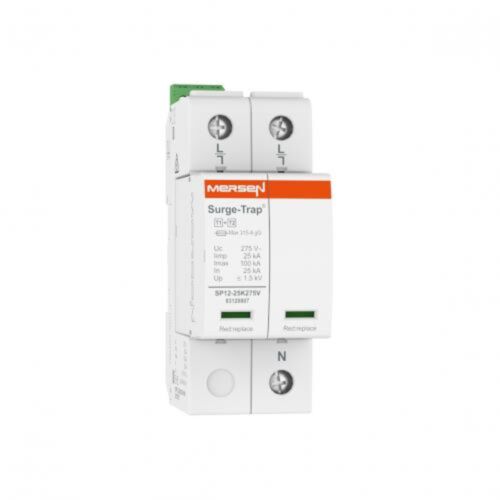

Mersen Surge Protector Type 1+2 SPD 1 Pole 230 Volt 25KA L-N Remote Indication
MPN: 83120153
Alt. SKU: STPT12-25K275V-1PM
Special Price
£143.99
£119.99
Regular Price
£191.98
Why Choose the Surge Protection Device Type 1+2, 25kA Iimp (10/350), STPT12-25K275V-1PM?
This high-performance Type 1+2 surge protection device is engineered for single-phase 230V installations, delivering robust defence against both direct lightning strikes and switching surges up to 25kA (10/350 μs) between Line and Neutral. The pluggable, single-pole unit is quick to install and maintain, featuring remote indication for rapid status monitoring and integration with building management systems.
Designed with a compact 2-module housing, the STPT12-25K275V-1PM is ideal for space-critical distribution boards, offering reliable and long-lasting protection for sensitive equipment across industrial, commercial, and infrastructure applications.
Technical Specifications
- Item number: 83120153
- Catalogue No: STPT12-25K275V-1PM
- Description: Surge Protection Device Type 1+2, 25kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Pluggable, 2 Modules, Remote indication
- EAN/UPC Code: 8435297859062
- RoHS Compliant: Yes
- IEC SPD Type: Class I+II
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 230
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 100 kA
- Protection Modes: L - N / L-PE / N-PE
- System Configuration: TNS, TNC, TT (only L-N)
- Lightning Impulse Current (10/350) (LIMP): 25 kA
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace) Microswitch
- Number of Poles: 1-pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 315 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug L1: 83120007
- Product Width: 36 mm
- Product Length: 76 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.38 kg
- Sell Pack Width: 42 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.345 kg
Product Code: STPT12-25K275V-1PM
Key Benefits
- Comprehensive surge protection with Type 1+2 classification for direct lightning and switching surges.
- High discharge capacity of 25kA (10/350 μs) ensures robust defence against severe surges.
- Pluggable design allows for quick installation and easy replacement without rewiring.
- Remote indication feature enables real-time monitoring and integration with building management systems.
- Compact 2-module housing ideal for space-saving in distribution boards.
- Durable PA66 CT1 housing material ensures long service life and reliability.
- Suitable for multiple system configurations including TNS, TNC, and TT.
Compatibility
The STPT12-25K275V-1PM is compatible with single-phase 230V AC electrical systems and can be installed in TNS, TNC, and TT system configurations (only L-N protection in TT). It fits standard DIN rail mounting systems and is designed for integration in power line surge protection setups requiring 1-pole devices with remote indication capabilities.
Applications
- Industrial power distribution boards requiring high-level surge protection.
- Commercial buildings with sensitive electronic equipment.
- Infrastructure installations exposed to frequent lightning activity.
- Renewable energy systems needing reliable surge defence.
- Data centres and telecommunication facilities for equipment safeguarding.
Frequently Asked Questions
What is the maximum surge current this device can handle?
The device can handle a maximum discharge current (Imax) of 100 kA (8/20 μs) and a lightning impulse current (LIMP) of 25 kA (10/350 μs).
Can this SPD be used in three-phase systems?
This particular model is designed for single-phase 230V systems and is a 1-pole device. For three-phase systems, a suitable multi-pole SPD should be selected.
Does the device provide remote status indication?
Yes, it features a remote indication system with a green (OK) / not green (replace) microswitch for easy monitoring.
Is the device RoHS compliant?
Yes, the STPT12-25K275V-1PM complies with RoHS standards.
What is the mounting method for this SPD?
The device is designed for DIN rail mounting, making installation straightforward in standard distribution boards.
Common Search Terms
surge protection device, SPD Type 1+2, 25kA surge protector, single-phase surge protector, 230V surge protection, pluggable SPD, DIN rail SPD, remote indication surge protector, lightning surge protection, industrial surge protection device
| Manufacturer Part Number | 83120153 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297859062 |
| Height | 76mm |
| Width | 36mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 1 pole |
| Voltage | 230V |
| Maximum Continuous Voltage | 275V |
| Nominal Discharge Current | 25Ka |
| Remote Indication | Yes |
| System Type | L-N |
| Alternative Product SKU | STPT12-25K275V-1PM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
