Mersen Surge Protector Type 2+3 SPD 2 Pole 120 Volt 10KA TT/TNS EMI Remote Indication
MPN: 83230401
Alt. SKU: STET23-20K150V-SPM
Special Price
£128.77
£107.31
Regular Price
£174.25

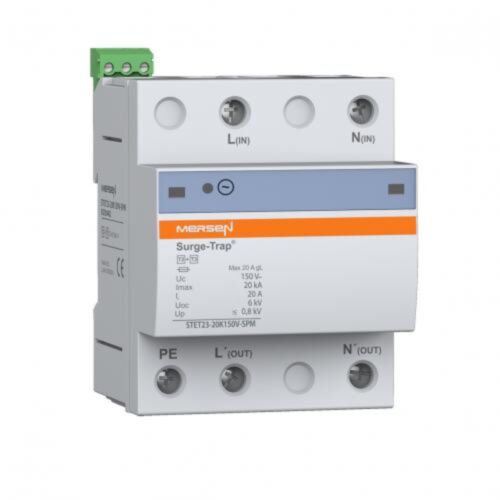

Why Choose the Surge Protection Device Type 2+3, 20kA Imax (8/20), 1Ph+N, 120/-V, EMI Filter, SP TT/TNS, 2 Poles, Monobloc, 4 Modules, Remote Indication STET23-20K150V-SPM?
Engineered for robust surge protection, this device combines Type 2+3 performance to guard single-phase TT/TNS installations against transient overvoltages. With a high 20kA Imax (8/20) surge capacity and integrated EMI filter, it ensures equipment reliability and system integrity in critical environments.
The monobloc, 4-module design streamlines DIN rail installation, offering versatile deployment in compact panels. Remote indication functionality enables simple integration with monitoring systems, supporting proactive maintenance and maximising operational uptime.
Technical Specifications
- Item number: 83230401
- Catalogue No: STET23-20K150V-SPM
- Description: Surge Protection Device Type 2+3, 20kA Imax (8/20), 1Ph+N, 120/-V, EMI filter, SP TT/TNS, 2 Poles, Monobloc, 4 Modules, Remote indication
- EAN/UPC Code: 8435297850403
- RoHS Compliant: Yes
- IEC SPD Type: Class II + III
- Format: Monobloc
- Nominal Operating Volt Rating (Un): 120
- AC or DC: AC
- Protection Modes: L-N / N-PE
- System Configuration: TT, TNS
- Combined Discharge Voltage (1,2/50) (Uoc): 6 kV
- EMI Filter Common Mode: 82 dB
- EMI Filter Differential Mode: 74 dB
- Design Details: EMI filter
- Indication System: Yes
- Indication System Type: LED Microswitch / 3 pin dry contact
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 20 A [gG]
- Installation Mounting: DIN rail
- Uc (L-N): 150 V
- Up at In (L-PE): ≤0,8 kV
- Product Width: 72 mm
- Product Length: 69 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.364 kg
- Sell Pack Width: 78 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.322 kg
Product Code: 83230401
Key Benefits
- High surge capacity of 20kA Imax (8/20) for superior transient overvoltage protection.
- Integrated EMI filter providing up to 82 dB common mode and 74 dB differential mode noise suppression.
- Compact monobloc design with 4 modules for easy DIN rail mounting and space-saving installation.
- Remote indication via LED microswitch and 3-pin dry contact for real-time status monitoring.
- Compatible with TT and TNS system configurations, ensuring versatile application.
- Robust construction with a torque rating of 3 Nm and maximum back-up fuse of 20 A [gG].
Compatibility
This surge protection device is compatible with single-phase (1Ph+N) AC electrical systems operating at 120 V nominal voltage. It is suitable for TT and TNS earthing systems and supports protection modes L-N and N-PE. Designed for DIN rail mounting, it integrates seamlessly into standard electrical distribution panels.
Applications
- Protection of sensitive electronic equipment in residential, commercial, and industrial installations.
- Use in power distribution boards for TT and TNS earthing systems.
- Integration into systems requiring EMI noise suppression alongside surge protection.
- Ideal for installations where remote status monitoring of surge protection devices is necessary.
- Suitable for use in environments with frequent transient overvoltages or lightning surges.
Frequently Asked Questions
What does the 20kA Imax rating mean?
The 20kA Imax rating indicates the maximum surge current the device can safely handle during a transient event, measured with an 8/20µs waveform. It ensures the device can protect your system from high-energy surges.
Can this device be used in three-phase systems?
This particular model is designed for single-phase plus neutral (1Ph+N) systems. For three-phase systems, a different SPD model suited to that configuration should be used.
What is the purpose of the EMI filter in this device?
The EMI filter reduces electromagnetic interference in both common and differential modes, protecting sensitive equipment from noise that can cause malfunctions or data errors.
How does the remote indication work?
The remote indication uses an LED microswitch and a 3-pin dry contact to signal the operational status of the SPD, allowing integration with building management or monitoring systems for proactive maintenance.
Common Search Terms
surge protection device, SPD Type 2+3, 20kA surge protector, EMI filter SPD, DIN rail SPD, single-phase surge protector, remote indication surge device, TT TNS surge protection, 120V surge protector, power line SPD
| Manufacturer Part Number | 83230401 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297850403 |
| Height | 69mm |
| Width | 72mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 120V |
| Maximum Continuous Voltage | 150V |
| Nominal Discharge Current | 10Ka |
| Remote Indication | Yes |
| System Type | TT/TNS |
| Alternative Product SKU | STET23-20K150V-SPM |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
