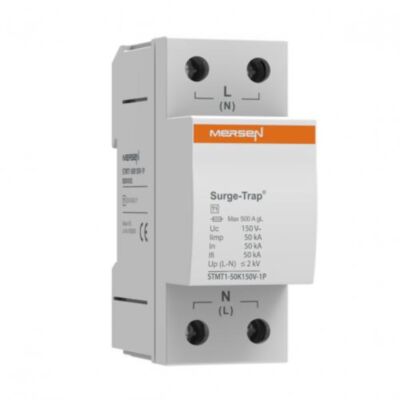

Mersen Surge Protector Type 2+3 SPD 2 Pole 120 Volt 10KA TNS
MPN: 83230114
Alt. SKU: STPT23-20K150V-2P
Special Price
£53.68
£44.73
Regular Price
£72.64
Why Choose the STPT23-20K150V-2P Surge Protection Device?
Engineered for reliable defence against transient overvoltages, the Type 2+3 Surge Protection Device delivers a robust 20kA Imax (8/20) rating. Designed for single-phase + neutral (1Ph+N) TNS systems, it efficiently safeguards sensitive equipment in industrial and commercial installations.
Featuring a compact, pluggable 2-module, 2-pole design for quick maintenance and replacement, this SPD operates at 120V and integrates seamlessly with your distribution board. Trust in proven surge resilience and ease of installation to maintain operational uptime and protect critical assets.
Product Code: STPT23-20K150V-2P
Key Benefits
- High surge current capacity of 20kA (8/20 µs) for superior protection.
- Compact and pluggable 2-module design enables easy installation and maintenance.
- Suitable for single-phase plus neutral TNS systems, ensuring broad compatibility.
- Visual indication system with green (OK) / not green (replace) status for quick diagnostics.
- Robust housing material (PA66 CT1) for durability in industrial environments.
- DIN rail mounting for straightforward integration into existing distribution boards.
Compatibility
This surge protection device is compatible with 120V AC single-phase plus neutral (1Ph+N) TNS electrical systems. It is designed to work with systems employing a maximum back-up fuse rating of 63 A [gG] and fits standard DIN rail mounting configurations. The device is suitable for protecting sensitive equipment in both industrial and commercial installations.
Applications
- Industrial power distribution boards
- Commercial building electrical installations
- Protection of sensitive electronic equipment from transient overvoltages
- Surge protection in TNS system configurations
- Replacement and maintenance in existing surge protection setups
Technical Specifications
- Item number: 83230114
- Catalogue No: STPT23-20K150V-2P
- Description: Surge Protection Device Type 2+3, 20kA Imax (8/20), 1Ph+N, 120/-V, 2+0 TNS, 2 Poles, Pluggable, 2 Modules
- EAN/UPC Code: 8435297850991
- RoHS Compliant: Yes
- IEC SPD Type: Class II + III
- Format: Pluggable
- Nominal Operating Volt Rating (Un): 120
- AC or DC: AC
- Max Discharge Current : Imax (8/20): 20 kA
- Protection Modes: L-PE / N-PE
- System Configuration: TNS
- Combined Discharge Voltage (1,2/50) (Uoc): 10 kV
- Short Circuit Withstand (ISCCR): 25 kA
- Indication System: Yes
- Indication System Type: Green (OK) / Not green (replace)
- Number of Poles: 2-Pole
- Torque Rating: 3 Nm
- Max. Back-Up Fuse: 63 A [gG]
- Housing Material: PA66 CT1
- MOV Response Time: ≤25
- Installation Mounting: DIN rail
- Replacement Plug L1: 83230001
- Product Width: 36 mm
- Product Length: 70 mm
- Product Height: 90 mm
- Sell Pack Quantity: 1 EA
- Sell Pack Weight: 0.21 kg
- Sell Pack Width: 42 mm
- Sell Pack Length: 117 mm
- Sell Pack Height: 90 mm
- Product group: Power Line SPDs
- Product Weight: 0.18 kg
Frequently Asked Questions
What type of electrical system is this SPD designed for?
The STPT23-20K150V-2P is designed for single-phase plus neutral (1Ph+N) TNS systems operating at 120V AC.
How does the indication system work?
The device features a visual indication system that shows green when the SPD is functioning correctly and changes colour when replacement is needed.
Can this SPD be installed on a DIN rail?
Yes, the product is designed for easy installation on standard DIN rails.
What is the maximum surge current this device can handle?
It can handle a maximum discharge current (Imax) of 20 kA (8/20 µs waveform).
Common Search Terms
surge protection device, SPD 20kA, type 2+3 surge protector, 120V surge protector, pluggable SPD, TNS system surge protection, industrial surge protection, DIN rail SPD, 2-pole surge protector
| Manufacturer Part Number | 83230114 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8435297850991 |
| Height | 70mm |
| Width | 36mm |
| Depth | 90mm |
| HS Code | 85363090 |
| Country of Manufacture | Spain |
| Manufacturer | Mersen |
| Number of Poles | 2 Pole |
| Voltage | 120V |
| Maximum Continuous Voltage | 150V |
| Nominal Discharge Current | 10Ka |
| System Type | TNS |
| Alternative Product SKU | STPT23-20K150V-2P |
Write Your Own Review
Protection system of coordinated stages: Type 1, 2 and 3 SPDs
The SPDs of a surge protection system must be able to withstand the discharged current and provide a Ures level (residua l voltage) lower than the Ue peak voltage that the equipment can withstand. Most of the times it is not possible to achieve this with just one SPD, especially because the intensity of the surge is not known, and because of the induction of overvoltages when conductors exceed 10m.
The optimal system of protection is the 3-STEP approach, in which successive stages are combined in the performance of high discharge capacity devices and devices with an optimal voltage protection level (low). This is addressed by the definition of "Types" or "Classes" of SPDs according to the type of transient pulses to which each protected zone in the installation is subject to.
