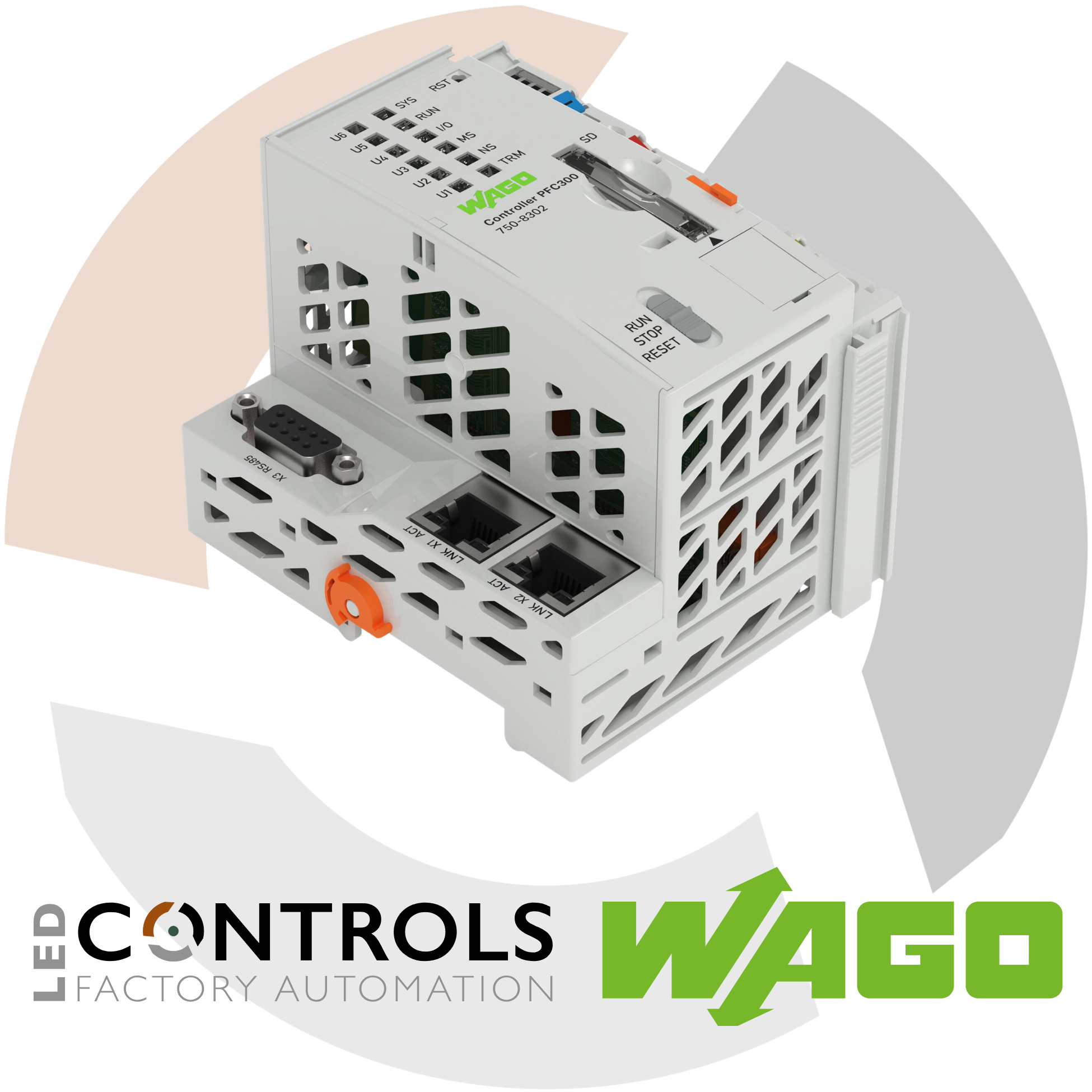

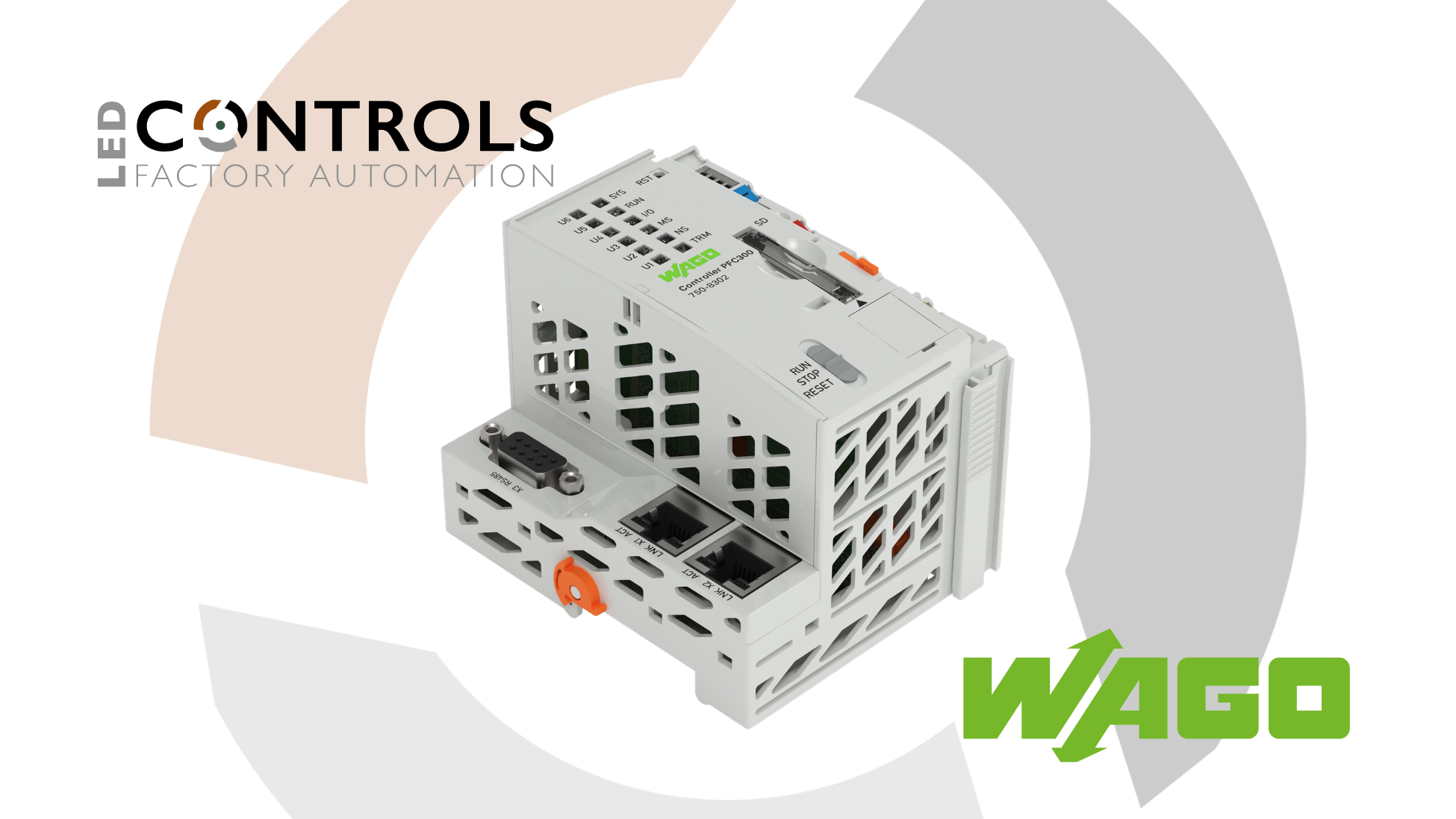

What is the WAGO PFC300?

The WAGO PFC300 is a compact, modular PLC available from LED Controls. PLC stands for Programmable Logic Controller, which is an industrial computer that reads input signals, processes logic based on your pre-set program, and then controls outputs such as motors, valves or lighting accordingly.

Built for modular control

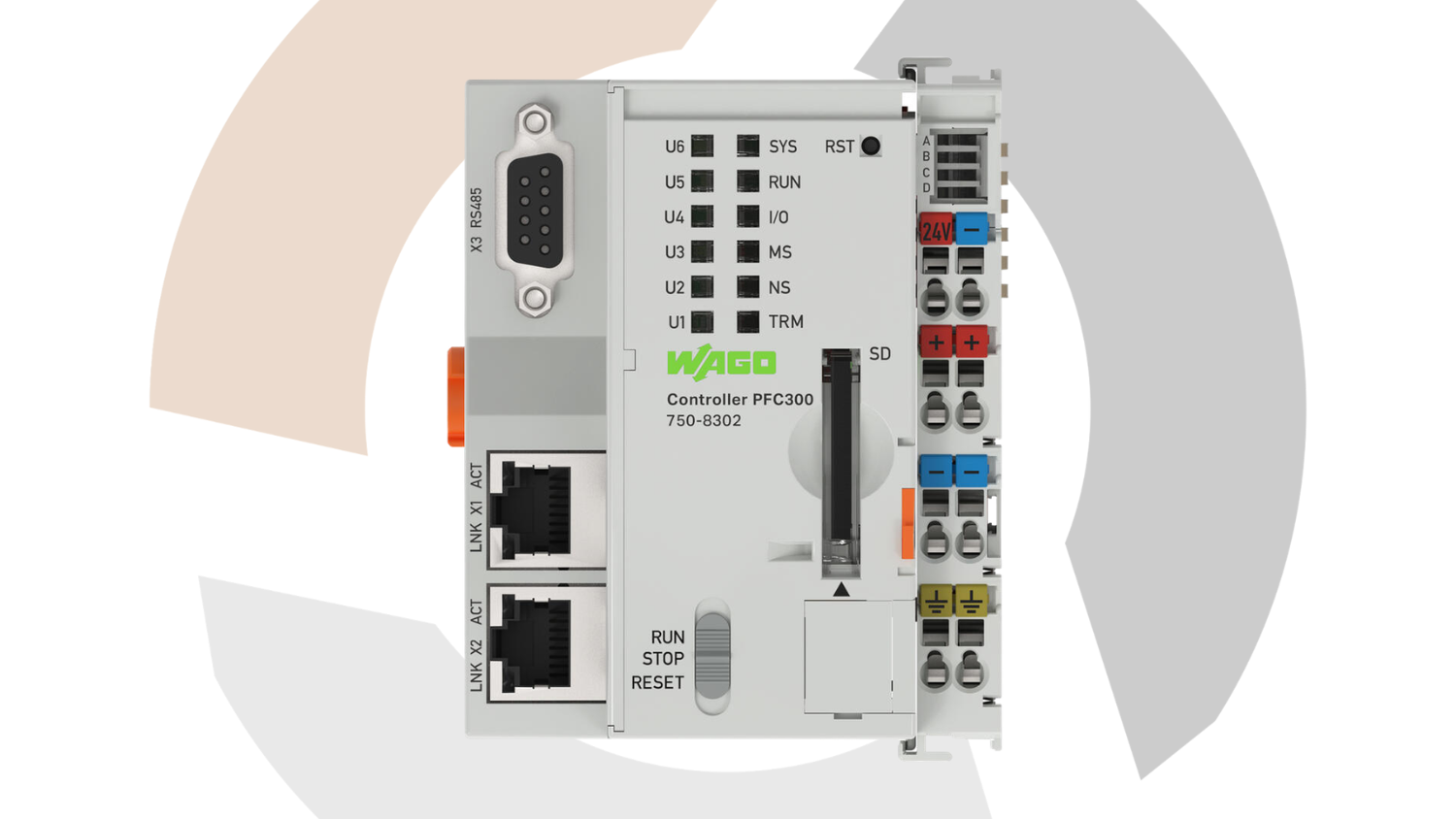

Instead of being limited to fixed inputs and outputs, the WAGO PFC300's modular design allows you to add I/O modules as required, giving you complete flexibility when designing your system.

Digital inputs and outputs are used for simple on or off signals, such as switches or relays, while analogue inputs and outputs handle variable signals like temperature, pressure or speed. There are also specialised modules available for communication and more advanced functions.

This adaptability makes the WAGO PFC300 ideal for both small systems and larger, more complex projects that may need to expand organically over time.

Powerful performance for demanding applications

The WAGO PFC300 is designed for higher-performance applications. It uses a modern processor and a real-time operating system, which means the controller responds quickly and consistently. WAGO PFC300 can handle complex control tasks, data processing and communication all at the same time.

Flexible programming with CODESYS

The WAGO PFC300 is programmed using CODESYS, a widely used industrial software platform. It supports standard PLC programming languages such as Ladder Diagram, Function Block Diagram and Structured Text. So, whether you prefer visual programming or text-based logic, you can work in your preferred medium.

Strong communications for modern systems

Modern automation systems rely on communication between devices, and this is where the WAGO PFC300 excels. It includes two Ethernet ports and an integrated switch, which simplifies your network wiring and reduces the need for additional hardware. It also supports a wide range of industrial communication protocols, making it easier to integrate with existing systems, drives, sensors, building management systems and more. There is also an RS-485 interface for serial communication, which is still widely used in industrial environments.

Ready for cloud and data applications

The WAGO PFC300 can collect information from your sensors and systems, then transmit that data to higher-level platforms such as SCADA systems or cloud services. This opens up opportunities for remote monitoring, energy management, alarms and performance analysis.

Built-in security features

As systems become more connected, security becomes more important. The WAGO PFC300 includes encrypted communication, secure access control and network protection tools to help ensure the safety of your system and reduce the risk of unauthorised access.

Practical features for everyday use

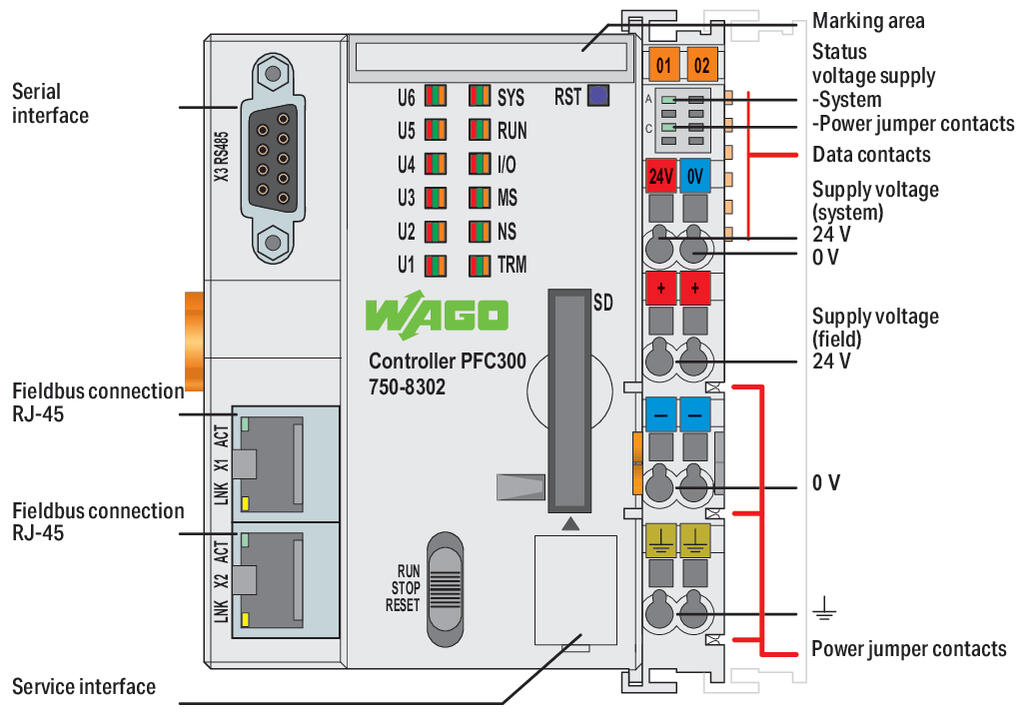

As well as the Dual Ethernet ports and serial communication interface, the PFC300 features a USB service port, and a memory card slot for data storage. The built-in web interface allows easier configuration and monitoring with quick access to settings and diagnostics using a standard web browser.

Typical applications

The WAGO PFC300 is suitable for a wide range of industries and applications, including machine control, manufacturing systems, packaging lines, building automation and energy management systems. It is also a good choice for retrofit projects where new control systems need to work with existing equipment.

Why choose the WAGO PFC300 from LED Controls?

The WAGO PFC300 combines performance, flexibility and connectivity in one compact controller. It allows you to build systems that are tailored to your application, while also supporting modern requirements such as data integration and remote access. For engineers and system designers, it offers a reliable platform that can grow with your project and adapt to your future needs, whatever they may be! For help selecting the right configuration for your project, get in touch with the team at LED Controls.
