X-TRA FLEXIBLE - RiLineX the Power Platform. Now available from LED Controls.

Power distribution is changing fast, but the new Rittal RiLineX busbar system is here to keep you connected. Now available at LED Controls, RiLineX is designed for a world heading toward full electrification. This system is a smart, modern way to make your installations safer, quicker and more efficient. Backed by over 40 years of Rittal expertise, RilineX brings together engineering know-how and user-friendly design to suit both seasoned panel builders and newcomers alike. Plus, it's that lovely shade of Rittal Hot-Rod Red, so it makes your panels look cool.

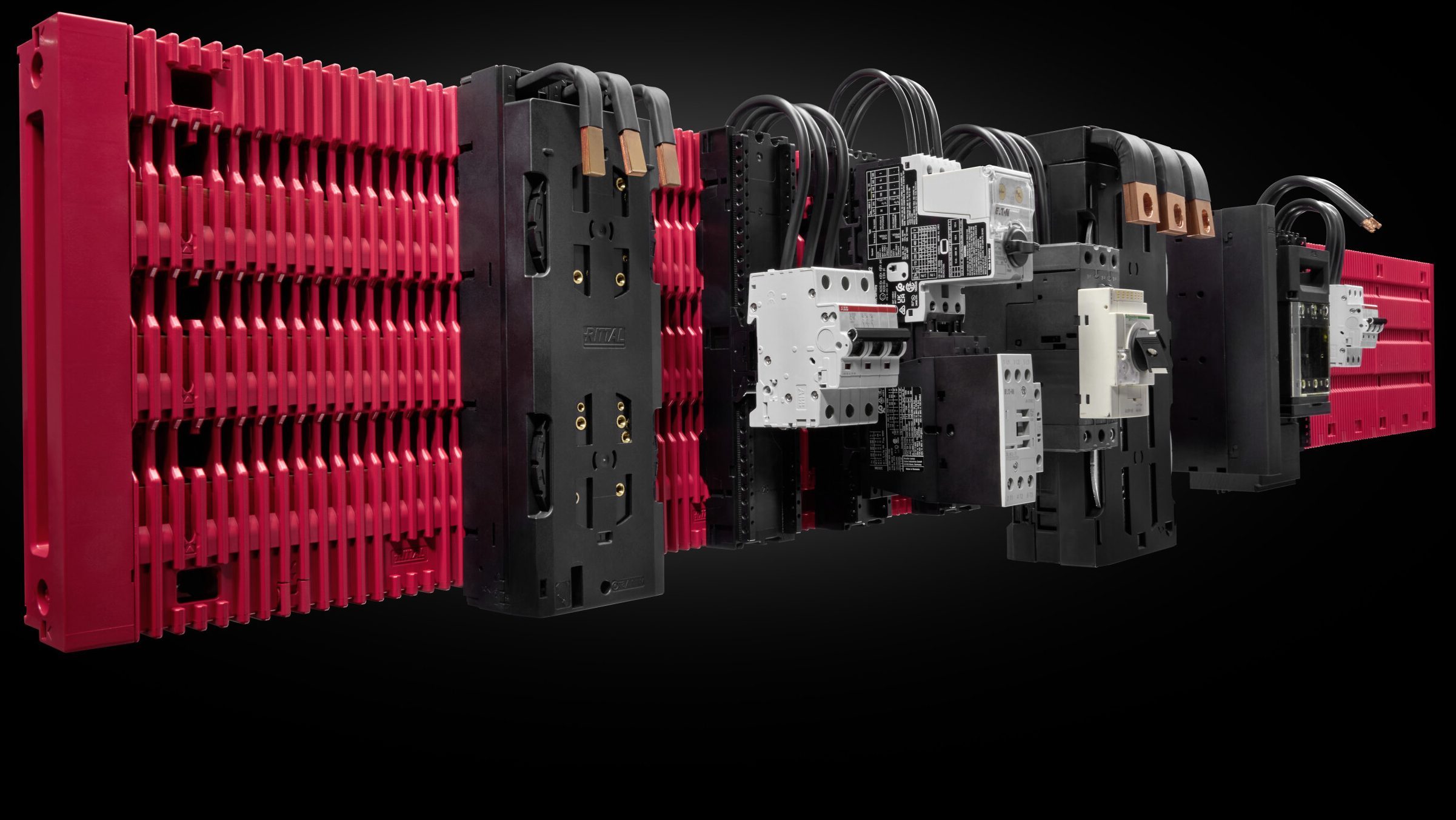

Rittal RiLineX busbar systems available from LED Controls

Fast, Flexible and Ready for Tomorrow

Rittal RiLineX is built around a 60 mm busbar platform rated up to 800 A and suitable for AC systems up to 1000 V and DC systems up to 1500 V. Which makes it ideal for everything from classic control panels to renewable energy installations.

The tool-free click-in assembly can reduce installation time by up to 75%. Your components snap straight onto the board, saving time and avoiding fiddling with tools or complex wiring. Planning is equally streamlined thanks to digital data and EPLAN macros, cutting your engineering time by up to 30%. If it was any more time-saving, it'd be a TARDIS.

A twisting Helix of Rittal RiLineX busbars. Buy now from LED Controls

Safety, Strength and Smart Design

RiLineX takes safety to a new level. IP RATED 2XB as standard, upgradable to IP 4X. A robust short-circuit resistance of up to 65 kA gives you long-term reliability even in demanding industrial environments.

The complete boards come with standardised copper busbars, integrated rear cable routing and a tidy, modular structure that'll keep your panels clean and clear. Whether mounted horizontally, vertically or overhead, the system adapts effortlessly to your needs.

An infinity loop of Rittal RiLineX busbars. RiLineX now available from LED Controls.

Infinite Options

From connection adaptors and motor-starter plates to NH fuses and CB adaptors, RiLineX offers huge flexibility. With options for modular and ready-to-use boards across widths from 600 mm to 1200 mm, the system grows effortlessly with your project, and modules and components can be mixed, matched, extended and even retrofitted into existing RiLine60 installations.

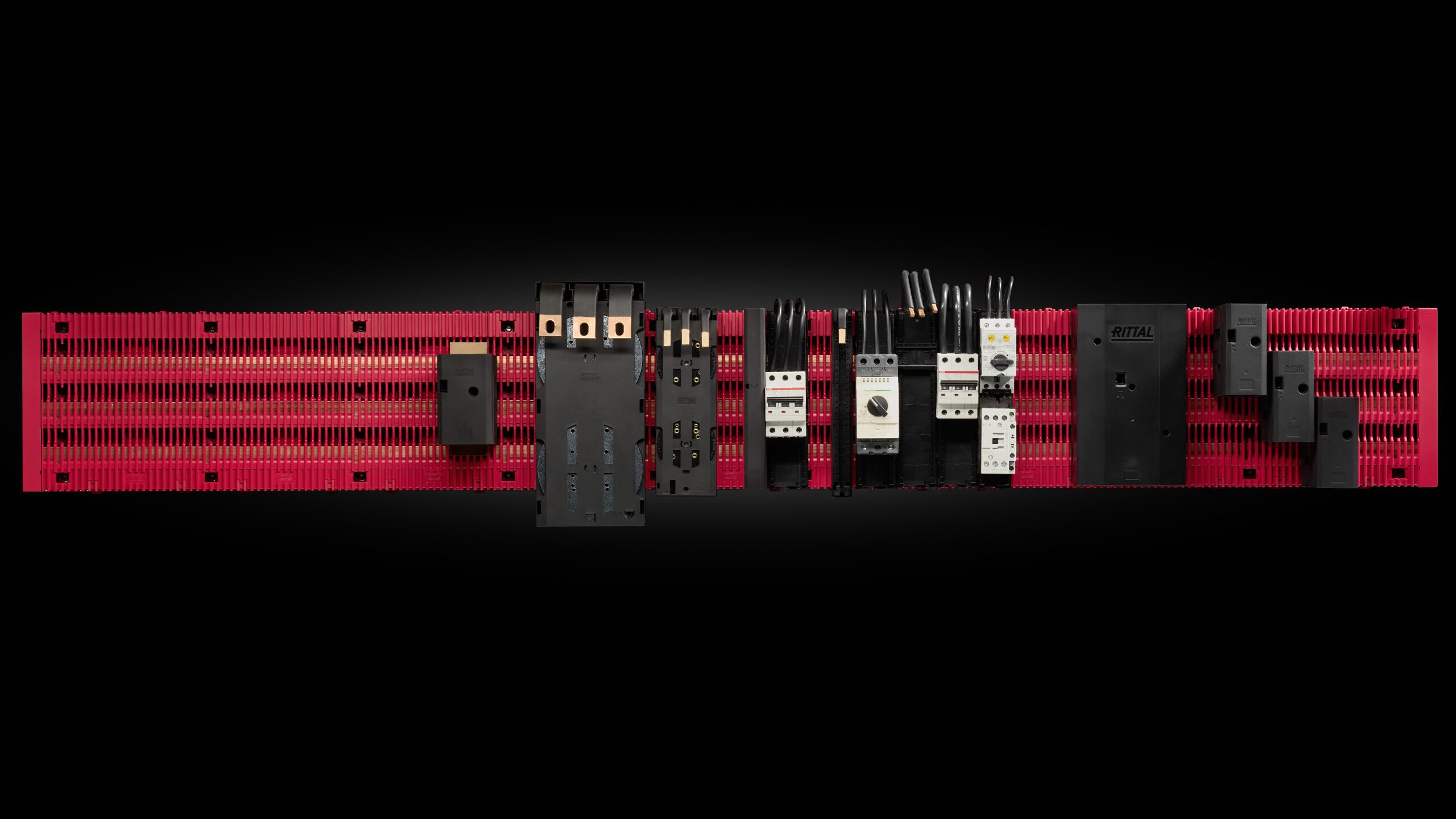

Rittal RiLineX busbar available from LED Controls

Explore Rittal RiLineX at LED Controls

Ready to bring the next generation of power distribution to your builds? Explore the Rittal RiLineX range online now. Or get in touch with our team. We're always on hand to help choose the right gear for you:

01706 242050
[email protected]
ledcontrols.co.uk
