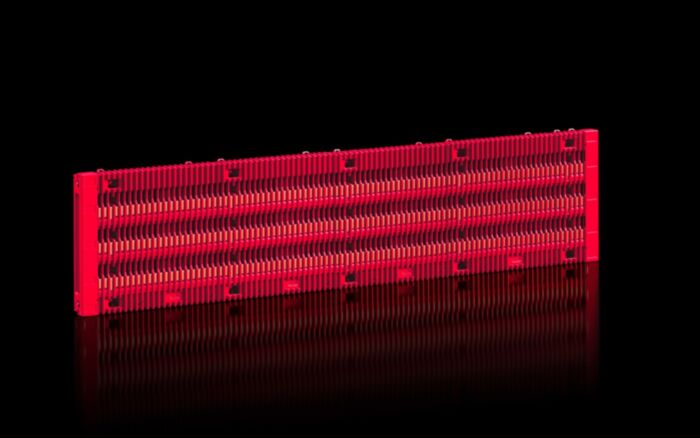

RX9360.004 Rittal RiLineX board 550 A, 3-pole, 60 mm, including busbars 30x5 mm
MPN: RX9360.004
Alt. SKU: 9360004
Special Price
£300.54
£250.45
Regular Price
£353.58
Why Choose the Rittal RX 9360.004 RiLineX Board 550 A 3-pole?
The Rittal RX 9360.004 RiLineX board is a pre-assembled 550 A, 3-pole power distribution board with integrated copper busbars 30 x 5 mm, designed for 1000 mm wide enclosures. It delivers a compact, touch-safe busbar solution with IP 2XB contact hazard protection (upgradable to IP 3X), tested short-circuit strength up to 65 kA, and suitability for systems up to 1000 V AC and 1500 V DC. With IEC and UL approvals and full digital product data, it is ideal for OEMs, panel builders and switchboard manufacturers who want predictable performance, fast assembly and clean, future-proof power distribution.
Technical Specifications
- Manufacturer: Rittal
- System: RiLineX complete board with integrated busbars
- Article number: RX 9360.004
- SKU: 9360004
- Rated current (IEC): 550 A
- Rated current (UL): 540 A
- Number of poles: 3-pole
- Busbar dimensions: 30 mm x 5 mm (E-Cu copper)
- Centre-to-centre busbar spacing: 60 mm
- Board width: 905 mm (for 1000 mm wide enclosures)
- Board height: 246 mm
- Board depth: 49 mm
- Protection category: IP 2XB, upgradable to IP 3X
- Rated voltage (IEC): up to 1000 V AC, 1500 V DC
- Rated voltage (UL): 600 V AC, 600 V DC
- Rated insulation voltage: 1000 V AC, 1500 V DC
- Rated impulse withstand voltage Uimp: 12 kV
- Short-circuit strength: tested up to 65 kA; rated short-term withstand current 45 kA for 500 ms
- Rated impulse withstand current: up to 115.5 kA (94.5 kA UL)
- UL SCCR ratings: up to 100 kA at 600 V with suitable upstream protection
- Frequency range: 50 to 60 Hz
- Overvoltage category: IV
- Pollution degree: 3
- Material (board carrier): Polyamide PA 6, fire behaviour to UL 94
- Material (busbars): Electrolytic copper (E-Cu)
- Colour: RAL 35745 and RAL 9005
- Operating temperature: -5 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Ambient humidity (non-condensing): 10 to 90 %
- Net weight: 7.9 kg
- Copper weight: 3.612 kg per board
- Approvals: IEC 61439-1 and -2, UL 508, UL and cUL listed
- EAN: 4028177997424
- ETIM class: EC001900
- Supply includes: Preconfigured RiLineX board with integral busbars
Applications
- Main and sub-distribution boards up to 550 A in industrial and commercial installations.
- Power distribution in Rittal TS, VX and similar 1000 mm wide enclosures using RiLineX.
- Machine and process control panels requiring compact, touch-safe busbar systems.
- Retrofitting and extension of existing RiLineX power distribution systems.
- Projects needing IEC 61439 compliant assemblies with UL recognition for export panels.
Trusted By Panel Builders
"The RX 9360.004 gives us a ready-made 550 A busbar platform for 1000 mm panels. The pre-assembled board and digital data cut our build time and documentation effort significantly." Senior Panel Builder, UK
Frequently Asked Questions
What is the Rittal RX 9360.004 RiLineX board used for?
It is a complete 3-pole, 550 A RiLineX power distribution board with integrated copper busbars for use in 1000 mm wide enclosures. It provides a compact, touch-safe busbar system for feeding outgoing devices such as breakers and fuse switch disconnectors.
Does the RX 9360.004 include the busbars?
Yes. The board is supplied as a preconfigured complete assembly including copper busbars 30 x 5 mm, so you do not need to source separate bars for the main distribution.
What current and voltage ratings does this board support?
The board is rated for 550 A (540 A UL) and is suitable for systems up to 1000 V AC and 1500 V DC. Under UL it is rated up to 600 V AC and 600 V DC, with short-circuit ratings up to 100 kA when used with suitable upstream protection according to the Rittal data.
Which enclosure size is this RiLineX board designed for?
The RX 9360.004 has a width of 905 mm and is designed specifically for 1000 mm wide enclosures, leaving space for side clearances and accessories inside the panel.
How can the board be mounted inside the enclosure?
The RiLineX board can be mounted horizontally, vertically or overhead. Cable routing can also be run in the rear section of the board, which simplifies clean, segregated wiring in high-density panels.
What degree of protection does the board provide?
The board offers contact hazard protection up to IP 2XB in accordance with IEC 60529 and can be upgraded to IP 3X with the appropriate accessories. This supports safe operation and maintenance in enclosed panels.
Is the RX 9360.004 suitable for IEC and UL projects?
Yes. The RiLineX board is tested and approved to IEC 61439-1 and -2 and UL 508, and is UL and cUL listed. This makes it suitable for both European IEC assemblies and export panels into UL-regulated markets.
What environmental conditions is the board designed for?
The board is designed for operating temperatures from -5 °C to +55 °C and non-condensing ambient humidity between 10 and 90 percent, making it suitable for most indoor industrial and commercial environments.
| Manufacturer Part Number | RX9360.004 |
|---|---|
| Alternative Product SKU | 9360004 |
| Manufacturer | Rittal |
| Barcode | 4028177997424 |
| HS Code | 85369010 |
| Number of Poles | 3 Pole |
| Busbar distance | 60mm |
| Busbar height | 30mm |
| Busbar thickness | 5mm |
| Rated current | 550A |
| Short-circuit breaking capacity (Icw) | 52.5A |
| Material | Copper |
| Range | RX |
| Height | 246mm |
| Width | 905mm |
| Depth | 49mm |
| Packed Quantity | 1 |
