Rittal CW 120-M Busbar Machining now available from LED Controls.

The Rittal Busbar Machining CW 120-M is currently a big seller at Rittal Alliance Partner LED Controls, and it’s easy to see why. This mobile busbar workbench brings bending, punching, and cutting together in one ergonomic system. Whether you’re building panels, switchgear, or custom busbar assemblies, the CW 120-M gives you speed, accuracy, and flexibility wherever you need it.

What is busbar, and why does it matter?

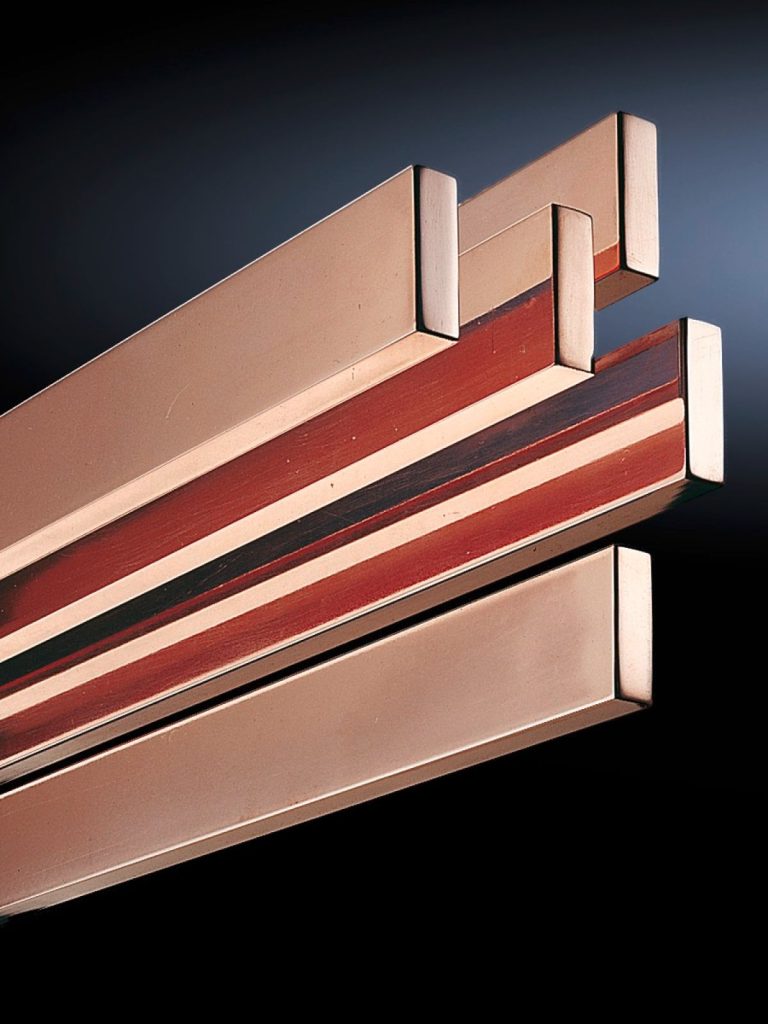

A busbar is a solid strip of copper or aluminium that carries and distributes electricity inside electrical panels. It’s a neat alternative to bundles of cables, offering lower resistance, cleaner layouts, and better heat dissipation. In short: busbars make electrical systems safer, tidier, and easier to maintain.

Why choose the CW 120-M?

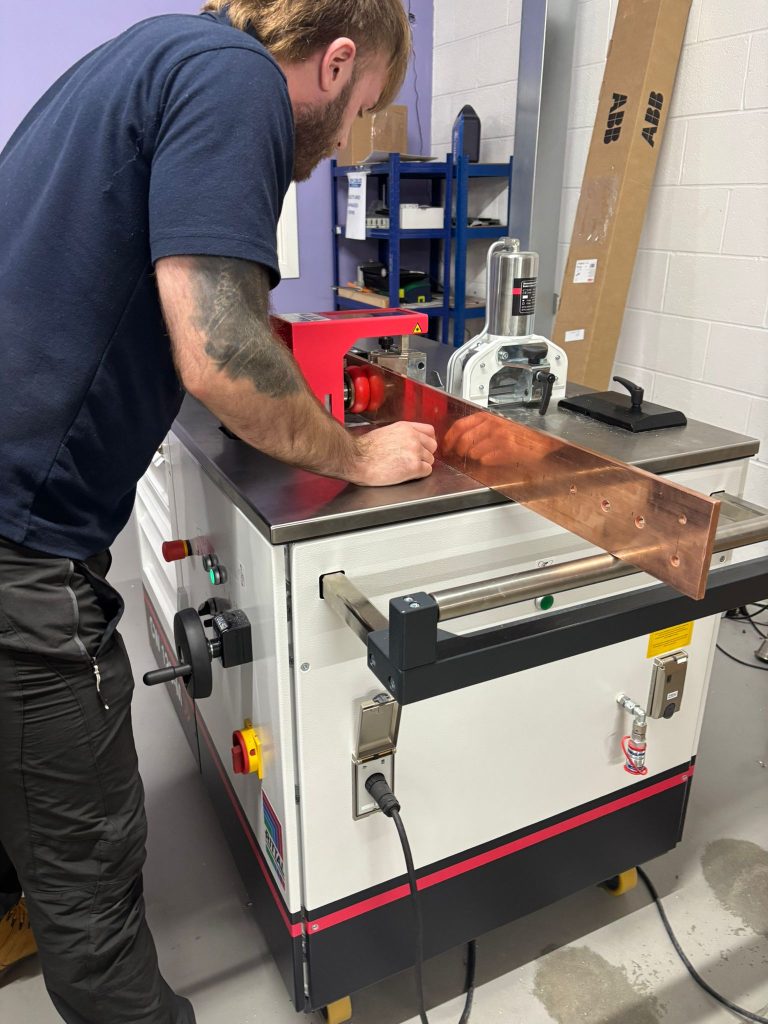

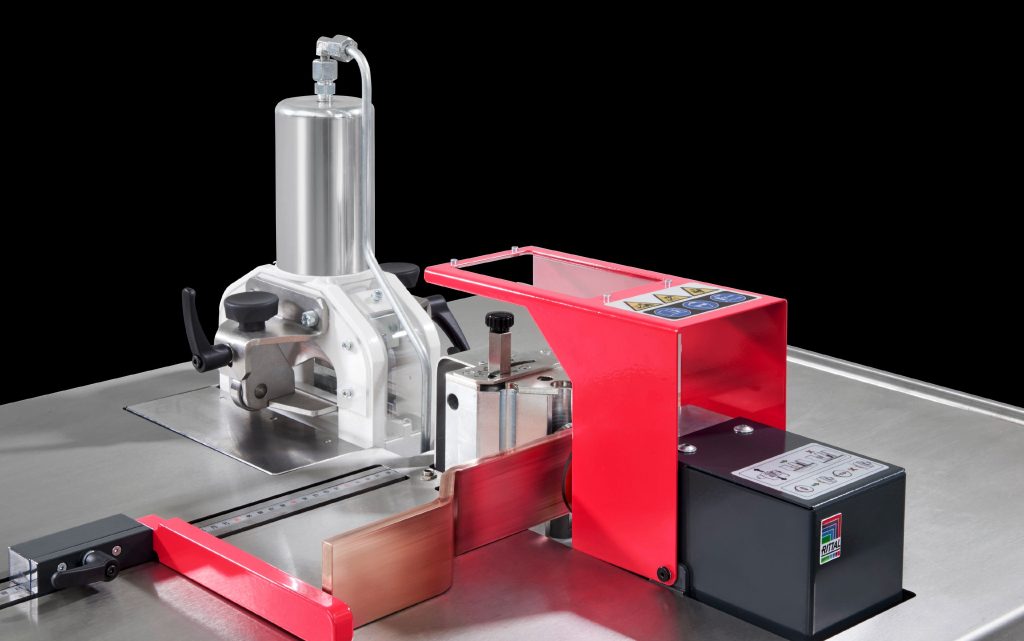

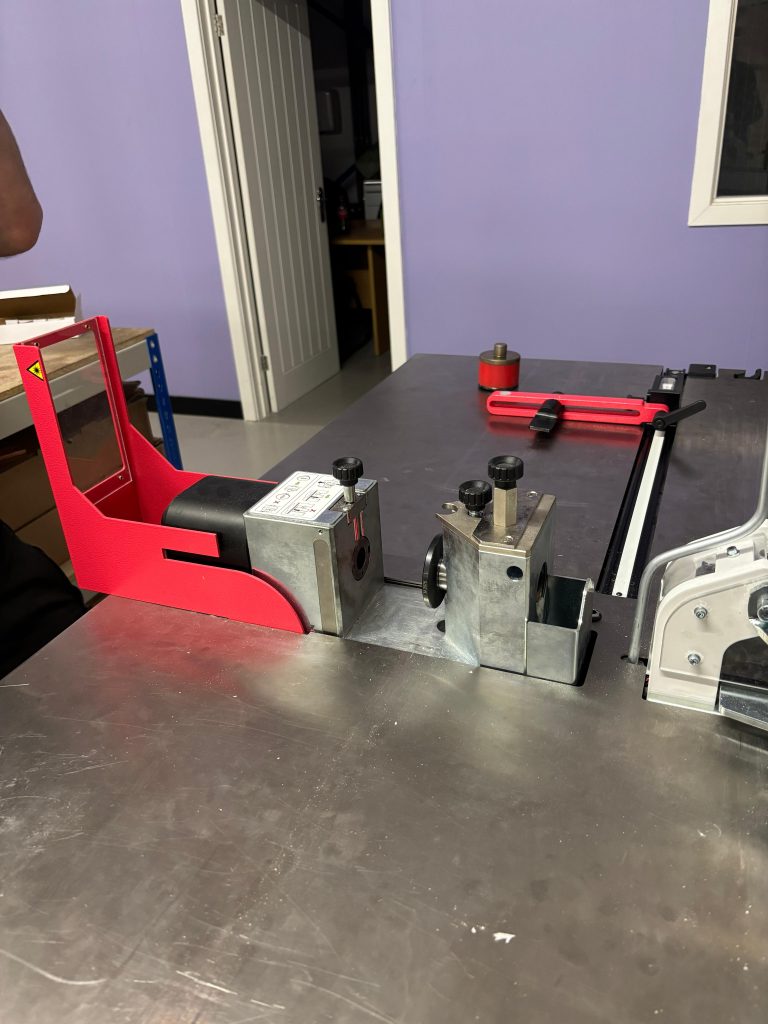

The CW 120-M does more than just bend busbars, it cuts and punches like a kung-fu master, turning a once time-consuming job into a streamlined - and even fun! - process. Plus, this unit isn't going to sit in a corner gathering dust; it rolls on castors, so you can move it to where you need it most. Its integral precision laser makes bending and cutting simple, while the foot-switch operation keeps your hands free for safer handling.

Specs at a glance

  • Bending capacity: up to 120 x 12 mm, max 90°
  • Cutting capacity: up to 120 x 12 mm
  • Punching capacity: up to 6.6 x 21.5 mm, thickness 12 mm
  • Z-bend min. side length: 72 mm
  • Working height: 974 mm
  • Rated voltage: 230 V, 50/60 Hz
  • Mobility: 4 castors (2 lockable) with integrated storage drawers

Why our Customers Love It

Installers trust the CW 120-M because it works where they do. It rolls into place, locks securely, and gives consistent results. The combination of bending, punching, and cutting in a single mobile unit saves space, speeds up projects, and ensures professional finishes every time.

Order yours today

The Rittal Busbar Machining CW 120-M is a proven favourite in workshops across the UK and the world. As a Rittal Alliance Partner, LED Controls frequently roll these bad boys out to our panel-building customers because they’re so practical, precise, and reliable.

Get in touch with LED Controls today for pricing, and make your next busbar system faster, cleaner, and easier:
