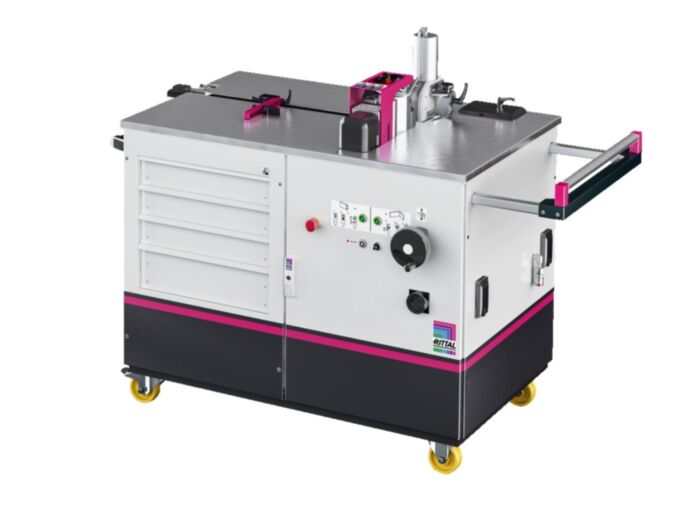

AS4055.800 Rittal Busbar machining Mobile CW120-M
MPN: AS4055.800
Alt. SKU: 4055800
Why Choose the Rittal Busbar Machining CW 120-M (SKU: 4055800)?
The Rittal Busbar Machining CW 120-M (SKU: 4055800) is a mobile, all-in-one workstation for cutting, bending and punching copper or aluminium busbars. Built for precision and productivity, it combines an integrated hydraulic system, laser alignment and an electronic angle display to deliver consistent, repeatable results on the shop floor. Its castor-mounted frame and ergonomic layout enable on-site busbar fabrication, reducing handling, rework and lead times for panel builders and switchgear manufacturers.
Key Takeaways
- Mobile busbar processing machine for cutting, bending and punching at the point of use
- Capacity up to 120 mm width and 12 mm thickness on copper and aluminium busbars
- Laser guide and digital protractor for fast set up and accurate angles
- Integrated hydraulic pump with foot switch control for safe, efficient operation
- Ergonomic measurement stops and optional supports for long busbars
Rittal CW 120-M Busbar Machine Overview
The CW 120-M busbar machining centre unifies cutting, bending and punching in a compact footprint. Laser alignment speeds up length setting, while the electronic angle display helps you reproduce precise bends. Clear scales and a horizontal end stop support repeatable hole patterns, and the protective hood plus foot-operated control enhance safety during operation.
Its manoeuvrable, castor-mounted chassis and optional side extensions make handling long bars simpler, improving throughput in assembly, maintenance and production environments.
Speed and Safety Benefits
- Rapid set up: Quick tool changes, clear scales and end stops reduce changeover time
- High precision: Laser guidance and digital protractor deliver accurate cuts and bends
- Operator safety: Foot switch control, emergency stop and protective hood reduce risk
- Mobile workflow: Castor-mounted design brings the machine to the workpiece
FAQs: Rittal CW 120-M Busbar Machining Tool
- What is the maximum copper or aluminium busbar size the Rittal CW 120-M can cut, bend and punch?
- Can the Rittal CW 120-M punch both round holes and elongated slots in busbars?
- What precision and accuracy features are built into the Rittal CW 120-M busbar machine?
- How does the integrated hydraulic system of the Rittal CW 120-M operate safely?
- What routine maintenance is required for the Rittal CW 120-M busbar processing machine?
Key Features of the Rittal Busbar Machining CW 120-M (SKU: 4055800)
- Operations: Cutting, bending and punching in one mobile unit
- Capacity: Busbar width up to 120 mm, thickness up to 12 mm
- Materials: Copper and aluminium
- Guidance: Precision laser and electronic angle measurement
- Punching range: Round holes approx. 6.6 mm to 21.5 mm, slots up to 21 x 18 mm
- Hydraulics: Integrated high pressure pump powering single acting cylinders
- Control: Foot switch with emergency stop
- Ergonomics: Measurement stop and optional support extensions for long bars
- Manufacturer reference: Article number AS 4055.800, variant ID 4055800
The CW 120-M is designed to process copper or aluminium busbars up to 120 mm wide and 12 mm thick. Within this range it maintains clean shearing, controlled bend radii and accurate hole placement when used with the correct tooling and set up.
Yes. Typical punching capability covers round holes from about 6.6 mm to 21.5 mm and slots up to roughly 21 x 18 mm, subject to material, thickness and the die set installed. Always select the appropriate male and female dies for the required geometry.
The machine includes a precision laser for length alignment and an electronic angle display to set and reproduce bend angles. A horizontal measurement stop and clear scales aid repeatability for serial work.
An integrated high pressure hydraulic pump powers single acting cylinders at the cutting, bending and punching stations. Operators use a foot switch for hands free control, and a protective hood plus emergency stop improve safety during machining.
Follow the operating instructions for intervals and procedures. Typical tasks include hydraulic oil checks and changes, inspection of hoses and seals, verification of foot switch function and guard operation, and timely replacement or sharpening of blades and punches. Service work should be performed by qualified personnel.
Choose the Rittal Busbar Machining CW 120-M (SKU: 4055800) for precise, repeatable busbar fabrication with faster set up, safer operation and higher throughput in professional panel building environments.
| Manufacturer Part Number | AS4055.800 |
|---|---|
| Manufacturer | Rittal |
| Packed Quantity | 1 |
| Product Range | AS |
| Alternative Product SKU | 4055800 |
| Barcode | 4028177920637 |
