9020.24 Cembre EWO IP66 Black Push-Fit Mounts

Why Choose the Cembre EWO 9020.24 IP66 Black Push-Fit Mounts

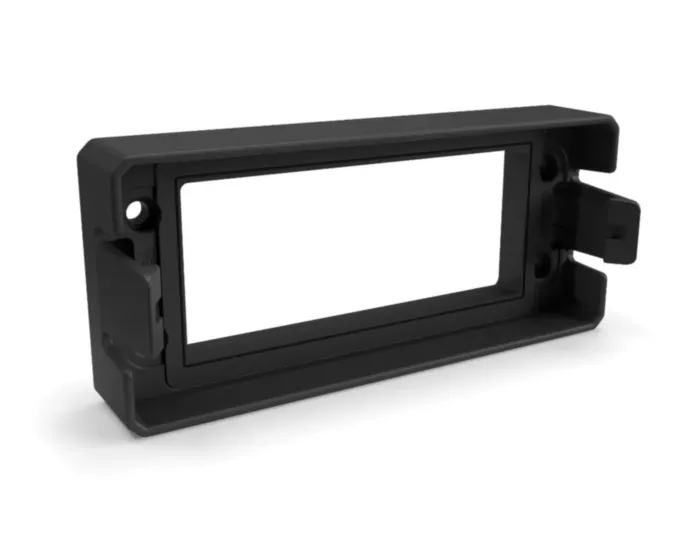

The Cembre 9020.24 push-fit mounting frame is part of the EWO split cable entry system. It provides a quick, tool-free way to install cable entry frames into enclosures while maintaining high ingress protection (IP66). Ideal where speed and safety are essential, especially in industrial automation, machinery panels, and control cabinets.

Made from glass-fibre reinforced PA6.6 with a moulded over-seal, this casing is supplied in black (RAL 9005) and is designed for the 24 module rectangular EWO frame. It snaps into prefabricated cut-outs and is suitable for retrofitting or new build installations.

Key Features

• Push-fit snap-in frame for easy installation without screws or tools.
• Frame made of glass-fibre reinforced polyamide PA6.6 with stainless steel fitting parts.
• Moulded over-seal integrated for IP66 protection without an external gasket.
• Colour: black (RAL 9005).
• Operating temperature (static): -40 °C to +140 °C.
• Slim depth design; metal plate perforation size: 112 × 36/46 mm for this frame.
• Compatible with all EWO grommets for the 24-module layout.

Technical Specifications

• Manufacturer: Cembre
• Series: EWO split cable entry system - Push-fit mounts (9020 series)
• Model: 9020.24
• Frame Type: Snap-in / push-fit mounting rectangular frame, 24 module position layout
• Material: Glass-fibre reinforced PA6.6; overmoulded seal in thermoplastic elastomer (TPE)
• Colour: Black (RAL 9005)
• Ingress Protection: IP66 when used with compatible EWO grommets in an appropriate EWO frame
• Operating Temperature (static): -40 °C to +140 °C
• Metal plate perforation size: 112 × 36/46 mm
• Frame outer dimensions: 155 × 83 mm
• Fixing / Retention: Snap-in or bracket style push-fit; may include anti-fall or safety clips depending on frame orientation

Certifications

Complies with EWO system approvals including CE, UKCA, UL (cURus), and RINA. IP66 rating when frame and grommets are properly installed. Materials meet UL94 V-0 fire classification.

Comparison and Selection Notes

Use 9020.24 where you need the 24-module rectangular frame with snap-in mounting for fast installation. If you need smaller layouts, consider 9020.16 (16 module), 9020.10 (10 module), or 9020.Q (square module) variants. For single cable entries or partial fill, use grommets, blind plugs, or closing plates instead.

Frequently Asked Questions

• What is the 9020.24 used for
• Does it maintain IP66 sealing
• Which frame layout does it fit
• How much force is needed for push-fit

Applications

• Fast installations into enclosures when module positions are predetermined - useful in mass panel manufacture.
• Retrofitting cable entry frames into existing panels with minimal mechanical work.
• Temporary installations or test panels where grommet layouts may change.
