9000.R/3 Cembre EWO IP66 Black Reduced Rectangle Split Cable Entry Systems

Why Choose the Cembre EWO 9000.R/3 IP66 Reduced Rectangular Split Cable Entry Frame

The Cembre EWO 9000.R/3 is a compact reduced rectangular split cable entry frame designed for pre terminated cables in tight installation spaces. Its glass fibre reinforced PA6.6 body with an overmoulded inner seal delivers verified IP66 protection without an external gasket, helping you keep small enclosures neat and ingress protected.

Built around Cembre’s Plug & Fix quick open system and the Stop Plinth seal protection, the frame can be fitted after cables are laid and then closed around the grommets, cutting wiring time and reducing risk during commissioning. It is silicone free, halogen free and UL 94 V0 flame rated for industrial environments.

Key Features

• Reduced rectangular split frame with 3 small grommet positions.
• IP66 ingress protection from the integrated overmoulded TPE seal.
• Glass fibre reinforced PA6.6 body for durability.
• Plug & Fix quick opening for fast retrofit on pre terminated cables.
• Stop Plinth design prevents seal over compression for lasting protection.
• Silicone free, halogen free; UL 94 V0 self extinguishing rating.

Technical Specifications

• Manufacturer: Cembre
• Series: EWO Easy Wire Organiser
• Model: 9000.R/3
• Colour: Black
• Ingress protection: IP66
• Material: Polyamide PA6.6, glass fibre reinforced; overmoulded TPE seal
• Operating temperature: Frame -40 to +140 °C (static)
• External frame size: L 99.5 mm × H 42 mm × D approx. 19.5 mm
• Wall cut out size: 65 mm × 24 mm
• Fixing holes: Ø 5.5 mm, for M5 screws
• Grommet capacity: 3 small grommets (Version A 20.6 × 20 mm)
• Compliance: EN 62444 cable sealing
• Standards and approvals: CE, UKCA, UL (cURus/UL 50), RINA; EN 45545 2; UV resistance ISO 4892 2A

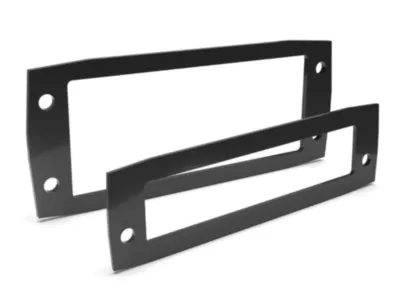

• Notes: External seal not required. Optional 9006.R/3 external flat seal and 9020 series push fit mounting frame are available.

Certifications

Certified to CE, UKCA and UL environmental types with IP66 sealing verified by the overmoulded frame seal. Materials meet UL 94 V0 flammability, EN 45545 2 fire behaviour and ISO 4892 2A UV testing.

Comparison and Selection Notes

Choose 9000.R/3 when space is limited and you need three small grommet positions. For two or four positions select 9000.R/2 or 9000.R/4. If you need a taller standard rectangular frame and larger cut outs, consider 9000.10/3 or 9000.16/5.

Frequently Asked Questions

• What is the 9000.R/3 used for
• How does it achieve IP66 without an external seal
• What panel cut out is required
• Which approvals does it carry
• Which grommets are compatible

Applications

• Compact control cabinets and junction boxes.
• Sensor and I/O cabling where enclosure height is limited.
• OEM machinery panels needing neat pre terminated cable entry with IP66 protection.
