9000.Q/4 Cembre EWO IP66 Black Square Split Cable Entry Systems

Why Choose the Cembre EWO 9000.Q/4 IP66 Square Split Cable Entry Frame

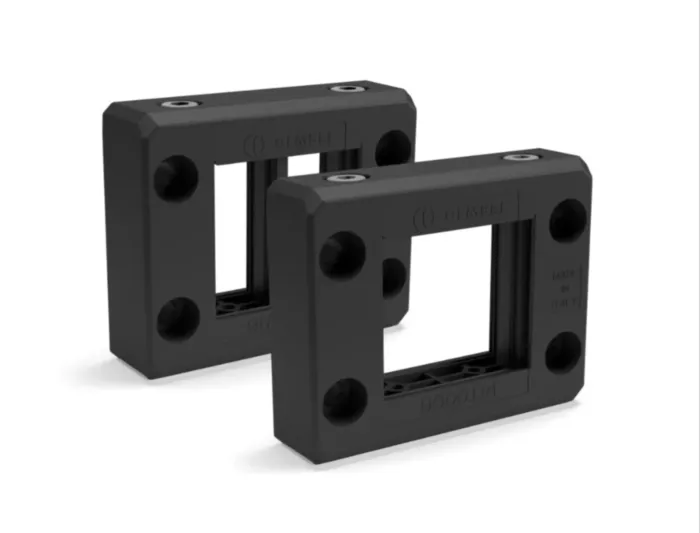

The Cembre EWO 9000.Q/4 is a black square split cable entry frame designed for pre-terminated cables. Its glass-fibre reinforced PA6.6 body and overmoulded inner seal deliver verified IP66 protection without any external seal, keeping control panels tidy and ingress-protected while speeding up installation.

Built around Cembre’s Plug & Fix quick-open mechanism and Stop Plinth seal-protection design, the EWO frame can be fitted after cables are laid and then closed around grommets, cutting wiring time and reducing risk during final commissioning. It is silicone-free and halogen-free, UL 94 V0, and suited to harsh industrial environments.

Key Features

• Square split frame with 4 small grommet positions.
• IP66 ingress protection from integrated overmoulded seal.
• Glass-fibre reinforced PA6.6 body with TPE elastomer gasket.
• Plug & Fix quick opening for fast retrofit on pre-terminated cables.
• Stop Plinth design prevents seal over-compression for lasting protection.
• Silicone-free, halogen-free; UL 94 V0 self-extinguishing rating.

Technical Specifications

• Manufacturer: Cembre
• Series: EWO Easy Wire Organiser
• Model: 9000.Q/4
• Colour: Black
• Ingress protection: IP66
• Material: Polyamide PA6.6, glass-fibre reinforced; overmoulded TPE seal
• Operating temperature: −40 to +140 °C (static)
• Cut-out (drilling) size: 43 mm × 43 mm
• Overall size: L 75 mm × H 61 mm × D 19.5 mm
• Fixing hole centres: 58 mm horizontal × 32 mm vertical
• Fixing holes: Ø 5.5 mm, for M5 screws
• Grommet capacity: 4 small, 0 large
• Compliance: CEI EN 62444; ROHS compliant
• Standards & approvals: CE, UKCA, UL (cURus) to UL 50E, RINA; UL 94 V0
• Packaging: 10 pcs minimum and standard pack
• Notes: Use with EWO interchangeable grommets for IP66 cable sealing; external seal not required.

Certifications

Certified to CE, UKCA and UL (cURus) with UL 50E enclosure standard compliance. Also approved by RINA. Materials and sealing meet EN 62444 cable sealing requirements.

Comparison and Selection Notes

Choose 9000.Q/4 for a compact 4-grommet square frame. For a single large-grommet square frame see 9000.Q/1. For rectangular apertures or higher cable density, consider EWO 9000.10 series frames. Pair with matching EWO grommets to suit cable diameters and protection needs.

Frequently Asked Questions

• What is the 9000.Q/4 used for
• How does it achieve IP66 without an external seal
• What panel cut-out is required
• Which approvals does it carry
• Which grommets are compatible

Applications

• Electrical panels and machine control cabinets.
• Industrial automation and sensor cabling.
• Drives, power supplies and I/O wiring where rework and maintenance access are needed.
• General enclosure cable management requiring reliable IP66 sealing.
