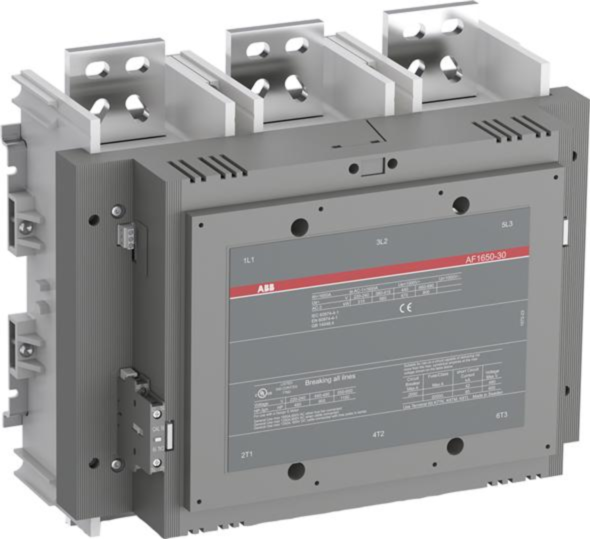

1SFL677001R7011 af1650-30-11-70 100-250v 50/60hz-dc ABB Contactor
MPN: 1SFL677001R7011
Alt. SKU: AF1650-30-11-70
Special Price
£6,199.34
£5,166.12
Regular Price
£9,537.44
Why Choose the AF1650-30-11-70 [1SFL677001R7011]
The AF1650-30-11-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor pre-mounted auxiliary contacts and and Main Circuit Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL and switching power circuits up to 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specification
- Poles and Contacts: 3 poles, 3 NO main contacts, 1 NO and 1 NC auxiliary contacts.
- Rated Voltage: Main circuit 1000 V IEC/UL.
- Rated Current: AC-1: 1650 A at 40 °C; AC-3: up to 1060 A at 415 V; DC-1: 1650 A at 110 V to 850 V (series poles).
- Motor Control Power: Suitable for motors up to 560 kW at 400 V AC (AC-3) or 900 hp at 480 V UL.
- Rated Insulation and Impulse Voltage: 1000 V insulation voltage; 8 kV impulse withstand voltage.
- Degree of Protection: Coil terminals IP20; main terminals IP00.
- Terminal Type and Size: Main circuit bars, connecting capacity up to 100 mm²; auxiliary circuits support 0.75 to 4 mm² flexible and solid conductors.
- Durability: Mechanical endurance of 0.5 million operations.
- Coil Control Voltage Range: 100–250 V AC/DC, 50/60 Hz.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control power for the AF1650-30-11-70 contactor?
The AF1650-30-11-70 contactor can control motors up to 560 kW at 400 V AC (AC-3) or 900 hp at 480 V UL.
What is the rated current for the main circuit?
The rated current for the main circuit is 1650 A (AC-1) and up to 1060 A (AC-3) at 415 V.
What is the degree of protection for the terminals?
The coil terminals have an IP20 rating, while the main terminals have an IP00 rating.
What is the coil control voltage range for this contactor?
The coil control voltage range is 100–250 V AC/DC, 50/60 Hz.
Can the AF1650-30-11-70 contactor be extended with additional components?
Yes, it can be easily extended with add-on auxiliary contact blocks and a wide range of accessories.
What is the maximum cable capacity for the main circuit bars?
The main circuit bars can connect conductors up to 100 mm².
What standards and approvals does the AF1650-30-11-70 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SFL677001R7011 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF1650-30-11-70 |
| KW Rating | 560kW |
| Inbuilt Aux | 1 N/O 1 N/C |
| Barcode | 7320500249703 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
