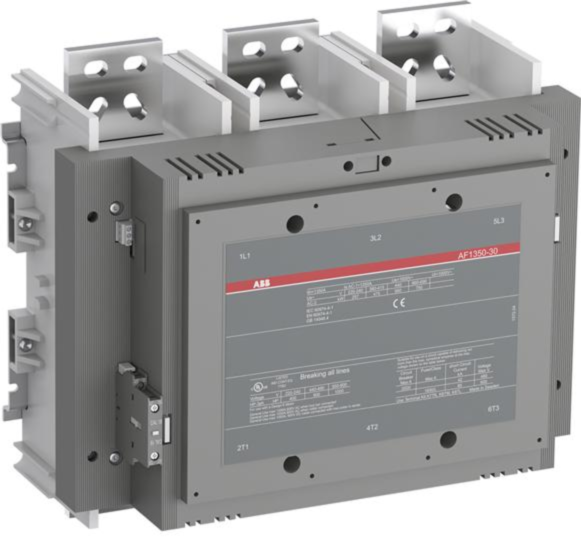

1SFL657001R7011 af1350-30-11 560kw/860 amp 100-250v 50/60hz-dc ABB Contactor
MPN: 1SFL657001R7011
Alt. SKU: AF1350-30-11-70
Special Price
£3,934.64
£3,278.87
Regular Price
£6,053.29
Why Choose the AF1350-30-11-70 [1SFL657001R7011]
The AF1350-30-11-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specification
- Function: 3-pole contactor with pre-mounted auxiliary contacts and main circuit bars for motor control and power switching.
- Rated Operational Voltage: Main circuit 1000 V AC/DC.
- Rated Operational Current: Up to 1350 A AC-1 and UL general use.
- Contact Configuration: 3 main NO contacts, 1 auxiliary NO and 1 auxiliary NC contact.
- Insulation Voltage (Ui): 1000 V according to IEC 60947-4-1 and UL/CSA.
- Impulse Withstand Voltage (Uimp): 8 kV main circuit.
- Degree of Protection: Coil terminals IP20, main terminals IP00.
- Terminal Type and Size: Main circuit bars, connectable with copper bars up to 100 mm²; auxiliary terminals accept 0.75 to 4 mm² cables.
- Mechanical Durability: 0.5 million operating cycles.
- Control Voltage Range: 100-250 V AC/DC with built-in surge protection.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF1350-30-11-70 contactor?
The AF1350-30-11-70 contactor can control motors up to 475 kW at 400 V AC (AC-3) or 800 hp at 480 V UL.
What is the rated operational current for the AF1350-30-11-70?
The rated operational current is up to 1350 A for AC-1 and UL general use.
What is the control voltage range for the AF1350-30-11-70 contactor?
The control voltage range is 100-250 V AC/DC.
What type of terminals does the AF1350-30-11-70 have?
The contactor features main circuit bars connectable with copper bars up to 100 mm² and auxiliary terminals that accept cables from 0.75 to 4 mm².
What is the degree of protection for the AF1350-30-11-70 contactor?
The coil terminals have an IP20 rating, while the main terminals are rated IP00.
How many operating cycles can the AF1350-30-11-70 contactor endure?
The mechanical durability is rated for 0.5 million operating cycles.
Is there any conformity information available for the AF1350-30-11-70?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SFL657001R7011 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF1350-30-11-70 |
| KW Rating | 560kW |
| Inbuilt Aux | 1 N/O 1 N/C |
| Barcode | 7320500250143 |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
