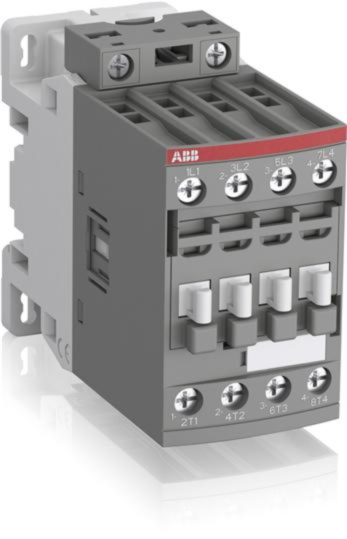

1SBL296201R2200 af38z-40-00-22 18.5kw/38amp 48-130v 50/60hz dc ABB Contactor
MPN: 1SBL296201R2200
Alt. SKU: AF38Z-40-00-22
Special Price
£180.24
£150.20
Regular Price
£277.30
Why Choose the AF38Z-40-00-22 [1SBL296201R2200]
The AF38Z-40-00-22 is a 4-pole contactor rated for 690 V IEC or 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 11 kW at 400 V AC (AC-3 duty) and switch power circuits up to 55 A (AC-1) or 55 A for UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 48-130 V AC/DC (50/60 Hz), accommodating significant voltage fluctuations while minimising panel energy consumption and maintaining reliable operation in unstable supply conditions. Integrated surge protection enhances durability, providing a compact and robust solution. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive range of compatible accessories.
Technical Specification
- Function: 4-pole contactor for motor control and power circuits.
- Rated Operational Voltage: 690 V IEC / 600 V UL.
- Current Ratings: 55 A AC-1, 21.2 A AC-3 at 415 V, suitable for motors up to 11 kW at 400 V AC (AC-3).
- Contact Configuration: 4 main contacts, normally open (NO).
- Insulation Voltage and Impulse Withstand Voltage: 690 V insulation, 6 kV impulse withstand.
- Protection Rating: IP20 for coil and main terminals.
- Terminal Type and Capacity: Screw terminals; main circuit 1.5 to 16 mm² flexible/rigid wiring.
- Mechanical Durability: Up to 3600 mechanical cycles per hour.
- Mounting: DIN rail (TH35-15 and TH35-7.5) or screw mounting (2 x M4 screws).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor power that the AF38Z-40-00-22 contactor can control?
The AF38Z-40-00-22 contactor can control motors up to 11 kW at 400 V AC (AC-3).
What is the rated operational voltage for this contactor?
The rated operational voltage is 690 V IEC or 600 V UL.
What is the current rating for AC-1 and AC-3 applications?
The current rating is 55 A for AC-1 and 21.2 A for AC-3 at 415 V.
What type of terminals does the AF38Z-40-00-22 have?
The contactor features screw terminals with a capacity for 1.5 to 16 mm² flexible/rigid wiring.
How can the AF38Z-40-00-22 be mounted?
The contactor can be mounted on a DIN rail (TH35-15 and TH35-7.5) or via screw mounting using 2 x M4 screws.
What is the protection rating of this contactor?
The protection rating is IP20 for coil and main terminals.
Does the AF38Z-40-00-22 contactor have built-in surge protection?
Yes, the contactor includes built-in surge protection for enhanced reliability.
| Manufacturer Part Number | 1SBL296201R2200 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF38Z-40-00-22 |
| KW Rating | 18.5kW |
| Inbuilt Aux | 4 N/O |
| Barcode | 3471523116122 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
