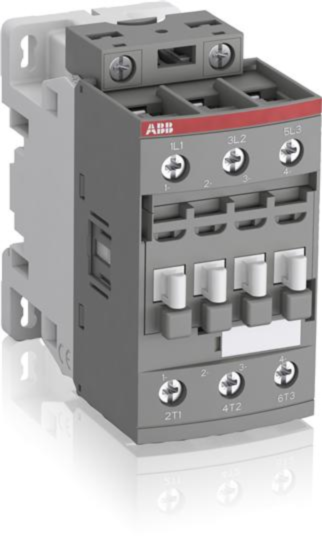

1SBL296001R2300 af38z-30-00-23 18.5kw/38 amp 100-250v 50/60hz-dc ABB Contactor
MPN: 1SBL296001R2300
Alt. SKU: AF38Z-30-00-23
Special Price
£154.92
£129.10
Regular Price
£238.34
Why Choose the AF38Z-30-00-23 [1SBL296001R2300]
The AF38Z-30-00-23 is a 3-pole contactor rated for 690 V IEC and 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 18.5 kW at 400 V AC (AC-3) or 25 hp at 480 V UL, and switch power circuits up to 50 A (AC-1) or 50 A UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 100-250 V AC/DC (50/60 Hz), accommodating significant voltage fluctuations to enhance reliability and reduce panel energy consumption in unstable supply conditions. Integrated surge protection provides additional safeguarding within a compact form factor. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive selection of compatible accessories, ensuring flexible integration into diverse control systems.
Technical Specification
- Function: 3-pole contactor for motor control and power switching.
- Rated Operational Voltage: Up to 690 V IEC / 600 V UL.
- Current Rating: 50 A AC-1 and UL general use, motor loads up to 18.5 kW (400 V AC).
- Contact Configuration: 3 main normally open contacts (NO), no auxiliary contacts.
- Insulation Voltage (Ui): 690 V IEC, 600 V UL/CSA.
- Impulse Withstand Voltage (Uimp): 6 kV.
- Degree of Protection: IP20 on coil and main terminals.
- Terminal Type and Size Range: Screw terminals; main circuit 1.5–10 mm² flexible and 2.5–10 mm² rigid; control circuit 0.75–2.5 mm².
- Mechanical Durability: Rated for up to 3600 mechanical operations per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor load the AF38Z-30-00-23 can control?
The AF38Z-30-00-23 can control motor loads up to 18.5 kW at 400 V AC or 25 hp at 480 V UL.
What is the rated operational voltage for this contactor?
The rated operational voltage is up to 690 V IEC or 600 V UL.
What is the current rating for the AF38Z-30-00-23?
The current rating is 50 A for AC-1 and UL general use.
What type of terminals does the contactor use?
The contactor features screw terminals with a size range of 1.5–10 mm² for flexible and 2.5–10 mm² for rigid conductors in the main circuit, and 0.75–2.5 mm² for the control circuit.
What is the degree of protection for the AF38Z-30-00-23?
The degree of protection is IP20 on the coil and main terminals.
Can the AF38Z-30-00-23 be extended with additional components?
Yes, it can be easily extended with add-on auxiliary contact blocks and a wide range of accessories.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL296001R2300 |
|---|---|
| HS Code | 85365080 |
| Manufacturer | ABB |
| Country of Manufacture | France |
| Alternative Product SKU | AF38Z-30-00-23 |
| KW Rating | 18.5kW |
| Inbuilt Aux | None |
| Barcode | 3471523114739 |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
