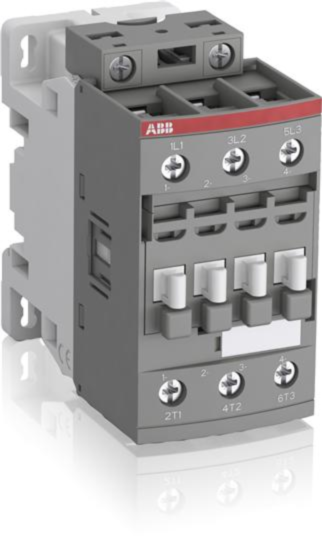

1SBL276001R2100 af30z-30-00-21 15kw/32 amp 24-60v 50/60hz-dc ABB Contactor
MPN: 1SBL276001R2100
Alt. SKU: AF30Z-30-00-21
Special Price
£136.98
£114.15
Regular Price
£210.73
Why Choose the AF30Z-30-00-21 [1SBL276001R2100]
The AF30Z-30-00-21 is a 3-pole contactor rated for up to 690 V IEC or 600 V UL applications, featuring screw terminals for secure connections. It is suitable for motor control up to 15 kW at 400 V AC (AC-3) or 20 hp at 480 V UL, and capable of switching power circuits up to 50 A (AC-1) or 50 A UL general use. Utilising AF technology, this contactor supports a wide control voltage range from 24 to 60 V AC (50/60 Hz) and 20 to 60 V DC, accommodating significant voltage fluctuations while reducing panel energy consumption and maintaining reliable operation in unstable supply conditions. Integrated surge protection enhances durability within a compact footprint. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive range of accessories, ensuring flexibility and ease of installation in diverse industrial environments.
Technical Specification
- Function: 3-pole contactor for motor control and power circuit switching.
- Rated Operational Voltage: Main circuit up to 690 V IEC, 600 V UL/CSA.
- Current Ratings: Up to 50 A (AC-1 / general use), motor control up to 15 kW at 400 V AC (AC-3), 20 hp at 480 V UL.
- Contact Configuration: 3 Normally Open (NO) main contacts, no auxiliary contacts.
- Insulation and Impulse Voltage: Rated insulation voltage 690 V IEC, 600 V UL/CSA; impulse withstand voltage 6 kV.
- Protection Rating: IP20 for both coil and main terminals.
- Terminal Type and Cable Range: Screw terminals; main circuit flexible 1.5–10 mm², control circuit flexible 0.75–2.5 mm².
- Mechanical Durability: Maximum mechanical switching frequency 3600 cycles/hour.
- Control Voltage Range: 24–60 V AC (50/60 Hz) and 20–60 V DC with built-in surge protection.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF30Z-30-00-21 contactor?
The contactor can control motors up to 15 kW at 400 V AC (AC-3) or 20 hp at 480 V UL.
What is the rated operational voltage for this contactor?
The rated operational voltage is up to 690 V IEC or 600 V UL/CSA.
What is the current rating for power circuit switching?
The contactor can switch power circuits up to 50 A (AC-1) or 50 A UL general use.
What type of terminals does the AF30Z-30-00-21 contactor have?
It features screw terminals for both the main and control circuits.
What is the cable range for the terminals?
The main circuit accepts flexible cables from 1.5 to 10 mm², and the control circuit accepts flexible cables from 0.75 to 2.5 mm².
Does the contactor have built-in surge protection?
Yes, the AF30Z-30-00-21 contactor includes built-in surge protection.
What is the protection rating of the contactor?
The protection rating is IP20 for both coil and main terminals.
| Manufacturer Part Number | 1SBL276001R2100 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF30Z-30-00-21 |
| KW Rating | 15kW |
| Inbuilt Aux | None |
| Barcode | 3471523114418 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
