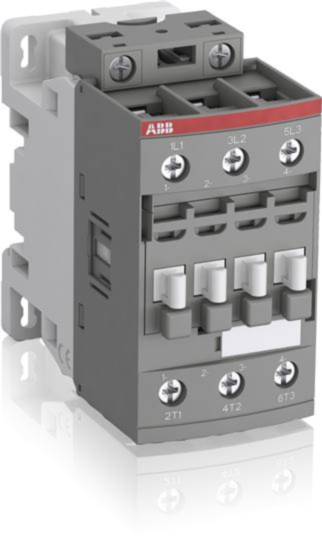

1SBL236001R2100 af26z-30-00-21 11kw/26 amp 24-60v 50/60hz-dc ABB Contactor
MPN: 1SBL236001R2100
Alt. SKU: AF26Z-30-00-21
Special Price
£104.27
£86.89
Regular Price
£160.42
Why Choose the AF26Z-30-00-21 [1SBL236001R2100]
The AF26Z-30-00-21 is a 3-pole contactor rated for up to 690 V IEC or 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 11 kW at 400 V AC (AC-3) or 15 hp at 480 V UL, and switch power circuits up to 45 A (AC-1) or 45 A UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 24-60 V AC (50/60 Hz) and 20-60 V DC, accommodating significant voltage fluctuations to reduce panel energy consumption and maintain reliable operation in unstable supply conditions. Integrated surge protection enhances durability, while the compact block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive range of compatible accessories.
Technical Specification
- Type: 3-pole contactor with screw terminals for motor and power circuit control.
- Rated Operational Voltage: Main circuit up to 690 V IEC / 600 V UL.
- Current Ratings: 45 A AC-1 (general use), 26 A AC-3 at 400 V, and 45 A DC-1 (various voltages and pole configurations).
- Contact Configuration: 3 normally open (NO) main contacts, no auxiliary contacts.
- Insulation Voltage: 690 V per IEC 60947-4-1, 600 V per UL/CSA standards.
- Impulse Withstand Voltage: 6 kV.
- Degree of Protection: IP20 for both coil and main terminals.
- Terminal Type and Capacity: Screw terminals; main circuit accepts 1.5–10 mm² flexible and 2.5–10 mm² rigid conductors.
- Mechanical Durability: Maximum mechanical switching frequency of 3600 cycles per hour.
- Mounting: Suitable for TH35-15 and TH35-7.5 DIN rails or fixing with 2 × M4 screws.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor capacity that the AF26Z-30-00-21 can control?
The AF26Z-30-00-21 can control motors up to 11 kW at 400 V AC (AC-3) or 15 hp at 480 V UL.
What is the current rating for power circuits with this contactor?
The contactor can switch power circuits up to 45 A (AC-1) or 45 A UL general use.
What is the control voltage range for the AF26Z-30-00-21?
The control voltage range is 24-60 V AC (50/60 Hz) and 20-60 V DC.
What type of terminals does the AF26Z-30-00-21 have?
The contactor features screw terminals that accept 1.5–10 mm² flexible and 2.5–10 mm² rigid conductors.
What is the degree of protection for the AF26Z-30-00-21?
The degree of protection is IP20 for both coil and main terminals.
How can the AF26Z-30-00-21 be mounted?
The contactor is suitable for mounting on TH35-15 and TH35-7.5 DIN rails or can be fixed with 2 × M4 screws.
What standards does the AF26Z-30-00-21 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL236001R2100 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF26Z-30-00-21 |
| KW Rating | 11kW |
| Inbuilt Aux | None |
| Barcode | 3471523114111 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
