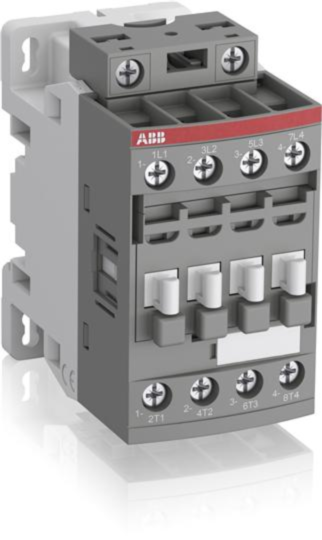

1SBL177201R1400 af16-40-00-14 7.5kw/16 amp 250-500v 50/60hz dc ABB Contactor
MPN: 1SBL177201R1400
Alt. SKU: AF16-40-00-14
Special Price
£55.36
£46.13
Regular Price
£85.16
Why Choose the AF16-40-00-14 [1SBL177201R1400]
The AF16-40-00-14 is a 4-pole contactor rated for 690 V IEC and 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 7.5 kW at 400 V AC (AC-3) and switch power circuits up to 30 A (AC-1) or 30 A UL general use. Utilising AF technology, this contactor supports a broad control voltage range (250–500 V, 50/60 Hz and DC), accommodating significant voltage fluctuations, minimising panel energy consumption, and ensuring reliable operation in unstable supply conditions. Integrated surge protection enhances durability while maintaining a compact footprint. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive range of compatible accessories, offering flexible installation options for diverse industrial applications.
Technical Specification
- Function: 4-pole contactor for motor control up to 7.5 kW / 400 V AC (AC-3) and power switching up to 30 A (AC-1).
- Rated Operational Voltage: Main circuit 690 V IEC, 600 V UL/CSA.
- Current Ratings: AC-1 30 A (690 V), AC-3 18 A (415 V), UL general use 30 A (600 V).
- Contact Configuration: 4 normally open (NO) main contacts, no auxiliary contacts.
- Insulation and Impulse Withstand Voltage: Rated insulation voltage 690 V IEC, 600 V UL; impulse withstand voltage 6 kV.
- Degree of Protection (IP): IP20 for coil and main terminals.
- Terminal Type and Size: Screw terminals; main circuit accommodates flexible ferrules 0.75 to 6 mm² and rigid cables 1 to 6 mm².
- Mechanical Durability: Up to 3600 mechanical switching cycles per hour.
- Mounting: DIN rail TH35-15 or TH35-7.5; also screw mounting with M4 screws.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF16-40-00-14 contactor?
The AF16-40-00-14 contactor can control motors up to 7.5 kW at 400 V AC (AC-3).
What is the rated operational voltage for the AF16-40-00-14?
The rated operational voltage is 690 V IEC and 600 V UL/CSA.
What type of terminals does the AF16-40-00-14 feature?
The contactor has screw terminals that accommodate flexible ferrules from 0.75 to 6 mm² and rigid cables from 1 to 6 mm².
How can the AF16-40-00-14 be mounted?
The contactor can be mounted on a DIN rail TH35-15 or TH35-7.5, or via screw mounting with M4 screws.
What is the degree of protection for the AF16-40-00-14?
The degree of protection is IP20 for the coil and main terminals.
What is the mechanical durability of the AF16-40-00-14 contactor?
The contactor has a mechanical durability of up to 3600 switching cycles per hour.
What standards and approvals does the AF16-40-00-14 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL177201R1400 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF16-40-00-14 |
| KW Rating | 7.5kW |
| Inbuilt Aux | 4 N/O |
| Barcode | 3471523115149 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
