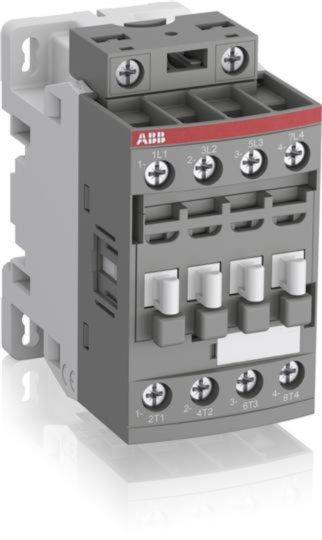

1SBL176201R2300 af16z-40-00 7.5kw/16 amp 100-250v 50/60hz dc ABB Contactor
MPN: 1SBL176201R2300
Alt. SKU: AF16Z-40-00-23
Special Price
£92.72
£77.27
Regular Price
£142.64
Why Choose the AF16Z-40-00-23 [1SBL176201R2300]
The AF16Z-40-00-23 is a 4-pole contactor rated for 690 V IEC and 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 7.5 kW at 400 V AC (AC-3) and switch power circuits up to 30 A (AC-1) or 30 A UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 100-250 V AC/DC at 50/60 Hz, accommodating significant voltage fluctuations while minimising panel energy consumption and ensuring reliable operation in unstable supply conditions. Integrated surge protection enhances durability within a compact footprint. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive selection of compatible accessories, providing flexibility for diverse industrial control applications.
Technical Specification
- Function: 4-pole contactor for motor control up to 7.5 kW at 400 V AC (AC-3), suitable for power circuits up to 30 A (AC-1) and general UL use up to 30 A.
- Voltage Ratings: Rated operational voltage up to 690 V IEC / 600 V UL.
- Current Ratings: AC-1 rated operational current 30 A at 690 V; AC-3 rated operational current up to 18 A at 400 V.
- Contact Configuration: 4 NO main contacts, no auxiliary contacts included.
- Insulation and Impulse Withstand Voltage: Rated insulation voltage 690 V IEC, 600 V UL; impulse withstand voltage 6 kV.
- Protection Rating: IP20 for coil and main terminals.
- Terminal Type and Capacity: Screw terminals; main circuit flexible ferrule 0.75–6 mm², rigid wire up to 6 mm²; control circuit flexible ferrule 0.75–2.5 mm², rigid wire up to 2.5 mm².
- Mechanical Durability: Maximum mechanical switching frequency 3600 cycles per hour.
- Mounting: Fits on standard DIN rails TH35-15 and TH35-7.5 or can be mounted with 2 x M4 screws.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF16Z-40-00-23 contactor?
The AF16Z-40-00-23 contactor can control motors up to 7.5 kW at 400 V AC (AC-3).
What is the rated operational voltage for this contactor?
The rated operational voltage is up to 690 V IEC or 600 V UL.
What type of terminals does the AF16Z-40-00-23 contactor use?
This contactor uses screw terminals for connection.
What is the protection rating of the AF16Z-40-00-23?
The protection rating is IP20 for coil and main terminals.
How can the AF16Z-40-00-23 contactor be mounted?
It can be mounted on standard DIN rails TH35-15 and TH35-7.5 or with 2 x M4 screws.
What is the maximum mechanical switching frequency of this contactor?
The maximum mechanical switching frequency is 3600 cycles per hour.
What is the cable capacity for the terminals?
The main circuit can accommodate flexible ferrule cables from 0.75–6 mm² and rigid wire up to 6 mm²; the control circuit accepts flexible ferrule cables from 0.75–2.5 mm² and rigid wire up to 2.5 mm².
| Manufacturer Part Number | 1SBL176201R2300 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF16Z-40-00-23 |
| KW Rating | 7.5kW |
| Inbuilt Aux | 4 N/O |
| Barcode | 3471523115934 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
