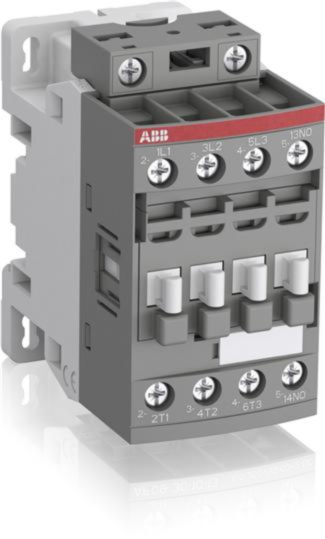

1SBL176001R2210 af16z-30-10-22 7.5kw/16 amp 48-130v 50/60hz-dc ABB Contactor
MPN: 1SBL176001R2210
Alt. SKU: AF16Z-30-10-22
Special Price
£90.18
£75.15
Regular Price
£138.73
Why Choose the AF16Z-30-10-22 [1SBL176001R2210]
The AF16Z-30-10-22 is a 3-pole contactor rated for 690 V IEC or 600 V UL applications, featuring one built-in auxiliary contact and screw terminals. It is designed to control motors up to 7.5 kW at 400 V AC (AC-3 duty) or 10 hp at 480 V UL, and switch power circuits up to 30 A (AC-1) or 30 A UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 48–130 V AC/DC at 50/60 Hz, accommodating significant voltage fluctuations to reduce panel energy consumption and maintain reliable operation in unstable supply conditions. Integrated surge protection enhances durability while the compact block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive range of accessories, ensuring flexible installation and maintenance.
Technical Specification
- Function: 3-pole contactor with 1 built-in auxiliary contact, controls motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL.
- Voltage Rating: Main circuit rated operational voltage 690 V IEC / 600 V UL; auxiliary circuit 690 V.
- Current Rating: Rated operational current AC-1 30 A at 690 V; AC-3 18 A at 415 V; UL general use 30 A.
- Contact Configuration: 3 normally open main contacts (3 NO), 1 auxiliary normally open contact (1 NO).
- Insulation and Impulse Withstand: Rated insulation voltage 690 V IEC, 600 V UL; rated impulse voltage 6 kV.
- Degree of Protection: IP20 for main, auxiliary and coil terminals (IEC 60529).
- Terminal Type and Capacity: Screw terminals; main circuit flexible 0.75–6 mm², rigid 1–6 mm²; auxiliary and control circuits flexible 0.75–2.5 mm², rigid 1–2.5 mm².
- Mechanical Durability: Maximum mechanical switching frequency 3600 cycles per hour; mounting on TH35 DIN rails or by 2 x M4 screws.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor power that the AF16Z-30-10-22 can control?
The AF16Z-30-10-22 can control motors up to 7.5 kW at 400 V AC (AC-3) or 10 hp at 480 V UL.
What is the current rating for the AF16Z-30-10-22?
The rated operational current is 30 A for AC-1 at 690 V and 18 A for AC-3 at 415 V.
What type of terminals does the AF16Z-30-10-22 have?
The contactor features screw terminals for both the main and auxiliary circuits.
What is the degree of protection for the AF16Z-30-10-22?
The degree of protection is IP20 for main, auxiliary, and coil terminals.
Can the AF16Z-30-10-22 be mounted on DIN rails?
Yes, the contactor can be mounted on TH35 DIN rails or by using 2 x M4 screws.
What is the control voltage range for the AF16Z-30-10-22?
The contactor has a control voltage range of 48-130 V at 50/60 Hz and DC.
What standards and approvals does the AF16Z-30-10-22 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL176001R2210 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF16Z-30-10-22 |
| KW Rating | 7.5kW |
| Inbuilt Aux | 1 N/O |
| Barcode | 3471523113824 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
