1SBL156001R2301 af12z-30-01-23 5.5kw/12 amp 100-250v 50/60hz-dc ABB Contactor
MPN: 1SBL156001R2301
Alt. SKU: AF12Z-30-01-23
Special Price
£69.19
£57.66
Regular Price
£106.44
Why Choose the AF12Z-30-01-23 [1SBL156001R2301]

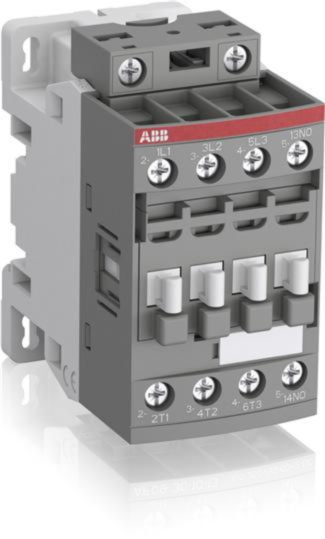

The AF12Z-30-01-23 is a 3-pole contactor rated for up to 690 V IEC or 600 V UL applications, featuring one built-in auxiliary contact and screw terminal connections. It is suitable for controlling motors up to 5.5 kW at 400 V AC (AC-3) or 7.5 hp at 480 V UL, and can switch power circuits up to 28 A (AC-1) or 28 A UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 100-250 V AC/DC at 50/60 Hz, accommodating significant voltage fluctuations and enhancing energy efficiency within control panels. Integrated surge protection ensures reliable operation in unstable network conditions. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive selection of accessories, providing a versatile and compact solution for industrial motor control.
Technical Specification
- Function: 3-pole contactor with 1 built-in auxiliary contact (1 NC) for motor control and power circuit switching.
- Rated Operational Voltage: Main and auxiliary circuits up to 690 V AC / 600 V UL.
- Current Ratings: Switching power circuits up to 28 A AC-1 / UL general use; motor control up to 5.5 kW @ 400 V AC (AC-3) / 7.5 kW UL; 28 A continuous current.
- Control Voltage Range: Wide range 100–250 V AC/DC (50/60 Hz) with built-in surge protection.
- Contact Configuration: 3 NO main contacts, 1 NC auxiliary contact, screw terminals.
- Protection Rating: IP20 for main, auxiliary and coil terminals (IEC 60529).
- Terminal Type and Capacity: Screw terminals; main circuit accepts flexible ferrules 0.75 to 6 mm², rigid wires 1 to 6 mm²; auxiliary and control circuits 0.75 to 2.5 mm².
- Insulation and Impulse Voltage: Rated insulation voltage 690 V IEC, 600 V UL; impulse withstand voltage 6 kV.
- Mechanical Durability: Maximum mechanical switching frequency 3600 cycles/hour; electrical switching frequency up to 1200 cycles/hour (AC-3).
- Mounting: DIN rail (TH35-15 and TH35-7.5) or panel mounting with 2 x M4 screws (not supplied).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF12Z-30-01-23 contactor?
The AF12Z-30-01-23 can control motors up to 5.5 kW at 400 V AC (AC-3) or 7.5 hp at 480 V UL.
What is the control voltage range for the AF12Z-30-01-23?
The control voltage range is 100–250 V AC/DC (50/60 Hz).
How is the AF12Z-30-01-23 mounted?
The contactor can be mounted on a DIN rail (TH35-15 and TH35-7.5) or panel mounted using 2 x M4 screws (not supplied).
What is the protection rating of the AF12Z-30-01-23?
The protection rating is IP20 for main, auxiliary, and coil terminals.
What types of terminals does the AF12Z-30-01-23 have?
The contactor features screw terminals, with main circuit accepting flexible ferrules of 0.75 to 6 mm² and rigid wires of 1 to 6 mm².
What is the mechanical durability of the AF12Z-30-01-23?
The maximum mechanical switching frequency is 3600 cycles/hour, and the electrical switching frequency can reach up to 1200 cycles/hour (AC-3).
What standards does the AF12Z-30-01-23 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL156001R2301 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF12Z-30-01-23 |
| KW Rating | 5.5kW |
| Inbuilt Aux | 1 N/C |
| Barcode | 3471523113633 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
