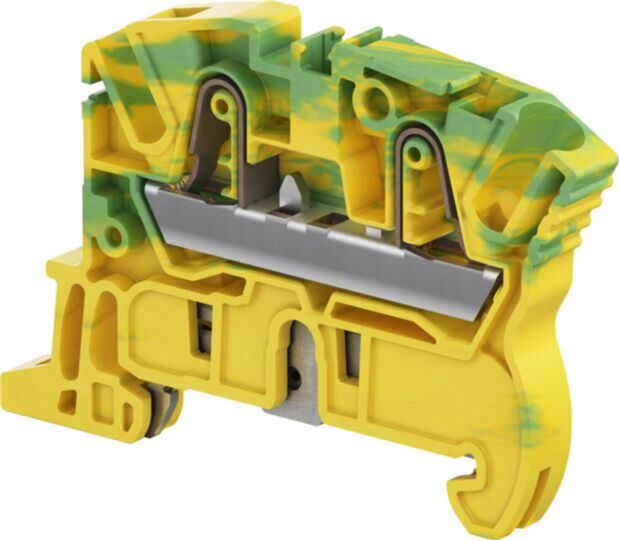

ZK4-PE - 4mm PUSH IN EARTH TERMINAL
MPN: 1SNK706150R0000
Alt. SKU: ZK4-PE
Special Price
£2.04
£1.70
Regular Price
£3.40
ZK4-PE - 4mm PUSH IN EARTH TERMINAL is available to buy in increments of 1
Why Choose Earth Terminal Blocks?
Earth terminal blocks ensure safe and reliable grounding in electrical enclosures, protecting equipment and personnel. They are essential for meeting grounding regulations in control panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Ground
- Product type: PI-Spring Terminal Block
- Colour: Green & Yellow
- Pitch: 6 mm [ .236 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: 2.9 mm Dia.
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Product Weight :: 12.6 g [ .496 oz ]
- Termination Method to Wire & Cable :: Spring Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 62.7 mm [ 2.468 in ]
- Product Length :: 41.2 mm [ 1.622 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG):: 26 - 12
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG):: 26 - 12
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG):: 26 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²):: .5 - 6
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG):: 26 - 18
- Wire Stripping Length :: 12.5 mm [ .492 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth :: 41.2 mm [ 1.622 in ]
- Wire Size (AWG):: 10
- Wire Size (mm²):: 4
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK706150R0000 |
|---|---|
| Height | 62.7mm |
| Width | 41.2mm |
| Depth | 41.2mm |
| Manufacturer | Entrelec |
| Packed Quantity | 1 |
| Barcode | 3472597061509 |
| Terminal Type | Earth |
| Terminal Size | 4mm |
| Colour | Yellow/Green |
| Type of electric connection | Spring connection |
| Alternative Product SKU | ZK4-PE |
