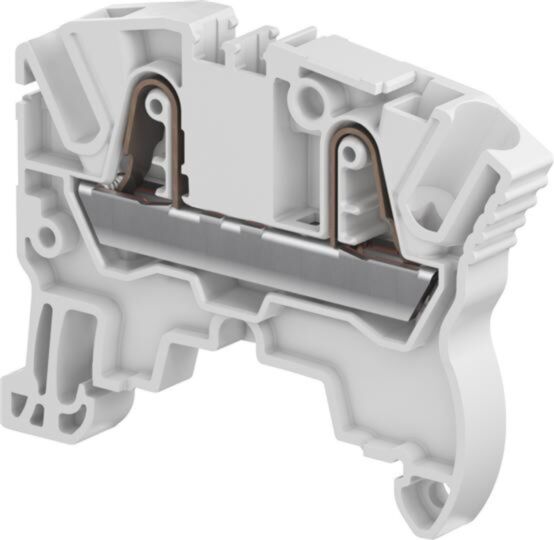

ZK4 - 4mm PUSH IN TERMINAL GREY ZK4
MPN: 1SNK706010R0000
Alt. SKU: ZK4
Special Price
£0.6964
£0.5803
Regular Price
£1.16
ZK4 - 4mm PUSH IN TERMINAL GREY ZK4 is available to buy in increments of 50
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: PI-Spring Terminal Block
- Colour: Grey
- Pitch: 6 mm [ .236 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: 2.9 mm Dia.
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Current Rating (CSA) (A):: 30
- Current Rating (UL) (A):: 30
- Current Rating (IEC) (A):: 32
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Power Loss (W):: 1
- Operating Voltage (VAC):: 600
- Product Weight :: 7.9 g [ .311 oz ]
- Termination Method to Wire & Cable :: Spring Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 55.3 mm [ 2.177 in ]
- Product Length :: 41.1 mm [ 1.618 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG):: 26 - 12
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG):: 26 - 12
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG):: 26 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²):: .5 - 6
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG):: 26 - 18
- Wire Stripping Length :: 12.5 mm [ .492 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth :: 41.1 mm [ 1.618 in ]
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²):: .5 - 1
- Wire Size (AWG):: 10
- Wire Size (mm²):: 4
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK706010R0000 |
|---|---|
| Height | 55.3mm |
| Width | 41.1mm |
| Depth | 41.1mm |
| Manufacturer | Entrelec |
| Packed Quantity | 50 |
| Barcode | 3472597060106 |
| Terminal Type | Feed-through |
| Terminal Size | 4mm |
| Colour | Grey |
| Type of electric connection | Spring connection |
| Alternative Product SKU | ZK4 |
