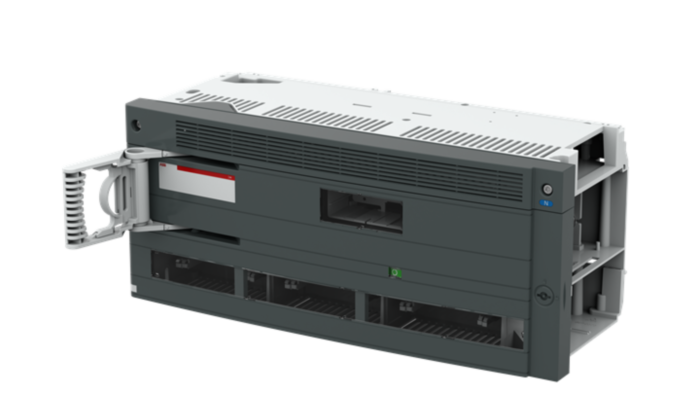

XRG400BS-185/10-4P Switch disconnector fuse
MPN: 1SEP204488R3700
Alt. SKU: XRG400BS-185/10-4P
Special Price
£1,704.85
£1,420.71
Regular Price
£2,622.85
Why Choose the XRG400BS-185/10-4P [1SEP204488R3700]
Four-pole switch disconnector fuse designed for use with busbars spaced at 185mm centres and up to 10mm thickness. This unit provides reliable isolation and overcurrent protection, ensuring compatibility with standard busbar configurations in industrial and commercial electrical installations.
Technical Specification
- Function: Four pole switch disconnector fuse for busbar use.
- Rated Voltage (U r ): 500 V AC.
- Rated Operational Current (I e ): 400 A at 500 V AC (AC-22B).
- Number of Poles: 4 poles.
- Busbar Dimensions: 185 mm phase distance, 10 mm thickness.
- Rated Insulation Voltage (U i ): 1 kV.
- Rated Impulse Withstand Voltage (U imp ): 8 kV.
- Degree of Protection: IP41 front (IEC 60529).
- Terminal Type: Bolt connection.
- Standards Compliance: IEC 60947-3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch disconnector fuse?
The rated operational current is 400 A at 500 V AC (AC-22B).
What are the busbar dimensions compatible with this product?
The busbar dimensions are 185 mm phase distance and 10 mm thickness.
What is the degree of protection for this switch disconnector fuse?
The degree of protection is IP41 front according to IEC 60529.
How many poles does this switch disconnector fuse have?
This product has 4 poles.
What is the rated insulation voltage?
The rated insulation voltage is 1 kV.
What standards does this product comply with?
This product complies with IEC 60947-3. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SEP204488R3700 |
|---|---|
| Packed Quantity | 1 |
| Height | 250mm |
| Width | 590mm |
| Depth | 335mm |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | XRG400BS-185/10-4P |
| Barcode | 3800161652097 |
