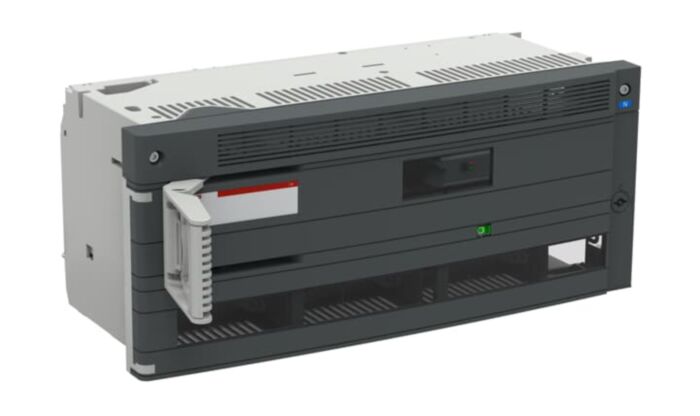

XRG3-185/10-4P-EFM Switch disconnector fuse
MPN: 1SEP204483R3701
Alt. SKU: XRG3-185/10-4P-EFM
Special Price
£3,097.28
£2,581.07
Regular Price
£4,765.06
Why Choose the XRG3-185/10-4P-EFM [1SEP204483R3701]
Four-pole switch disconnector fuse designed for 185mm busbar centres and 10mm busbar thickness, featuring integrated electronic fuse monitoring for enhanced operational safety and fault detection.
Technical Specification
- Function: Four pole switch disconnector fuse with electronic fuse monitoring.
- Rated Voltage: 500 V AC.
- Rated Current: 630 A.
- Contact Configuration: 4 poles (4P).
- Rated Insulation Voltage: 1 kV.
- Rated Impulse Withstand Voltage: 8 kV.
- Degree of Protection: Front IP41 (IEC 60529).
- Busbar Accommodation: 10 mm thickness, 185 mm spacing between phases.
- Terminal Type: Bolt connection.
- Standards Compliance: IEC 60947-3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated voltage of the switch disconnector fuse?
The rated voltage is 500 V AC.
What is the rated current for this product?
The rated current is 630 A.
What is the contact configuration of the switch disconnector fuse?
The contact configuration is 4 poles (4P).
What are the busbar accommodation specifications?
The busbar thickness is 10 mm with a spacing of 185 mm between phases.
What is the degree of protection for this product?
The degree of protection is Front IP41 (IEC 60529).
What type of terminal connection does this product use?
The terminal type is bolt connection.
What standards does this product comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SEP204483R3701 |
|---|---|
| Packed Quantity | 1 |
| Height | 250mm |
| Width | 590mm |
| Depth | 335mm |
| HS Code | 85363090 |
| Number of Poles | 4 Pole |
| Country of Manufacture | Bulgaria |
| Manufacturer | ABB |
| Alternative Product SKU | XRG3-185/10-4P-EFM |
| Barcode | 3800161651700 |
